Seed is placed in a V-shaped slit directly in contact with the soil for maximum germination rate

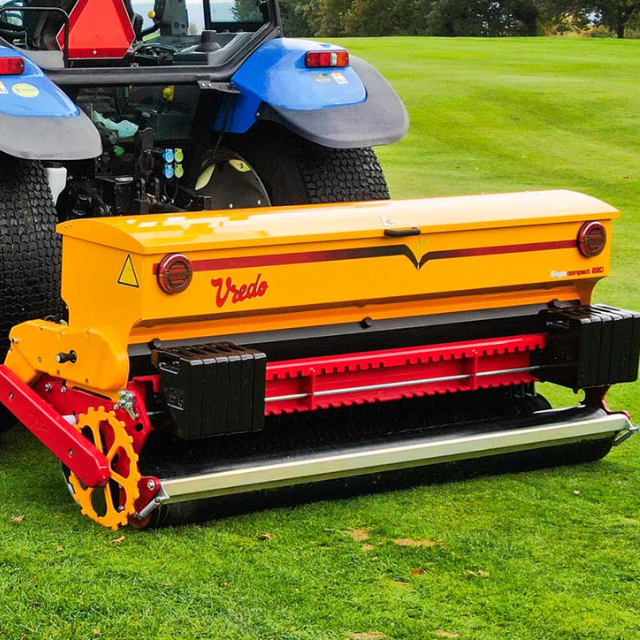

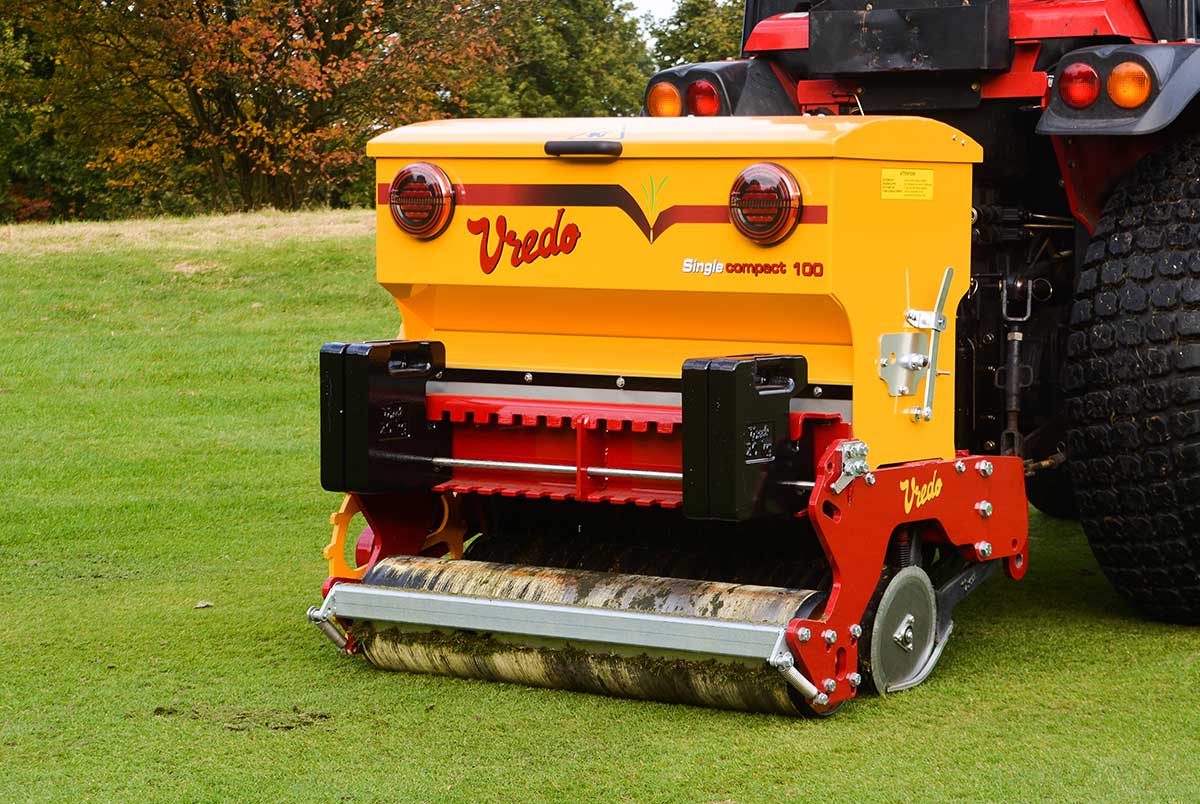

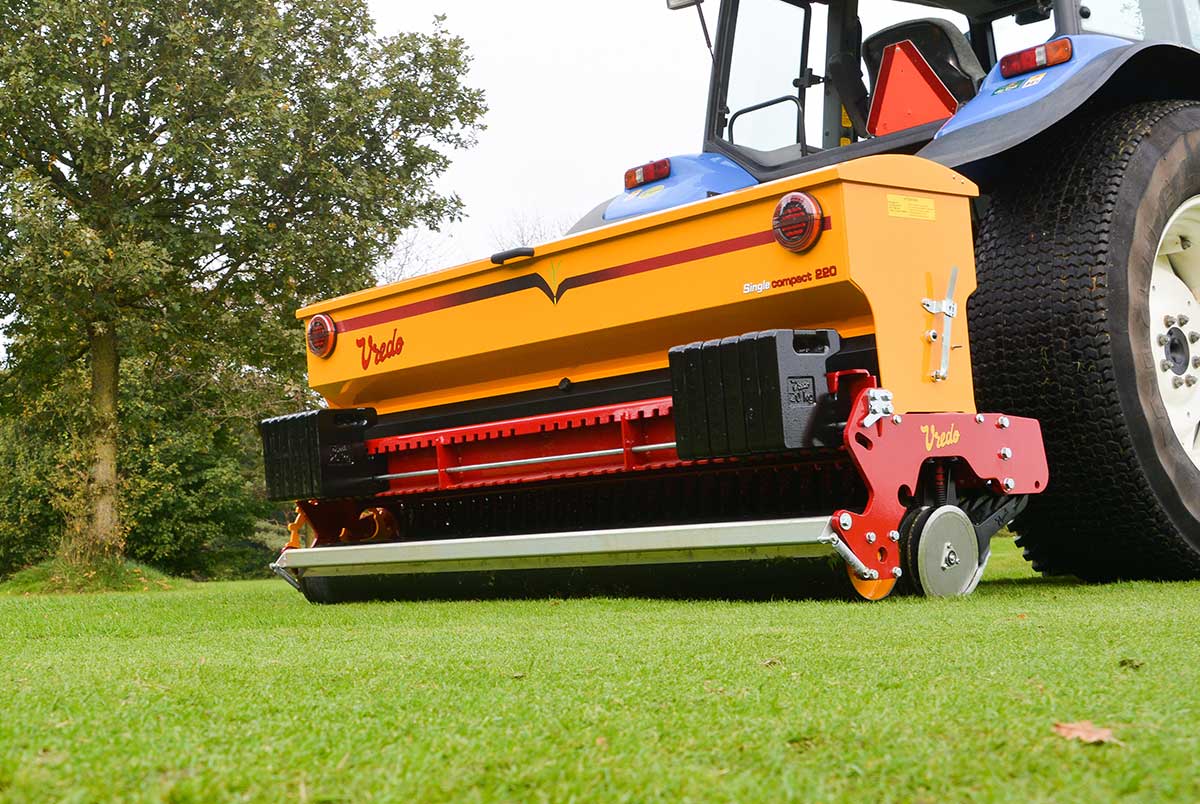

The Vredo Single Compact Series is an accurate and efficient range of disc seeders designed for overseeding golf greens and tees, sports pitches and other amenity grass. Seed is placed in a V-shaped slit at a pre-set depth of between 5mm and 25mm deep, directly in contact with the soil for maximum germination rate. The slits are then closed by a compaction roller and a level surface is re-established.
There are 4 different widths available to suit tractor overlap, all 3-point mounted behind compact tractors.
Available Models
Vredo contributes to the sustainability of agriculture, livestock farming, and lawn maintenance, maximizing results through fertilization and seeding solutions. Our self-propelled vehicles, sod fertilizers, and overseeders for both the agricultural sector and green maintenance are renowned for their outstanding performance, durable quality, and effectiveness. Not only operational but also the resulting outcome.
Thanks to optimal technology, manure is injected into the soil with the greatest precision, ensuring optimal seeding and overseeding of pastures, sports fields, golf courses, and playgrounds, with the correct amounts of grass, clover, and herb mixtures. Sustainable, cost-effective, and with maximum yields.
This inspires us every day to collaborate with farmers, contractors, greenkeepers, and landscapers, supporting each other and working together towards a better future for everyone.
Centaur Asia Pacific is the distributor for Campey Turf Care Systems range of products in Hong Kong, Macau, Singapore and Brunei.
Updated on: 23 July 2024
Model DZ5 100(T)
GPS working width | 94.5cm |
Transport width | 115cm |
Row spacing | 0.35cm |
Volume of seed hopper | 165 litre |
Weight | 540kg |
Recommended 20kg weights | 10 (740) |
Tractor power | 30HP |
Depth adjustment | Top link / drawbar |
Dimensions lxwxh (cm) | 123.4 x 115.0 x 108.4 |
Seed dosage | Stepless 3 to 190 kg/ha |
Disc diameter | Ø 250 mm |
Element | Progressively sprung 0-20 mm sowing depth |
Turf guard | Adjustable |
Pressure roller | Ø 220 mm with self-adjusting scraper |
Calibrating | Calibration table newly improved calibration tray section |
Model DZ5 140(T)
GPS working width | 140cm |
Transport width | 157cm |
Row spacing | 0.35cm |
Volume of seed hopper | 235 litre |
Weight | 693kg |
Recommended 20kg weights | 14 (973) |
Tractor power | 30/40HP |
Depth adjustment | Top link / drawbar |
Dimensions lxwxh (cm) | 123.4 x 157.0 x 108.4 |
Seed dosage | Stepless 3 to 190 kg/ha |
Disc diameter | Ø 250 mm |
Element | Progressively sprung 0-20 mm sowing depth |
Turf guard | Adjustable |
Pressure roller | Ø 220 mm with self-adjusting scraper |
Calibrating | Calibration table newly improved calibration tray section |
Model DZ5 180(T)
GPS working width | 182cm |
Transport width | 199cm |
Row spacing | 0.35cm |
Volume of seed hopper | 303 litre |
Weight | 846kg |
Recommended 20kg weights | 18 (1,206) |
Tractor power | 40/50HP |
Depth adjustment | Top link / drawbar |
Dimensions lxwxh (cm) | 123.4 x 199.0 x 108.4 |
Seed dosage | Stepless 3 to 190 kg/ha |
Disc diameter | Ø 250 mm |
Element | Progressively sprung 0-20 mm sowing depth |
Turf guard | Adjustable |
Pressure roller | Ø 220 mm with self-adjusting scraper |
Calibrating | Calibration table newly improved calibration tray section |
Model DZ5 220(T)
GPS working width | 220cm |
Transport width | 241cm |
Row spacing | 0.70cm |
Volume of seed hopper | 375 litre |
Weight | 710kg |
Recommended 20kg weights | 12 (850) |
Tractor power | 50HP |
Depth adjustment | Top link / drawbar |
Dimensions lxwxh (cm) | 105.5 x 241.0 x 108.5 |
Seed dosage | Stepless 3 to 190 kg/ha |
Disc diameter | Ø 250 mm |
Element | Progressively sprung 0-20 mm sowing depth |
Turf guard | Adjustable |
Pressure roller | Ø 220 mm with self-adjusting scraper |
Calibrating | Calibration table newly improved calibration tray section |
