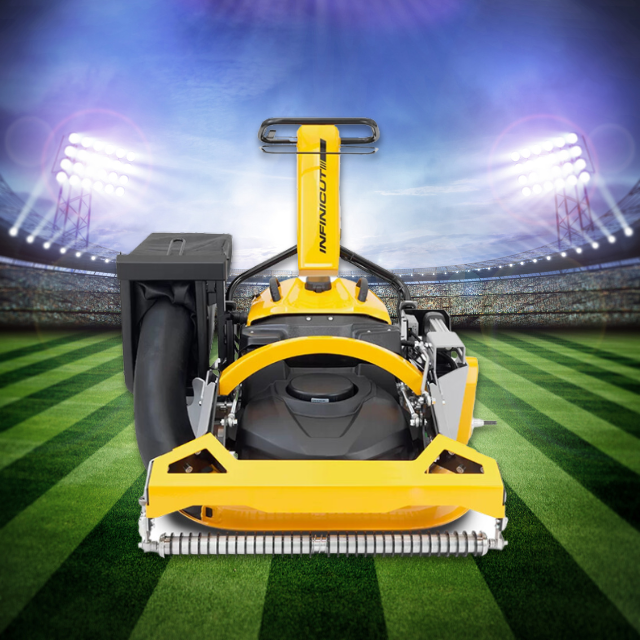

ATT INFINICUT SM 34" Pedestrian Rotary Mower

ATT INFINICUT SM 34 ATT INFINICUT SM 34

ATT INFINICUT SM 34" Pedestrian Rotary Mower

SM ROTARY MOWER

FEATURES

  • Leading-edge cut quality
  • Innovative debris collection
  • Lithium battery power
  • Simple to manoeuvre
  • Transportation kit with detachable wheels
  • 34” width



DESIGN

  • The INFINICUT® SM34 Rotary Mower is designed to elevate professional rotary mower performance to a new level. Simple to manoeuvre and with a design emphasis on cut quality and consistency, the INFINICUT® SM34 Rotary is not only environmentally friendly but is very much built fit for purpose with the user in mind.
  • Substantial 2.5Kw blade motor to power through the toughest of conditions.
  • High lift blade profile ensures maximum efficiency in grass and post-match debris collection.
  • 70Ltr grass basket removal and attachment is simple and effective.
  • Transport kit ensures the rear roller traction drums remain damage free when transporting between venues.

CONTROLS

  • Operational parameters programmable via BLE InfiniApp™.
  • HOC 15mm to 50mm, adjustable via Electronic Actuator – user programmable through InfiniApp™.
  • Ability to parallel rear roller to deck.
  • Mowing speed – 0-4mph
    Transport speed – 0-6mph
    Cruise Control is via regenerative braking
  • Blade Safety Braking – Yes
    Parking Brake – Yes
  • Traction Drive – 1kw Continuous DC Motor
    Blade Drive – 2.5kw Continuous DC Motor
    Differential – Fully accessible

POWER

  • Battery 48V LiFePO 4, 30Ah and 60Ah. Rapid Swap Out.

APPLICATIONS:

  • FOOTBALL
  • BASEBALL
  • RUGBY
  • SPORTSGROUNDS
  • SCHOOLS & UNIVERSITIES



About Infinicut

THE PERFECT CUT EVERY TIME

Manufacture

  • Our manufacturing capability is unrivalled in our industry. We use the latest cutting-edge production techniques to ensure consistent manufacturability of our products. You can be confident that anything displaying the INFINICUT® badge is expertly produced.

Design

  • At INFINICUT® we are strong advocates of ensuring we have a deep understanding of the Turf Professionals’ requirements before we embark on any design project. We combine this knowledge with our engineering expertise to offer turf professionals equipment that is  fit-for-purpose, durable and innovative.

Efficiency

  • INFINICUT® Professional Sports Turf products are considered to be the most technically innovative in our industry. The majority of our products are “smart” Lithium powered. This is not only a testament of our commitment to utilizing the latest technology, but also a commitment to providing turf managers with the most efficient solutions that are environmentally friendly and enjoyable to use.







Centaur Asia Pacific is the distributor for Cub Cadet range of products in Hong Kong, Macau, Singapore, Malaysia, and Vietnam.

Updated on: 22 June 2023

Specifications

OPERATOR CONTROL

  • Compliance - EC Compliant
  • Operational parameters - Programmable via BLE InfiniApp™
  • Grass basket - 70Lt

TRACTION & CONTROL

  • System voltage - 48V
  • Traction drive - 1kW Continuous DC Motor
  • Blade drive - 2.5kW Continuous DC Motor
  • Differential - Fully accessible
  • Cruise control - Via regenerative braking

POWER

  • Power is delivered by a lithium power source. Available in either 1.4kkWh or 2.8kkWh to drive the traction unit and the Deck’s DC brushless motor. They can be quickly swapped, in-field if necessary, to suit the working environment.
  • Battery module option: (removable) 30Ah or 60Ah Lithium
  • Battery charger Delta Q: Approximate recharge time (30Ah) - 4hr / Approximate recharge time (60Ah) - 6hr
  • Engine generator option: (removable)

WEIGHT

Dry weight (incl. grass basket)

  • 30Ah = 164kg
  • 60Ah = 175kg

REAR TRACTION ROLLER PARALLEL

  • Ability to parallel rear roller to deck.

HOC

  • 15mm to 50mm - user programmable through InfiniApp™
  • Method of adjustment via Electronic Actuator

BRAKING

  • Blade safety braking - Yes
  • Parking brake - Yes

DETACHABLE WHEELS

  • The detachable wheels aid transportation over concrete approaches.

SPEED

  • Mowing - 0 - 4mph
  • Transport - 0 - 6mph

ACCESSORY EQUIPMENT

  • Front roller/Wheels options - Yes
  • Turf presenter - Turf Lifter System between Front Roller and Deck
  • Light kit - LED
  • Transport - Transport Wheel Kit
