Dakota Turf Tender

Dakota Turf Tender

Spread wet or dry material, meaning minimal passes, less visible wheel marks and quick operation

Designed to save time, eliminate waste and reduce operating costs

All Dakota’s spread wet or dry material, meaning minimal passes, less visible wheel marks and quick operation and all spinner package points are common with larger models, meaning only a small selection of parts to stock if you have two or more machines.

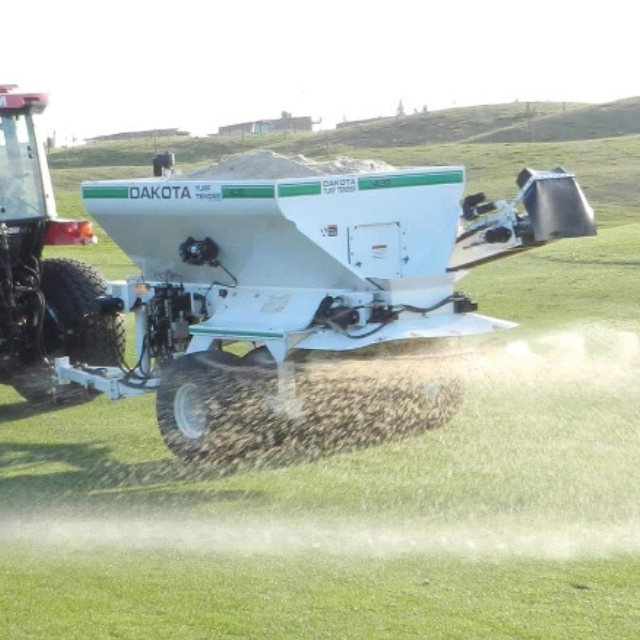

The Dakota Turf Tender range is specially designed for the fast transportation and application of topdressing. They will handle both wet and dry materials, allowing light to heavy dressing. Ideal for golf courses and sports fields.

Available Models

  • 410 Mounted
  • 410 Towed
  • 411 Towed
  • 412 Towed
  • 414 Towed
  • 420 Towed
  • 440 Towed

Options

Various optional extras available for the Dakota range

A front-mounted, floating Box Scraper is available for the 440 and 420 models, for creating layers of dressing during construction or renovation.

Automatic, hydraulic rear doors are available for all models.

Front-mounted stone/gravel chutes are available for 440 and 420 models. Rear stone/gravel chutes are available for 410 and 411 models.

The Dakota 440 Blender option is an adjustable, material mixing system to pre-mix material before discharge and is mounted on the front of the main hopper.

Rear-mounted cross conveyors are available for 410 and 411 models.


About Dakota

The history of Dakota Peat & Equipment is one of a company built with hard work and progressive principles. Our family-owned company has been providing high-quality products and services to clients for 40 years with the help of many dedicated employees along the way. By depending on feedback from their customers and building products to fit the consumers’ needs, Dakota has created a variety of brands and services across several industries including turf, golf, material hauling, and agriculture.

Environmental Stewardship Standards

DAKOTA’s Environmental Stewardship Standards (ESS) are principles to achieve generational environmental health and economic profitability while maintaining turf to the highest standards. DAKOTA's growing systems have proven to be solutions to attain these goals. The elements involved in this stewardship process are water, energy, soil management, and efficient use of inputs. DAKOTA ESS are the product of four decades of research and success in the turf industry.





Centaur Asia Pacific is the distributor for Campey Turf Care Systems in Hong Kong, Macau, Singapore and Brunei.

Updated on: 22 July 2024

Specifications

Dakota 410 Mounted – for John Deere, Toro and Jacobsen

Spreading width 3.5m – 13.0m variable
Hopper size 0.91m (W) x 1.93m (L) x 0.36m (deep)
Hopper load height 1.37m
Hopper capacity 0.65m³ (level) – 0.76m³ (heaped)
Weight (approx)
354kg
Options:
*Electric / hydraulic or manual controls
Hydraulic rear door shut-off
Rear mounted cross conveyor
Rear mounted stone/gravel chute
Parking stand
Vehicle requirements Hi-Flow hydraulics



410 Towed

Spreading width 3.5m – 13.0m (dependant on tractor oil flow)
Hopper size 0.91m (W) x 1.93m (L) x 0.36m (deep)
Hopper load height 1.27m
Hopper capacity 0.65m³ (level) – 0.76m³ (heaped)
Capacity with 15cm extension 0.91m³ (level) – 1.02m³ (heaped)
Weight (approx) 645kg approx
Tractor requirements
Vehicle of approx 20hp min with towing capability
Options:
Hydraulic rear door shut-off
Rear mounted cross conveyor / 15cm hopper ext.
Rear mounted stone / gravel chute
Electric / hydraulic or manual controls
Tyres
2 x Ultra Trac 26.5 x 14 x 12



411 Towed

Spreading width 3.5m – 13.0m (dependant on tractor oil flow)
Hopper size 0.91m (W) x 1.93m(L) x 0.36m (deep)
Hopper load height 1.27m
Hopper capacity
0.65m³ (level) – 0.76m³ (heaped)
Capacity with 28cm extension 1.14m³ (level) – 1.25m³ (heaped)
Overall length & width / weight 3.66m x 2.08m / 525kg
Tyres 4 x Ultra Trac 26.5 x 14 x 12
Tractor requirements 30hp
Options Electric / hydraulic or manual controls
Hydraulic rear door shut-off
Rear mounted cross conveyor.
28cm Hopper extension
Rear mounted stone/gravel chute



412 Towed

Spreading width 3.5m – 13.0m (dependant on tractor oil flow)
Hopper size 1.52m (W) x 1.93m (L) x 0.96m (deep)
Hopper load height 1.68m
Hopper capacity 1.53m³ (level) – 1.85m³ (heaped)
Weight (approx) 827kg (3549kg G.V.W.)
Overall length & width / weight 3.95m x 2.08m
Tyres 4 x Ultra Trac 26.5 x 14 x 12
Tractor requirements 35hp
Options
Hydraulic rear door shut-off
Electric / hydraulic or manual controls



414 Towed

Spreading width 3.5m – 13.0m (dependant on tractor oil flow)
Hopper size 1.78m (W) x 2.54m(L) x 1.00m (deep)
Hopper load height 2.00m
Hopper capacity 3.25m³ (level) – 3.82m³ (heaped)
Weight (approx) 1361kg ( 5,897kg G.V.W.)
Overall length & width 4.77m x 2.44m
Tyres 4 x Supa Trac tyres 33 x 20 x 16.1
Tractor requirements 40hp minimum
Options Hydraulic rear door shut-off



420 Towed

Spreading width 3.5m – 13.0m (dependant on tractor oil flow)
Hopper size 1.52m(W) x 1.93m(L) x 0.76m (Deep)
Hopper load height 1.68m
Hopper capacity 1.53m³ (level) – 1.85m³ (heaped)
Overall length & width / weight 4.36m x 2.08m / 1360kg
Side-arm conveyor 35cm wide. 120cm – 185cm discharge height
Tyres 4 x Ultra Trac 26.5 x 14 x 12
Tractor requirements 30hp minimum
Options: Hydraulic rear door shut-off
Front mounted stone / gravel chute
Front mounted box scraper

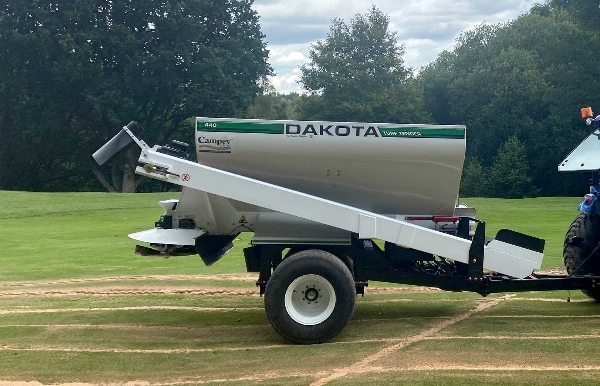

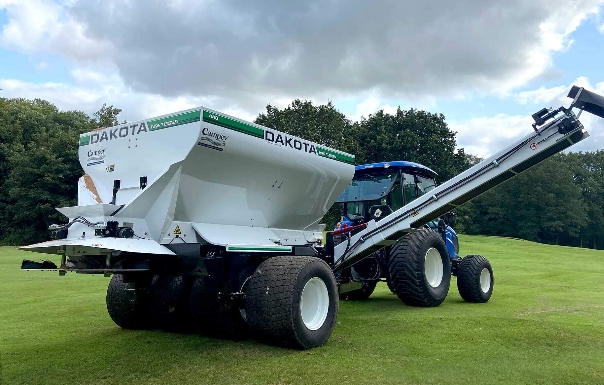

440 Towed

Spreading width 3.5m – 13.0m (dependant on tractor oil flow)
Hopper size 1.78m (W) x 2.54m(L) x 1.00m (Deep)
Hopper load height 2.00m
Hopper capacity 3.25m³ (level) – 3.82m³ (heaped)
Overall length & width / weight 4.77m x 2.44m / 1750kg
Side-arm conveyor
35cm wide. 120cm – 185cm discharge height.
Tyres 4 x Supa Trac tyres 33 x 20 x 16.1
Tractor requirements 40hp minimum
Options: Hydraulic rear door shut-off
Front mounted box scraper / Blender Option
Rear mounted stone/gravel chute
