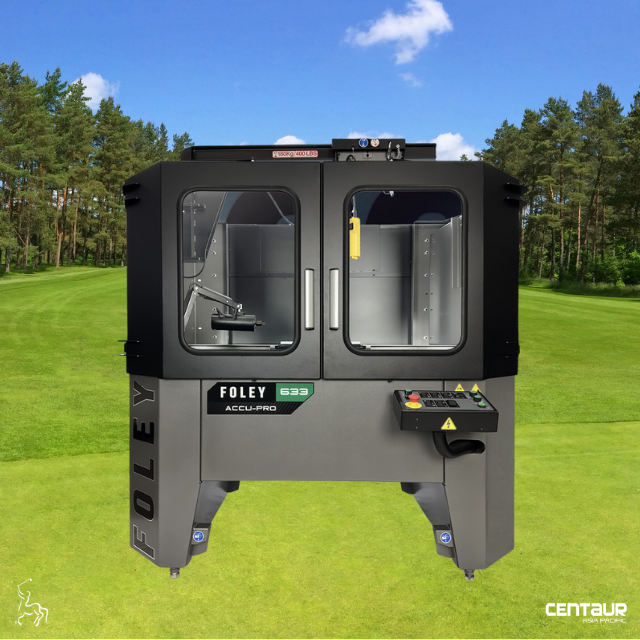

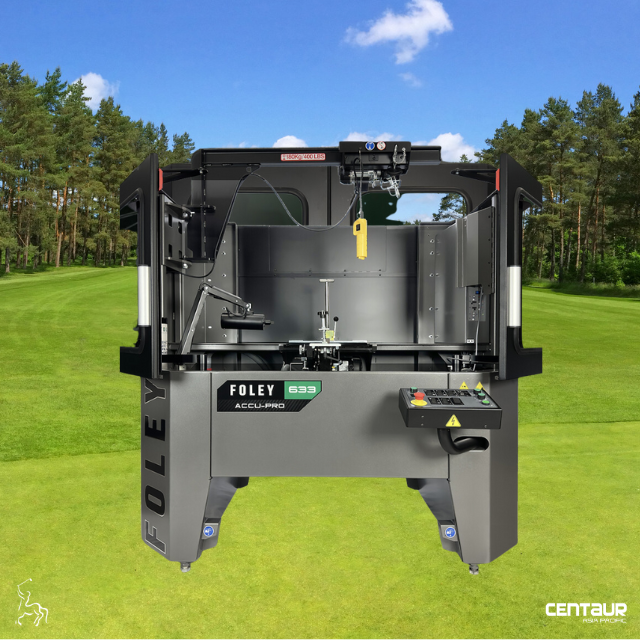

Foley 633 Accu-Pro Reel Grinder
Advantages & Benefits
- Capable of either spin or relief grind to meet your specific needs
- Save time using the patented hands-free auto-index relief grind
- Electrically inter-locked doors and Lexan safety glass to protect operator and bystanders
- Variable spin speed, traverse speed and relief torque for complete versatility
- Integrated vacuum system keeps work area clean
- The ACCU-Reel selector, front roller clamp, and cylinder height stop ensure proper reel positioning
- Vertical and horizontal adjuster ensures precise carriage position and taper removal
Features
- Spin Grind capable
- Auto Indexing hands-free Relief Grinding
- Electronically control Torque for relief
- Quick Reel placement - ACCU-Reel selector
- Cone/Taper Removal - Easy Alignment of Reel to Grinder (LED- Feedback (manual) Screen feedback - Optional AT3 package)
- Variable Speed Spin Drive motor (Articulating counter balanced)
- Variable Speed Belt Drive Traverse System
- 3 packs of Drive Adapters (male - 8, 9 and 11 tooth spline)
- Rear door with Safety interlock
- Front Safety door with Safety interlock
- Quick Change Grinding wheel
- ACCU-Touch 3 (AT3) with standard and custom programs - With end-of-cycle indicator light. (Optional)
- Dust collection - Vacuum system (Optional)
- Attached rear lift table (Optional)
- Overhead Boom (Optional)

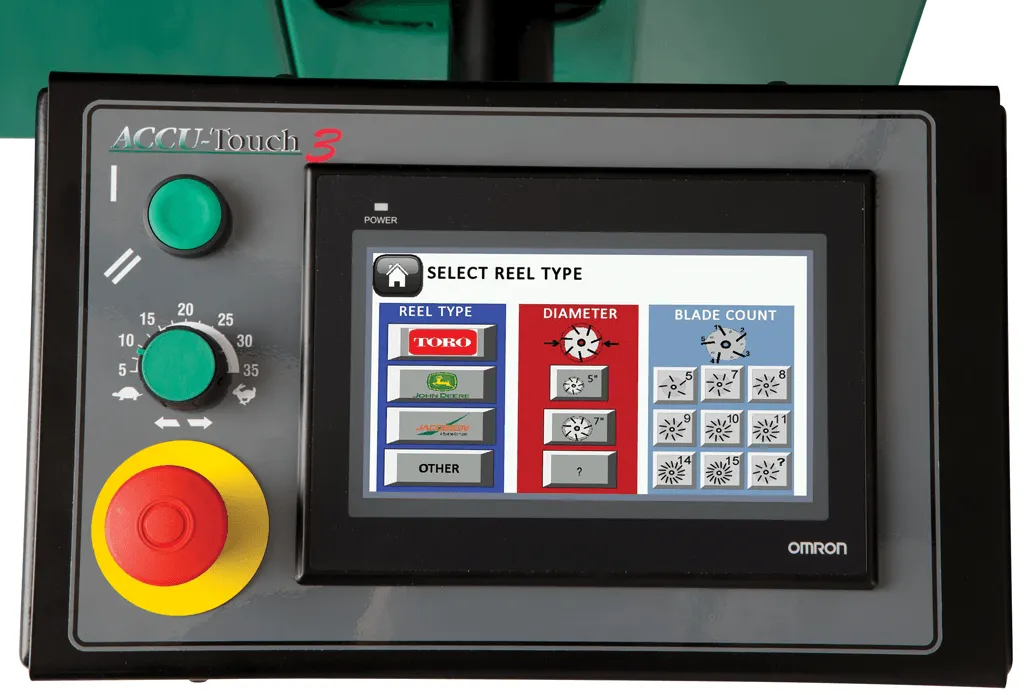

ACCU-TOUCH 3 (Optional)
Provides a step-by-step tutorial for new technicians and a quick setup and spin grind feature for the more experienced operators.
Tell the machine what you’re working on and the machine does the rest.
Pre-programmed spin speeds, relief torque, and in-feeds are just a few of the features of the ACCU-Touch 3.

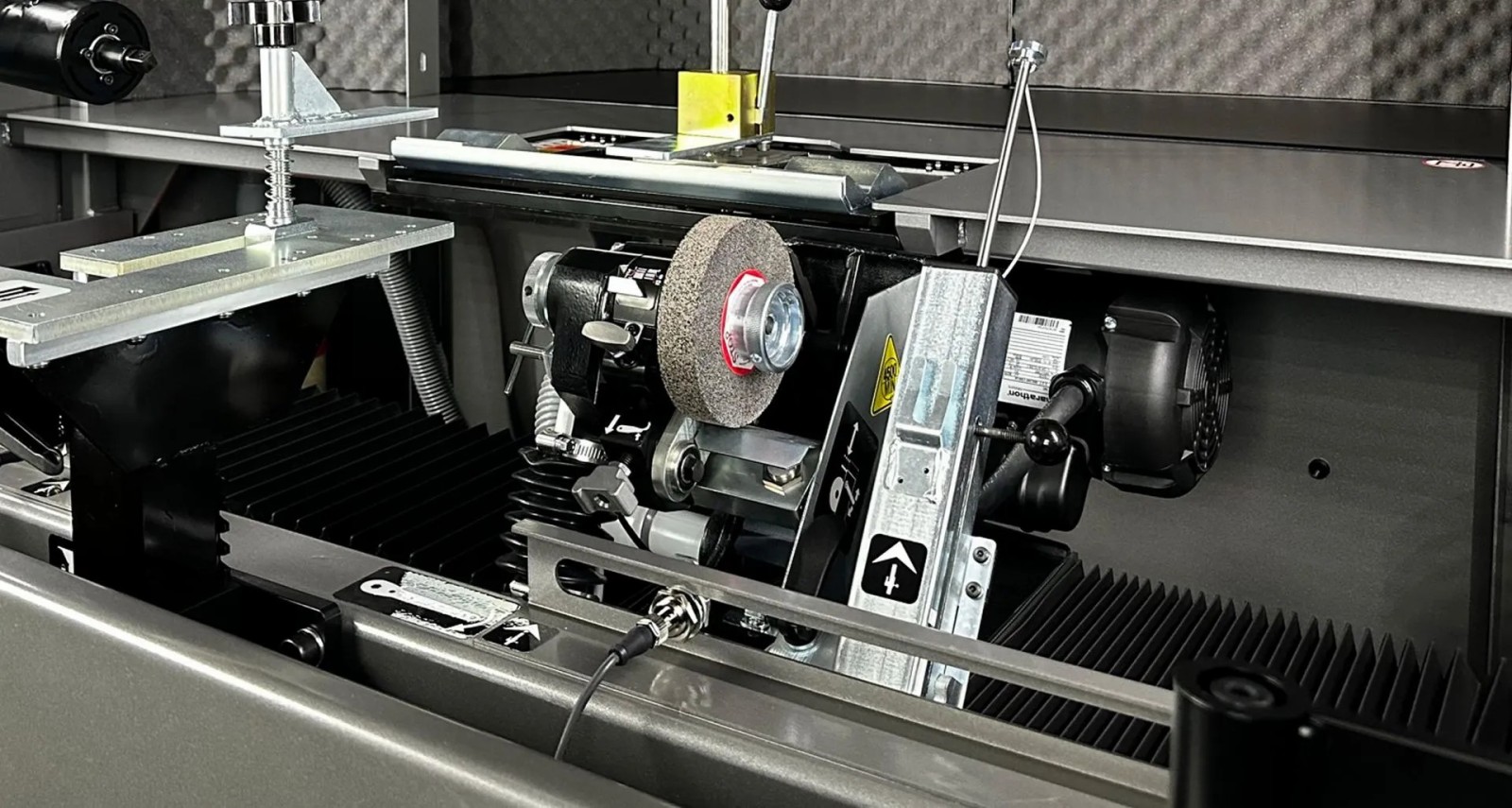

ACCU Positioning Gauge
The ACCU Positioning gauge uses a touch-screen display and a bubble-style graphic, ensuring you’re always grinding to a perfect cylinder.

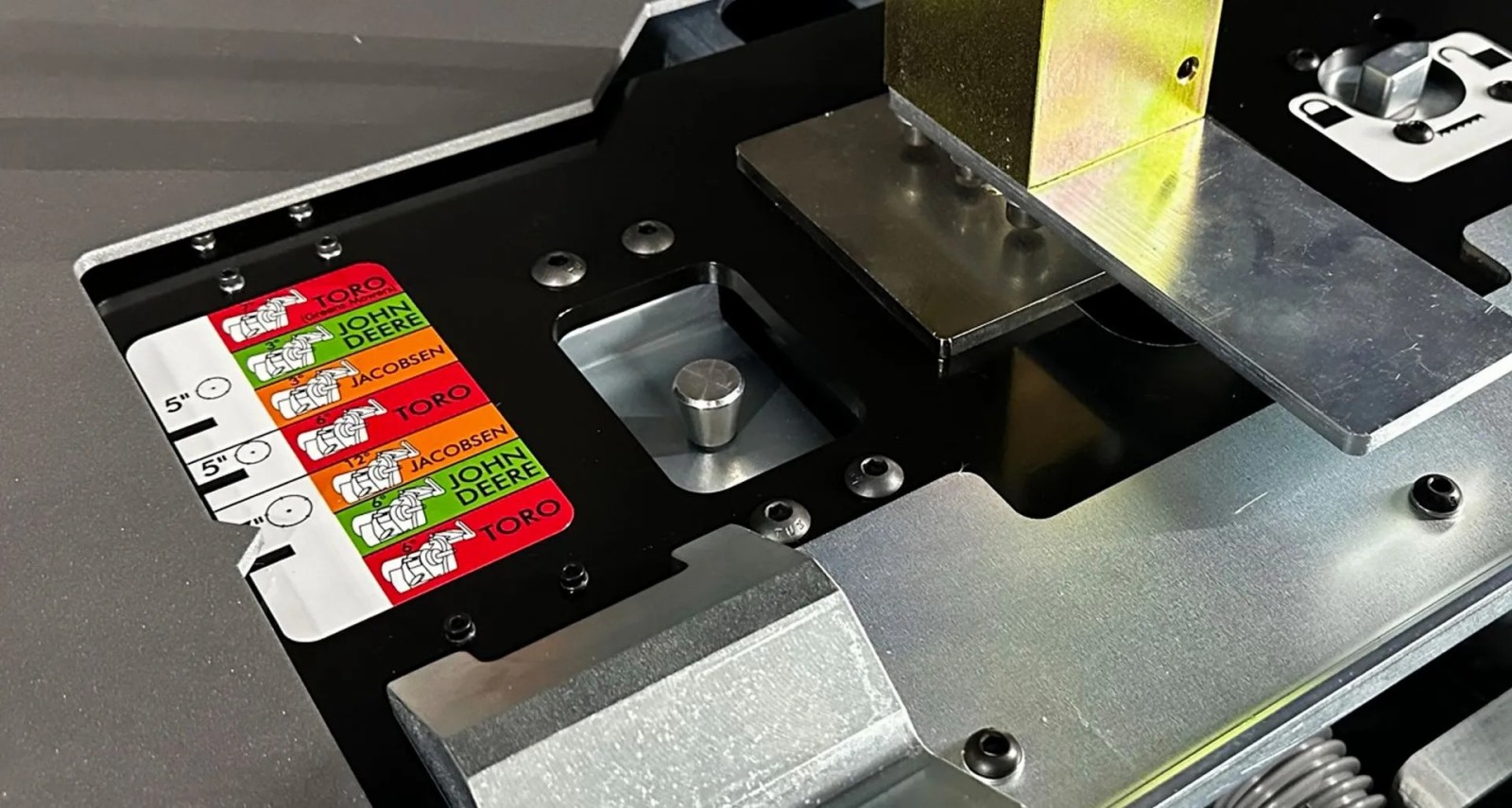

ACCU Reel Selector
Allows for easy adjustment of the rear roller v-mounts and automatically positions the reel based on reel make and diameter. The heavy-duty rear clamp is easily installed to secure the rear roller.
Cylinder Height Stop is built into the gauging system and easily positions the reel height correctly for both the spin and relief grind processes.

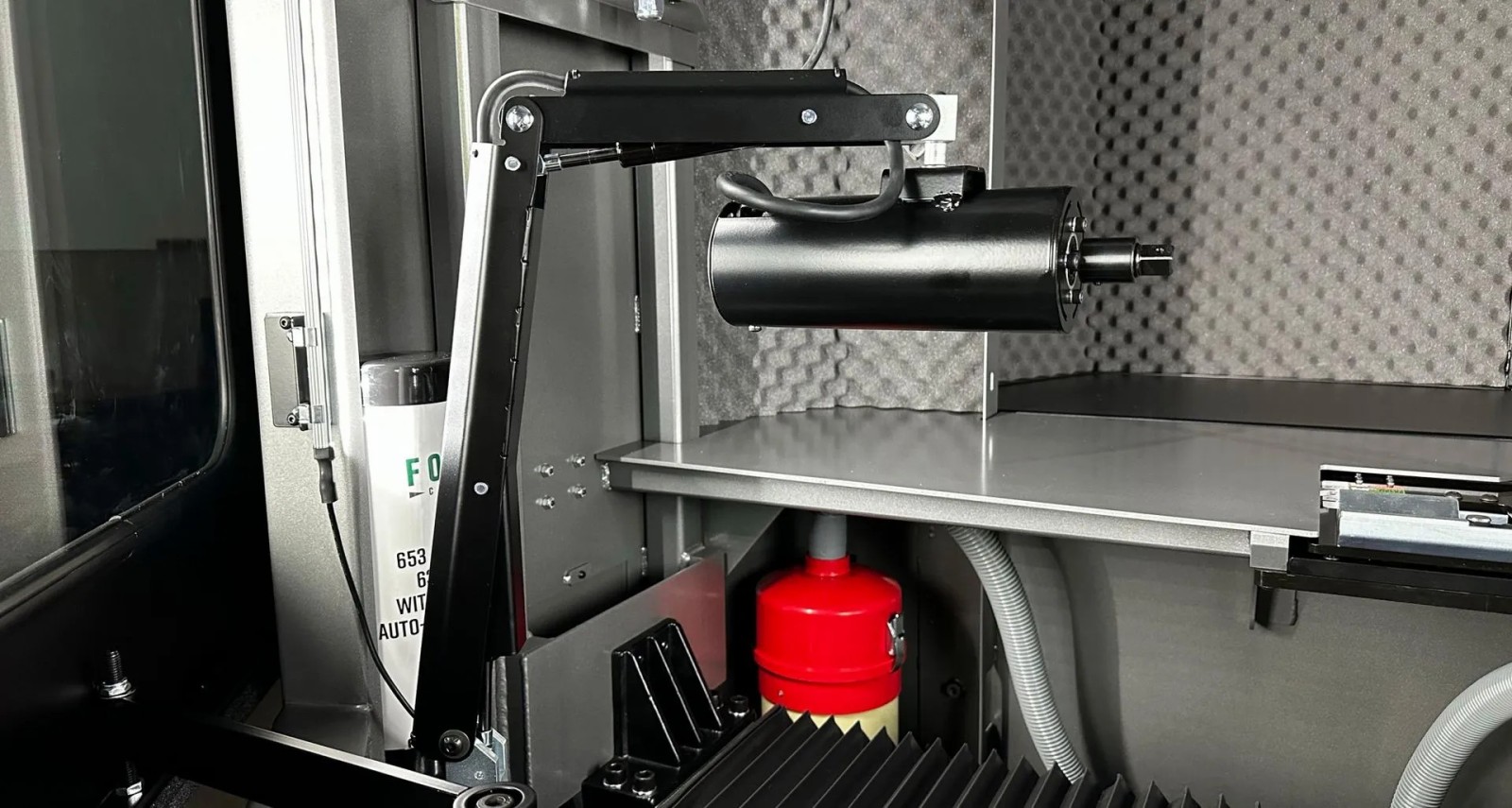

Counter Balanced Spin Drive
The spin drive is easy to position and connect directly to the reel shaft, and the spin drive mounting system is easily moved from one side to another.

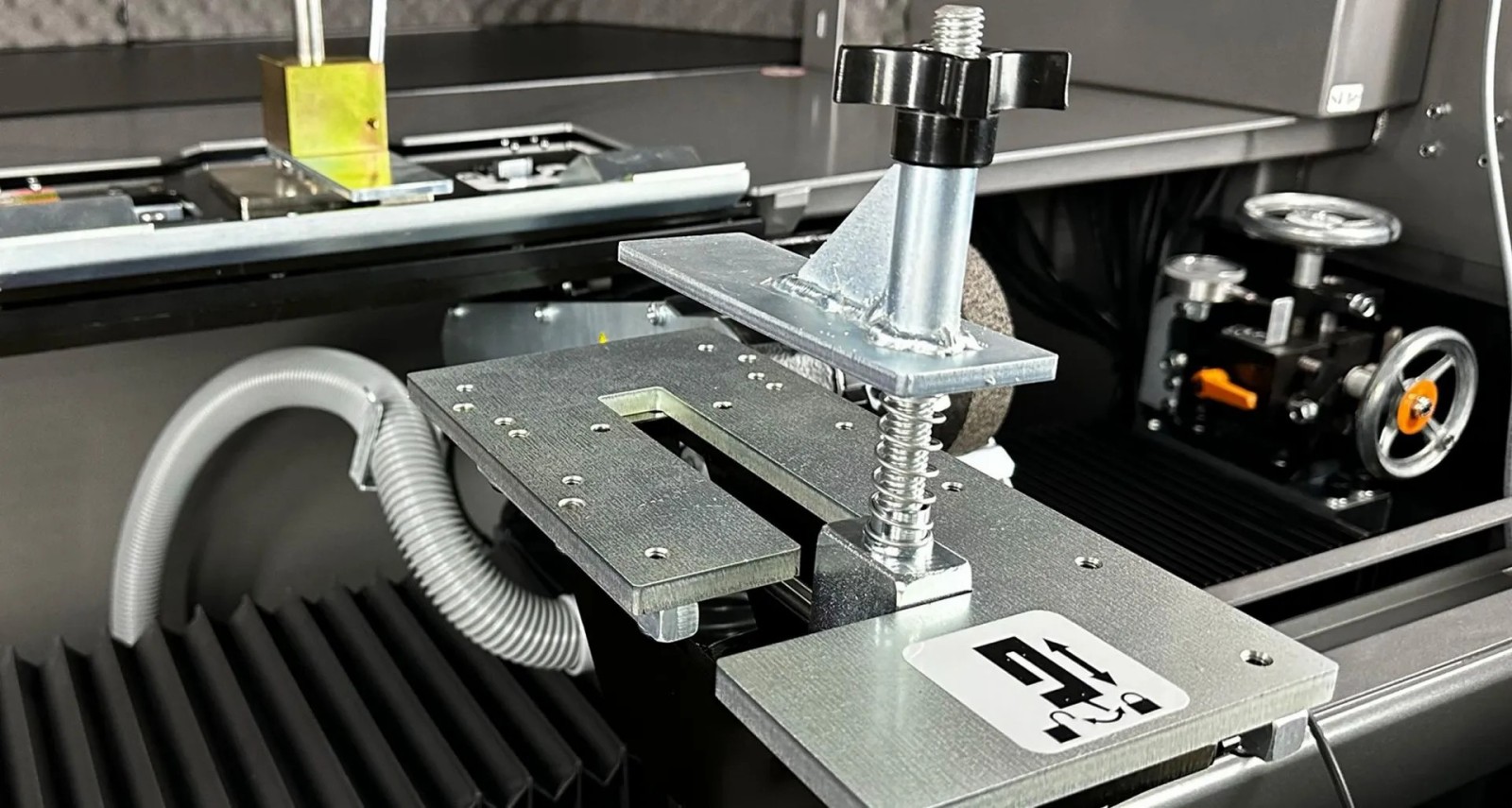

Front Roller Clamp
The front roller clamp is adjustable to accommodate various rollers and groomers and the single clamp design moves up and down to set the height of the reel using the cylinder height stop.
About Foley Company
At Foley Company, LLC, we created a “Commitment Statement” that captures our vision of what we want to accomplish as a manufacturer. Every day we strive to maintain this vision with each and every product we make, working to reach the following goals:
- Providing superior customer support, training, and service.
- Manufacturing the highest quality products at an unequalled value.
- Setting the industry standard by investing in technological innovation.
- Manufacturing products specifically designed to maintain original equipment manufacturers' specifications.
- Interacting with and supporting all of the original equipment manufacturers.
Our goal is to give you equipment solutions that are easy to use, work the way you need them to, and give you an outstanding return on your investment.
Centaur Asia Pacific is the distributor for Foley Company (Grinders) in Hong Kong and Macau.
