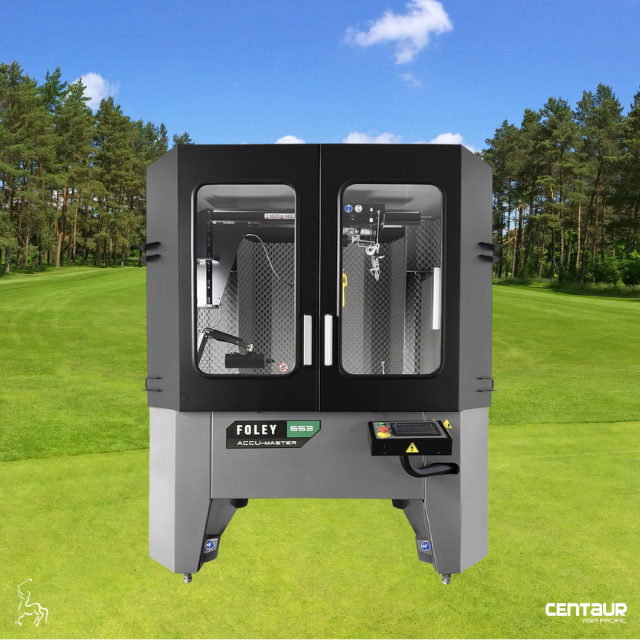

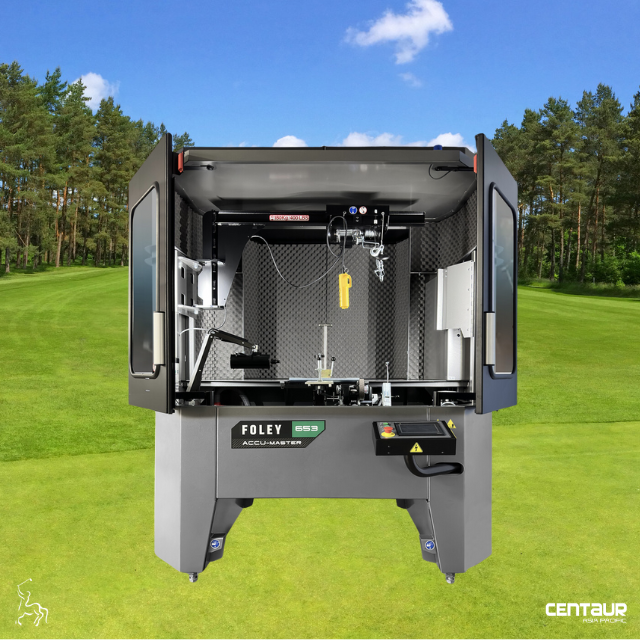

Foley 653 Accu-Master (Reel Grinder)
Advantages & Benefits
- Automated infeed cycles for spin and auto-index relief grinding deliver accurate, consistent results
- Completely enclosed doors with Lexan safety glass provide protection for the operator and bystanders
- Automatic reel positions using the ACCU-Reel selector, front roller clamp, and cylinder height stop
- Program and save spin speed and relief torque settings for significant time savings
- Vertical and horizontal adjustments ensure precise carriage position and taper removal
- Internal vacuum system efficiently collects dust to help keep shop area clean
Features
- Spin Grind capable
- Auto Indexing hands-free Relief Grinding
- Electronically control Torque for relief
- Quick Reel placement - ACCU-Reel selector
- Cone/Taper Removal - Easy Alignment of Reel to Grinder (Screen Feedback)
- Variable Speed Spin Drive motor (Articulating counter balanced)
- Variable Speed Belt Drive Traverse System
- Three Drive Adapters (male - 8, 9 and 11 tooth spline)
- Front Safety door with Safety interlock
- Quick Change Grinding wheel
- ACCU-Touch 3 with standard and custom programs (End-of-cycle indicator light)
- Noise and Dust abatement
- Dust collection - Vacuum system
ACCU-TOUCH 3
Provides a step-by-step tutorial for new technicians and a quick setup and spin grind feature for the more experienced operators.
Tell the machine what you’re working on and the machine does the rest.
Pre-programmed spin speeds, relief torque, and in-feeds are just a few of the features of the ACCU-Touch 3.

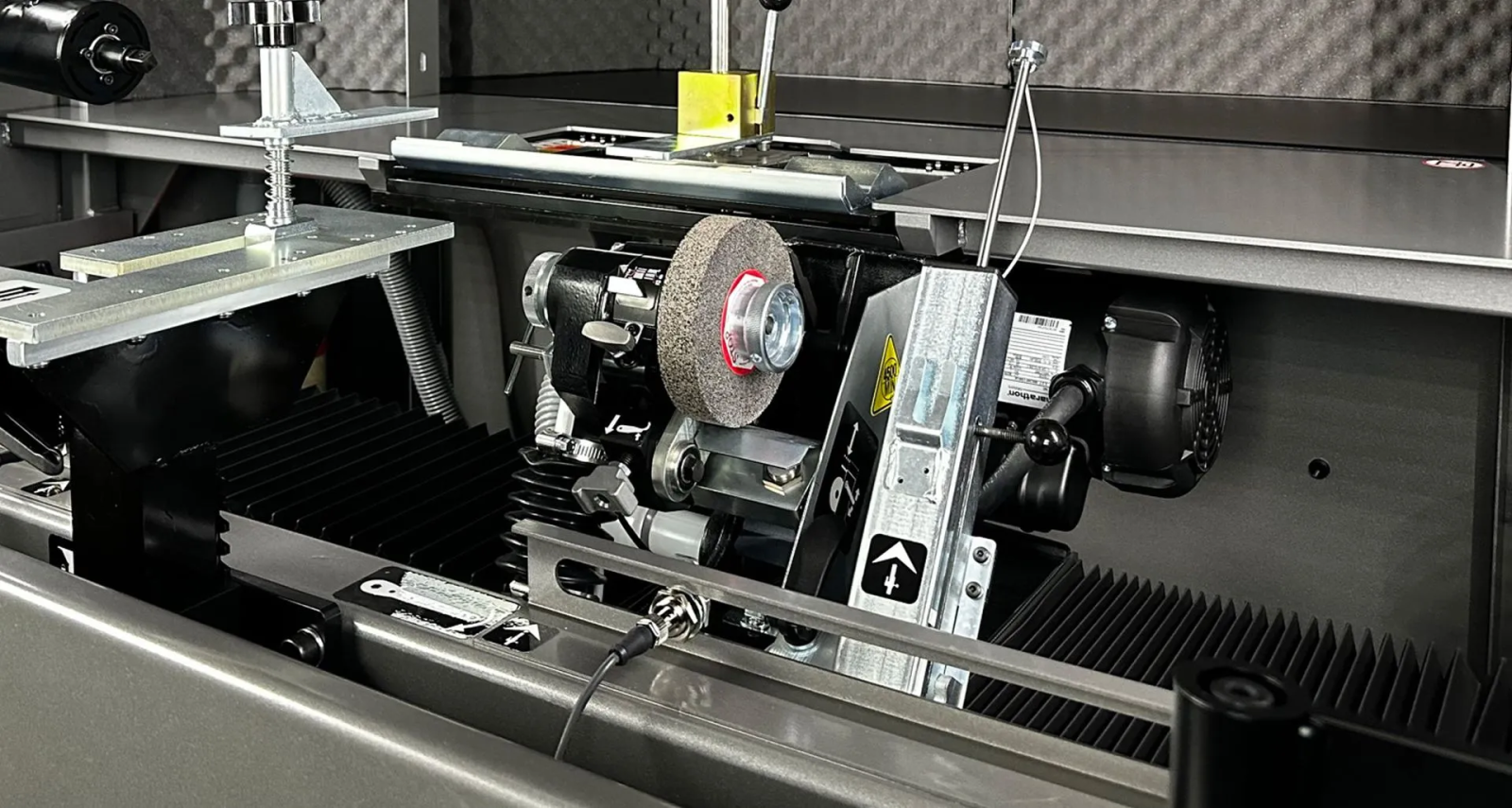

ACCU Positioning Gauge
The ACCU Positioning gauge uses a touch-screen display and a bubble-style graphic, ensuring you’re always grinding to a perfect cylinder.

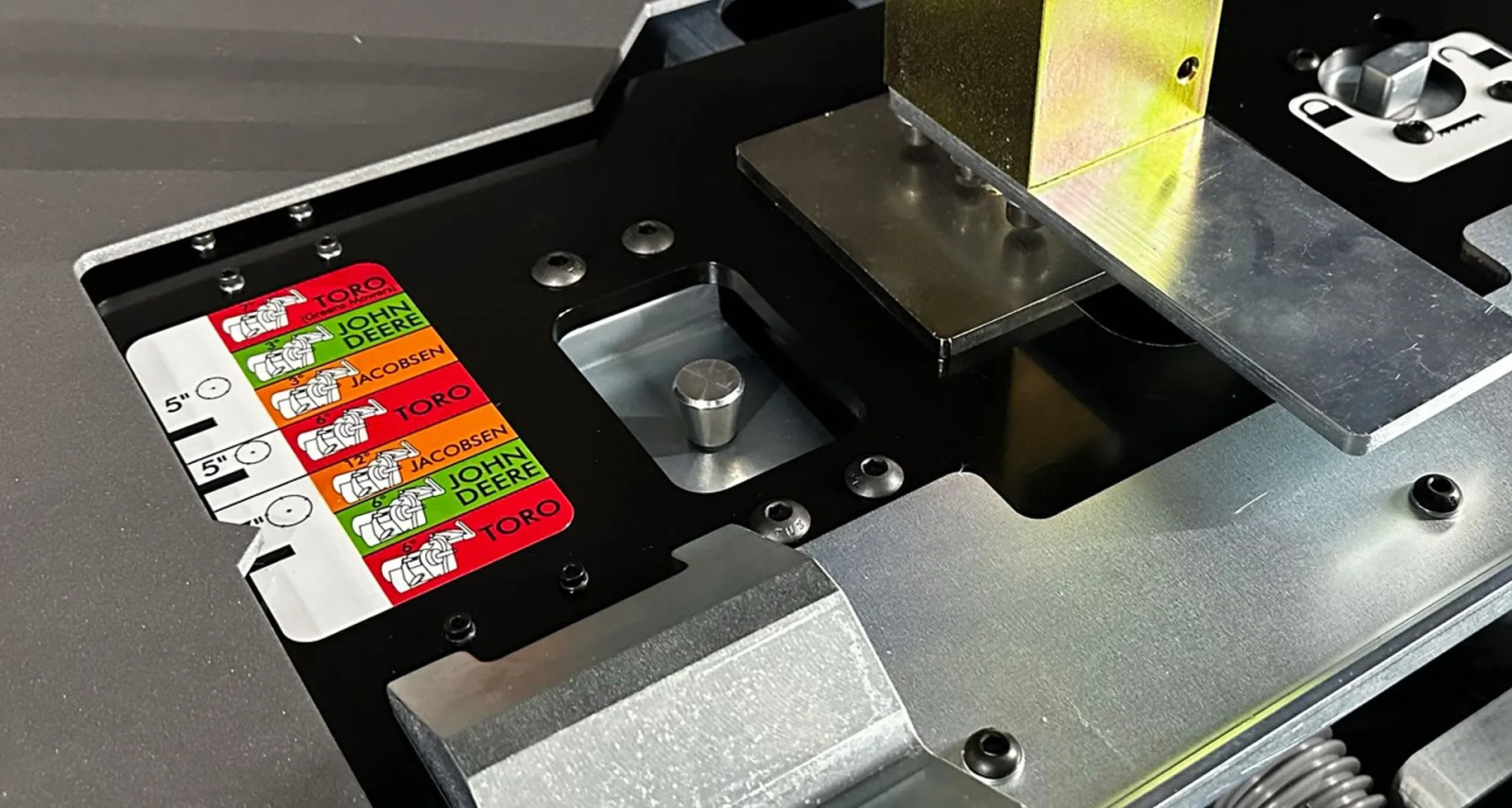

ACCU Reel Selector
Allows for easy adjustment of the rear roller v-mounts and automatically positions the reel based on reel make and diameter. The heavy-duty rear clamp is easily installed to secure the rear roller.
Cylinder Height Stop is built into the gauging system and easily positions the reel height correctly for both the spin and relief grind processes.

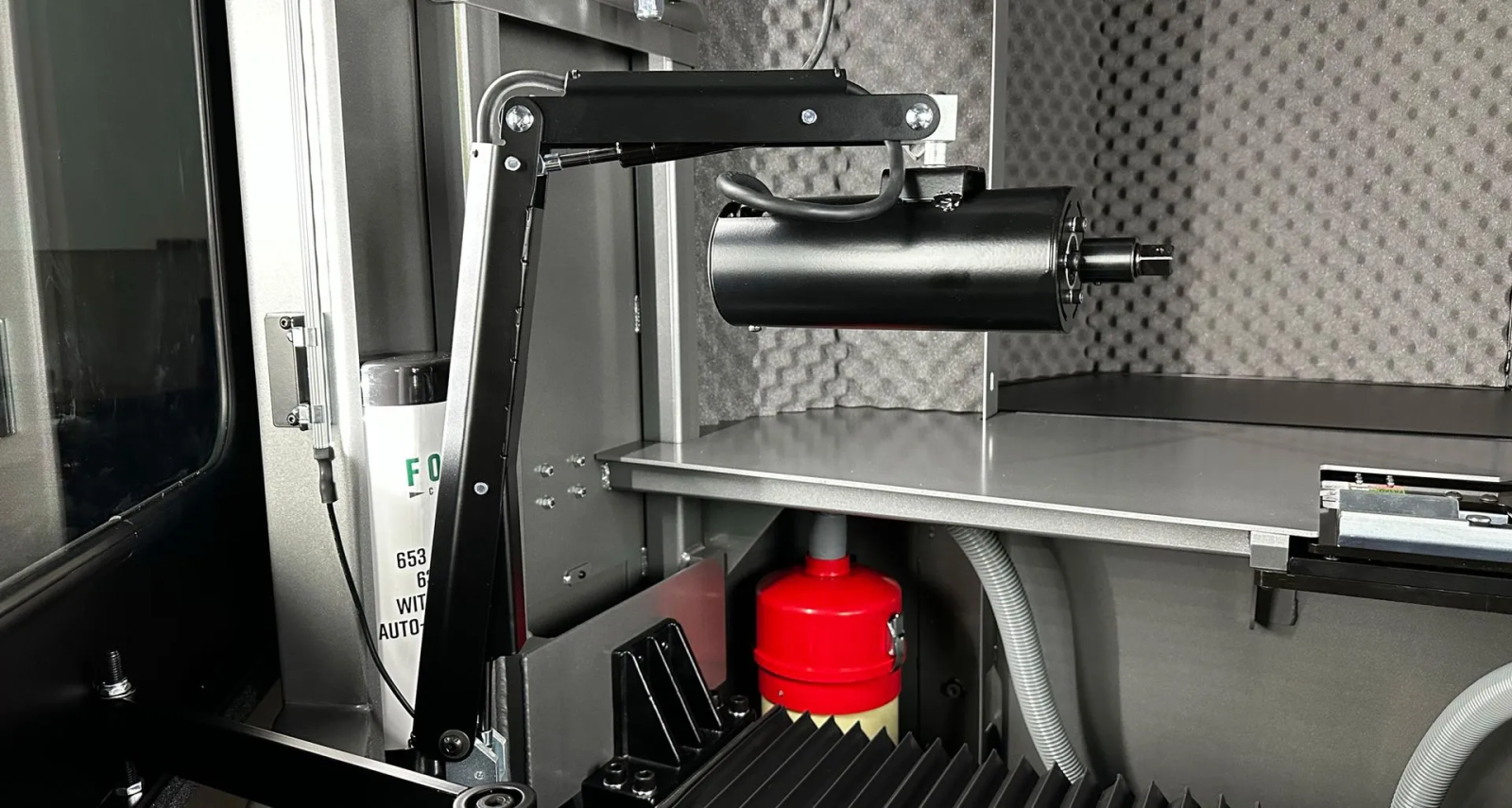

Counter Balanced Spin Drive
The spin drive is easy to position and connect directly to the reel shaft, and the spin drive mounting system is easily moved from one side to another.

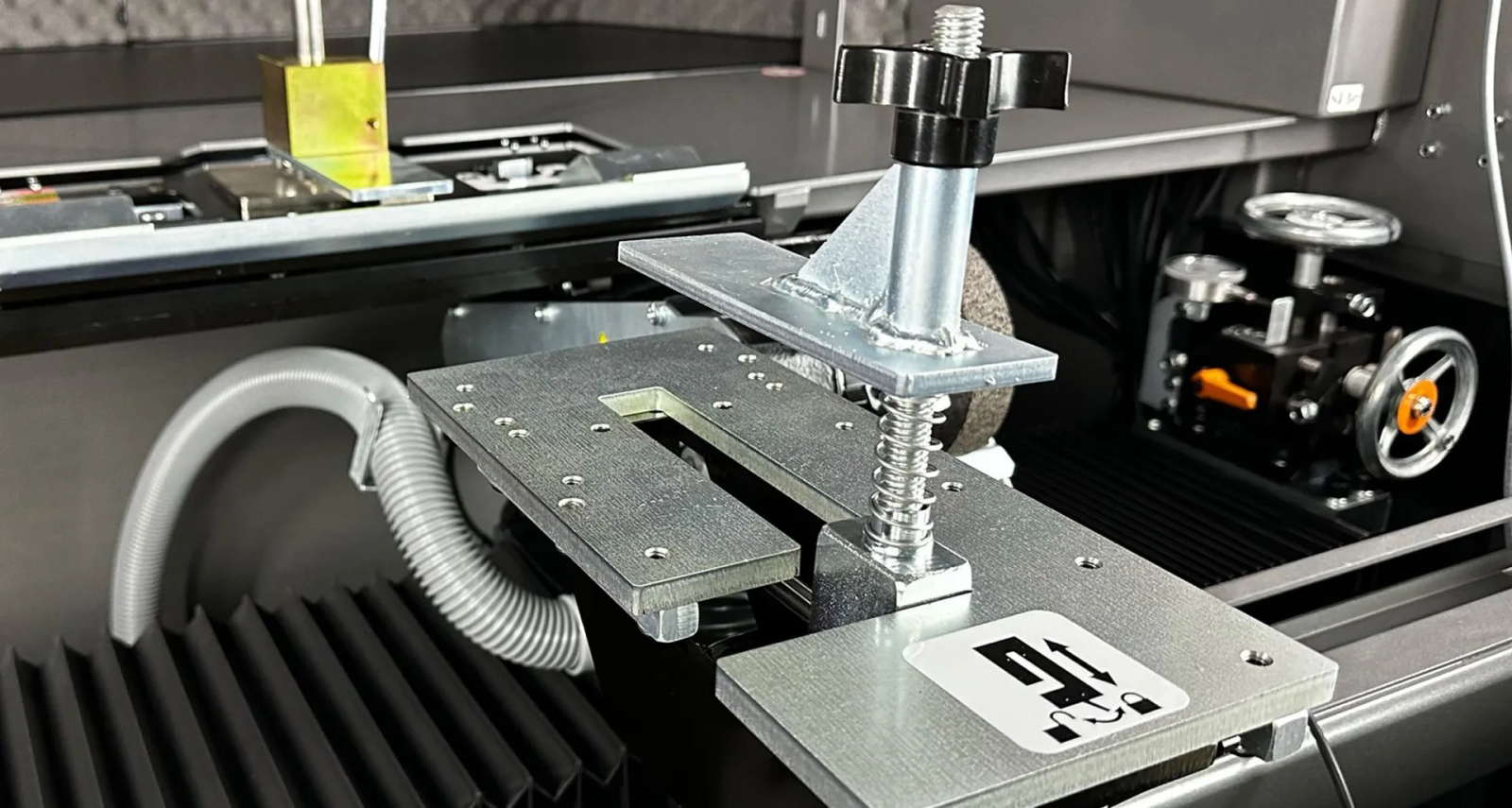

Front Roller Clamp
The front roller clamp is adjustable to accommodate various rollers and groomers and the single clamp design moves up and down to set the height of the reel using the cylinder height stop.
