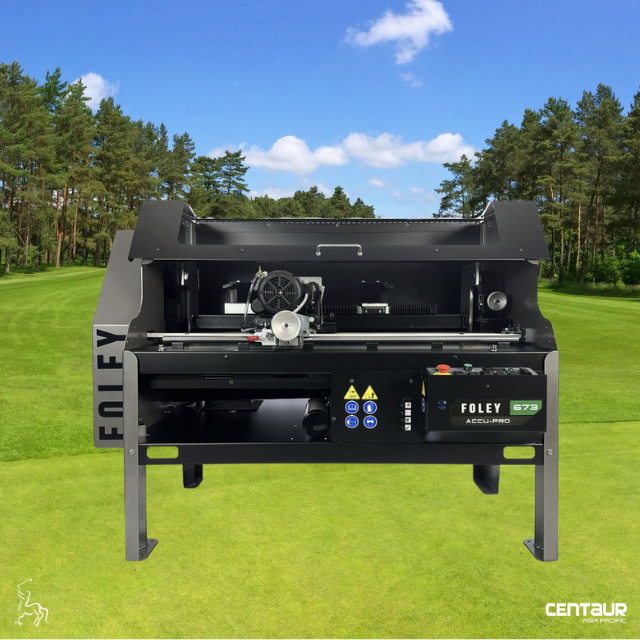

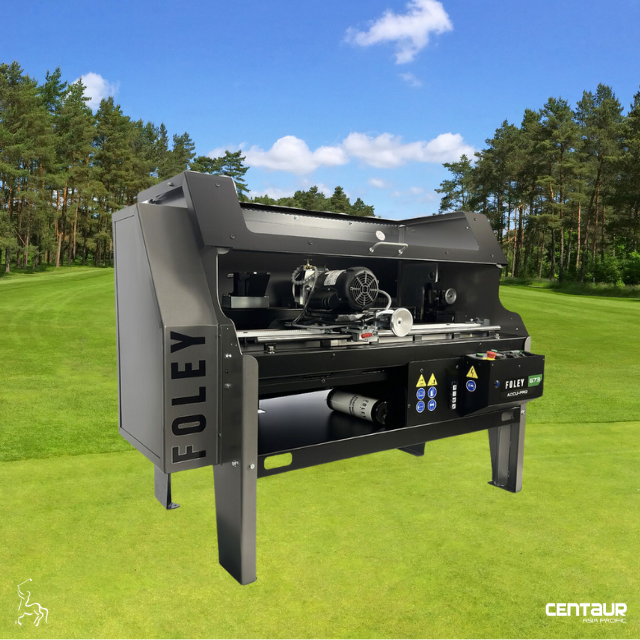

Foley 673 Accu-Pro AC Bedknife Grinder
The cutting-edge 673 ACCU-Pro with its revolutionary Bedknife Mounting System. Say goodbye to complicated set-up processes as our powerful electromagnets securely hold the bed bar in place, making set-up a breeze. No additional tooling is required so you can grind any bed bar arrangement effortlessly.
Achieve unbeatable precision and repeatability with our Fast Angle Set-up. With just the push of a button, you can seamlessly switch from grinding the front face to the top face, all while watching the powered Tool Bar effortlessly rotate into position.
Experience the ultimate convenience with our Easy-To-Use Controls. Our precision Hand Wheel allows you to effortlessly in-feed the grinding head while it automatically traverses. For even greater automation, our 673 comes equipped with pre-set programs that automatically in-feed the grinding head and stop the grinding process once completed. Say goodbye to manual adjustments and hello to streamlined efficiency.
- Bellows kit for component protection
- Borazon grinding wheel for hardened bedknives
- Replacement Flood Coolant Additive
Features
- Mounting System
- Adjustable Flood coolant
- Quick retractable Setup Gauge
- Powered, Fixed Stop Grind Angle
- Integrated Diamond Dresser
- Height Adjustable Grinding head
- Variable Speed Belt Drive Traverse System
- Automatic Mode - with Powered Infeed
Fast Angle Setup
Provides repeatability without recalibration. By setting the Angle Stops once, the 672/673 can grind the same angle over and over. This is the market’s fastest method of setting the desired angle.
Automated In-Feed
This control allows you to push a button and walk away as the 673 automatically in-feeds, traverses, and runs one of the pre-set programs.
Flood Coolant / Diamond Wheel Dresser
Controls dust, allows fast grinding time by controlling the bedknife temperature during the grind and aids in producing a high-quality surface finish.
Allows the operator to dress the grinding wheel. The permanently attached dresser stores easily out of the way during grinding and requires minimal adjustment for dressing.
Precision Traverse System
Is the key to straight bedknives over the life of the machine. Heat-treated, stress-relieved, and precision-machined, the traverse base utilizes a reliable belt drive system. These features combine to provide the precise foundation for the most accurate grind possible.
Powered Motion
The tooling bar and mounting system simplifies and quickens the change from grinding the front to the top surface.
Bed Bar Mounting System
Allows the bed bar assembly to remain straight and stable throughout the grinding process without inducing stress.
Alignment Gauge
Simplifies and virtually eliminates set-up time. The forward and upright position is used for the alignment of the bedknife. After alignment, the gauge is stored in an out-of-the-way position.
About Foley Company
At Foley Company, LLC, we created a “Commitment Statement” that captures our vision of what we want to accomplish as a manufacturer. Every day we strive to maintain this vision with each and every product we make, working to reach the following goals:
- Providing superior customer support, training, and service.
- Manufacturing the highest quality products at an unequalled value.
- Setting the industry standard by investing in technological innovation.
- Manufacturing products specifically designed to maintain original equipment manufacturers' specifications.
- Interacting with and supporting all of the original equipment manufacturers.
Our goal is to give you equipment solutions that are easy to use, work the way you need them to, and give you an outstanding return on your investment.
Centaur Asia Pacific is the distributor for Foley Company (Grinders) in Hong Kong and Macau.
