IMANTS – Mini RotoKnife

IMANTS – Mini RotoKnife

Designed to relieve surface compaction, improve aeration, reduce thatch build up and remove surface water

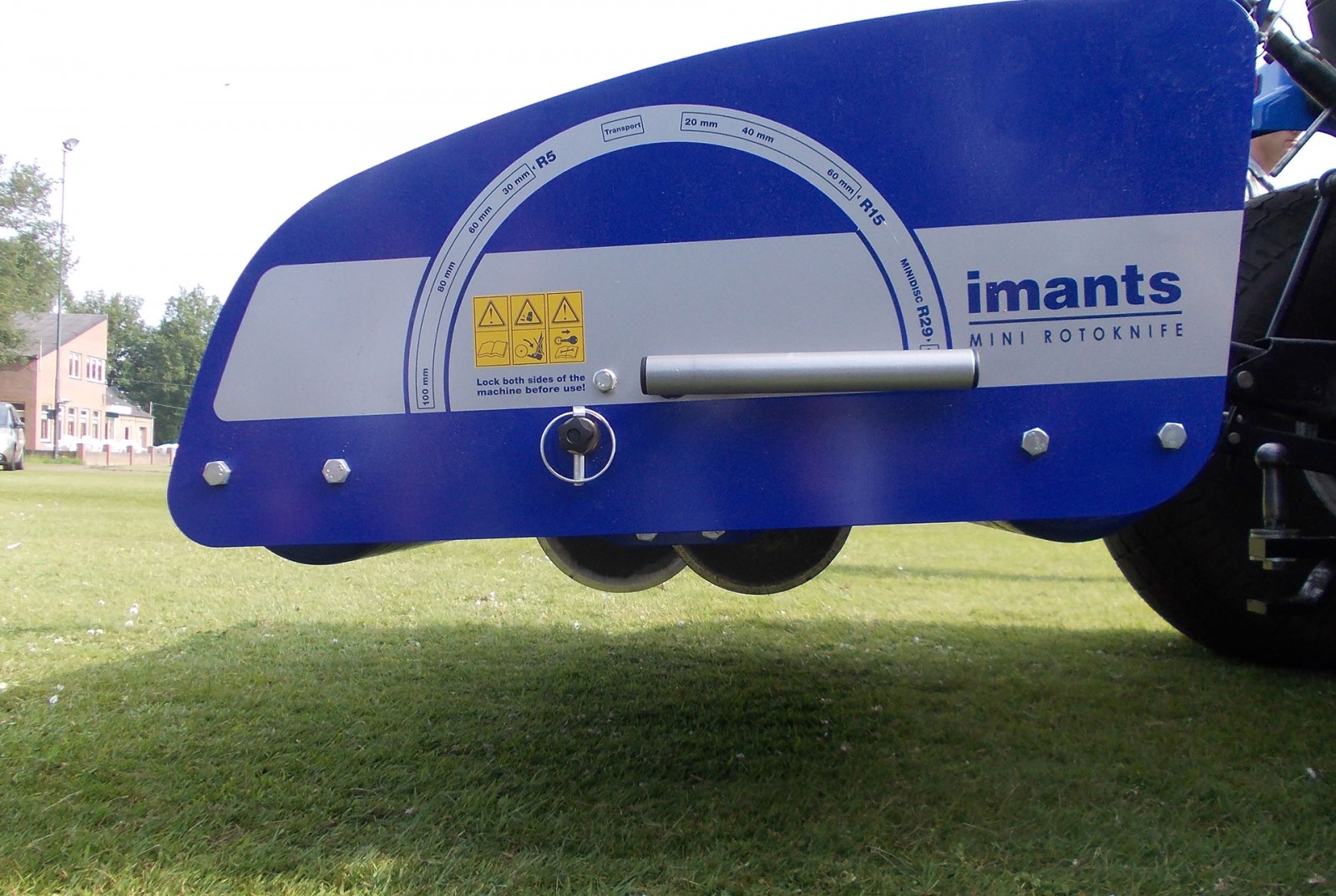

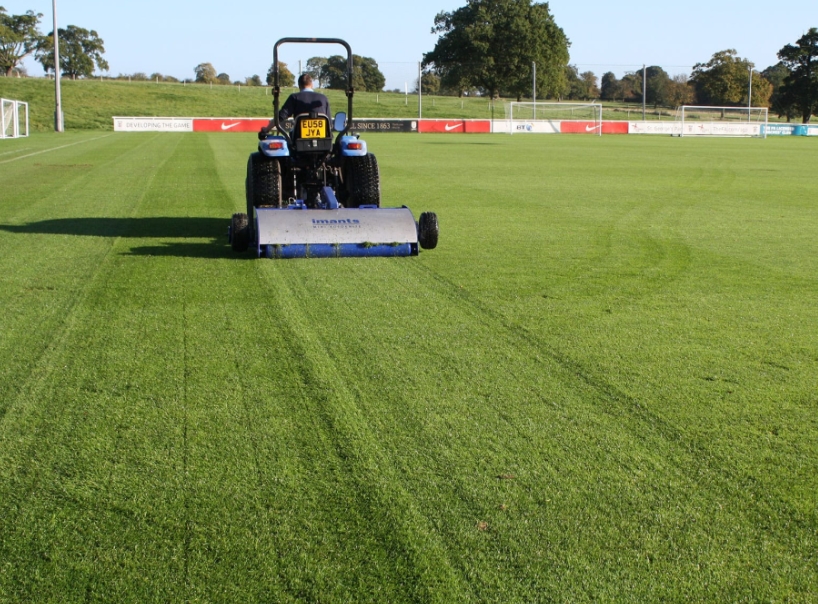

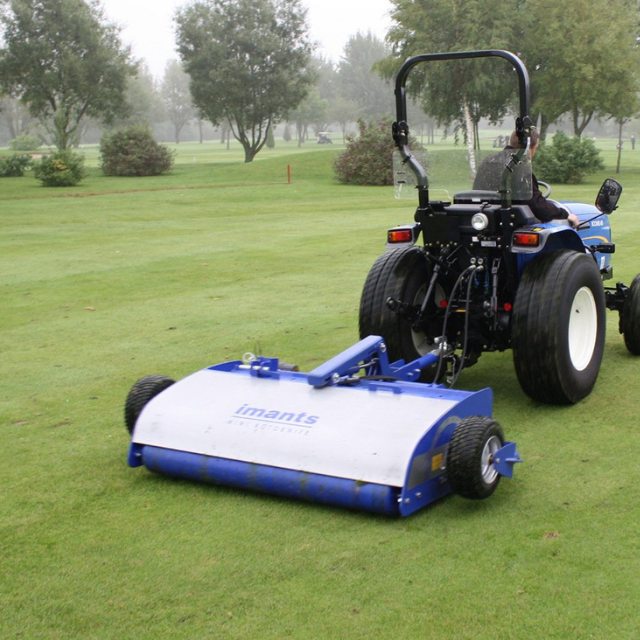

The Imants Mini RotoKnife is a linear disc-aerator, designed to relieve surface compaction, improving aeration, reducing thatch build up and removing surface water. The Mini RotoKnife is fast across the surface and is a versatile rootzone management tool. The disc rotor shaft can be set in 3 positions, giving flexibility in working depth and linear spacing, allowing slitting to a depth of 100mm, or shallow slitting at 50mm spacing. The Mini RotoKnife is available in towed or mounted format and is compatible with most turf trucksters and compact tractors. It is ideal on warm or cool season grasses.

Features

  • Three blade spacings and multi-depth allows sitting to a depth of 100mm or shallow slitting at 50mm spacing
  • Can be used all year round to relieve surface compaction, improve aeration, reduce thatch build up and remove surface water
  • Available in mounted or towed version, fitting most trucksters and compact tractors
  • Use of machine improves turf and root zone quality, leading to increased play and revenue
  • The sharp think disks cause minimal disruption and require no clean-up




Established in 1986 by Richard Campey

Richard Campey detected an untapped market need, he realised that there was a role for a specialist supplier of high quality purpose built equipment that would enable turf managers to meet the increased demands placed on modern sports turf surfaces.

What initially started out as business offering sports turf maintenance work within the North West of the United Kingdom, has now grown to be one of the leading UK’s independent distributors, with machinery available throughout Europe, Asia, Africa and the USA.





Centaur Asia Pacific is the distributor for Campey Turf Care Systems range of products in Hong Kong, Macau, Singapore and Brunei.

Updated on: 17 February 2023

Specifications

Working width 1.50m – 1.60m
Transport width 1.80m 3pt mounted /2.20m towed
Working depth 20mm – 100mm (variable settings)
Disc spacing 50mm, 100mm, 300mm
Disc thickness 3mm (200mm disc), 4mm (300mm disc)
Number of discs 29 x 200mm Mini Discs, 5 x 300mm Discs
Weight 550kg (Towed) 470kg (Mounted)
Operating speed 0 – 12 mph (0 – 20 kph)
Tractor requirement (mounted) 25hp – Cat 1: 3pt linkage / hydraulic spools
Tractor requirement (towed) 50mm ball hitch. Double acting hydraulics
Operating speed 0 – 12 mph (0 – 20 kph)
Options Electric actuator to lift and lower when towed
