IMANTS RotoSweep & Rhea Scarifier

IMANTS RotoSweep & Rhea Scarifier

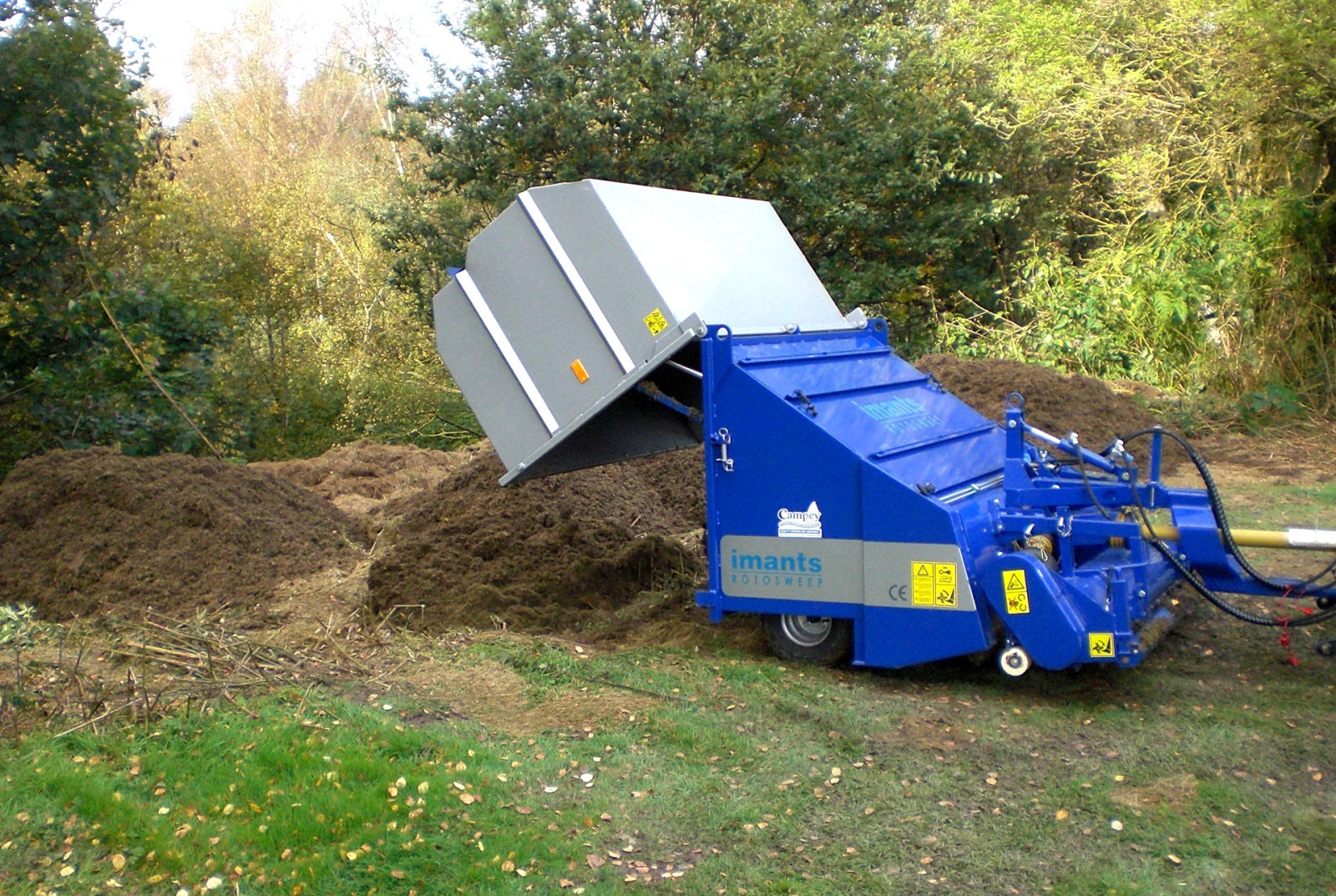

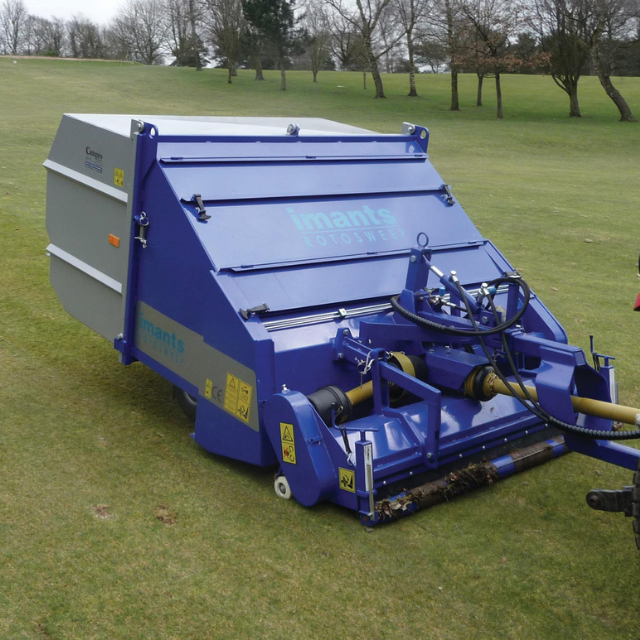

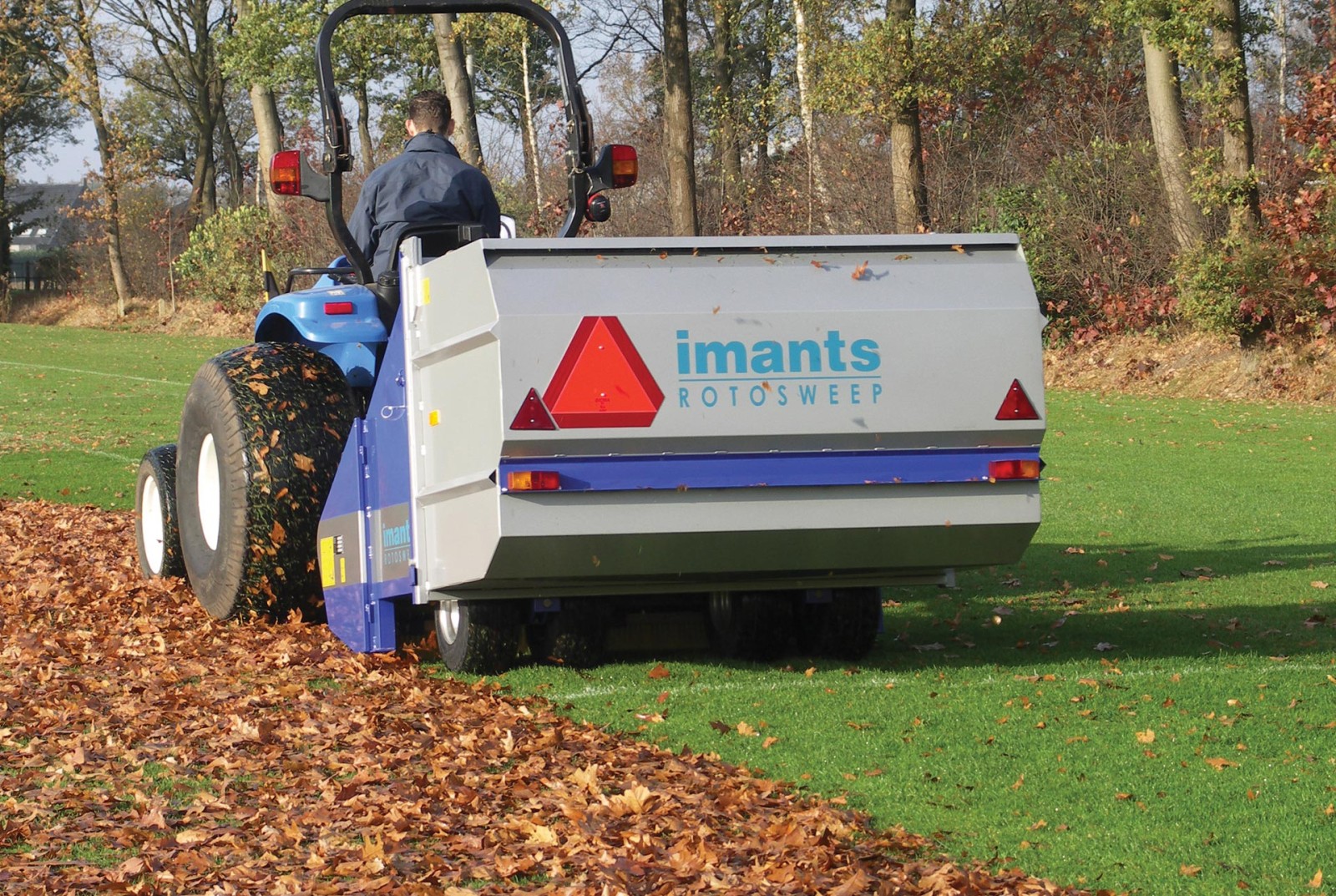

The RotoSweep offers efficient removal of surface debris from sports turf, including cores, grass clippings, leaves and general litter collection. Featuring a dual powered brush system, even heavy debris can be collected without any damage to the grass. The RotoSweep is tractor towed, powered from the PTO and tipped hydraulically, with the centrally positioned axles allowing tight contours to be followed. An independent floating scarifier attachment, the RHEA, can be attached in front of the RotoSweep.

Benefits of Imants RotoSweep:

  • Effective removal of debris and thatch from turf
  • Promotes a clean and healthy playing surface
  • Easy to operate
  • Adjustable to meet specific turf needs

Benefits of Rhea Scarifier:

  • Promotes healthy root growth and soil health
  • Improves overall turf health
  • Reduces risk of disease
  • Enhanced playing conditions for athletes and golfers
  • Easy to operate
  • Adjustable to meet specific turf needs

About Imants

Imants has been manufacturing tillage machines for more than 135 years. Heavily compacted soil, challenges with soil water management or the wish to rip, spade and sow in a single pass are among the many possibilities.

Founded in 1885, Imants grew from a blacksmith’s shop to become a manufacturer of ploughs. In the 1960s, the company switched to the production of spading machines. Since then, we have been convinced of the benefits of spading as a tillage method par excellence. In addition, we produce a full range of sports field maintenance machines. These are called the “Greenline” in this catalogue.

Production has always been carried out in our own factory and has changed enormously and become more professionalised over the years. This means that custom products can be supplied without any huge increases in production time. The production and quality of the materials also continue to improve as a result.

Imants has now built up an extensive product range. The result? A suitable machine is available for every tractor type, every soil type, every working width, every working depth and any possible wish you may have in the area of soil tillage.





Centaur Asia Pacific is the distributor for Campey Turf Care Systems in Hong Kong, Macau, Singapore and Brunei.

Updated on: 19 July 2024

Specifications

RotoSweep

Working width 1.70m
Transport width 1.90m
Length (incl. Drawbar) 3.20m
Height 1.45m
Tipping height approx 1m (depending on length of link arms)
Hopper capacity 2.5m³
Number of brushes / blades 8 brush strips
Weight (approx) 650kg (empty)
Power requirement 30 – 50hp
Tractor requirements 540 PTO. Double acting spool
Operating speed 0 – 10mph (0 – 18kph)


Rhea MKII Scarifier

Working width 1.70m
Transport width 1.92m
Length (incl. Drawbar) 0.50m
Height 0.50m
Tipping height approx 1m (depending on length of link arms)
Hopper capacity 2.5m³
Weight (approx) 210kg
Number of brushes / blades 72 or 144 (2 or 3mm thick)
Power requirement 30 – 50hp
Tractor requirements 540 PTO. Double acting spool
Operating speed 0 – 4mph (0 – 6kph)
