IMANTS - ShockWave

IMANTS - ShockWave

Designed to revitalise heavy wear areas by relieving soil compaction, improving aeration and removing surface water.

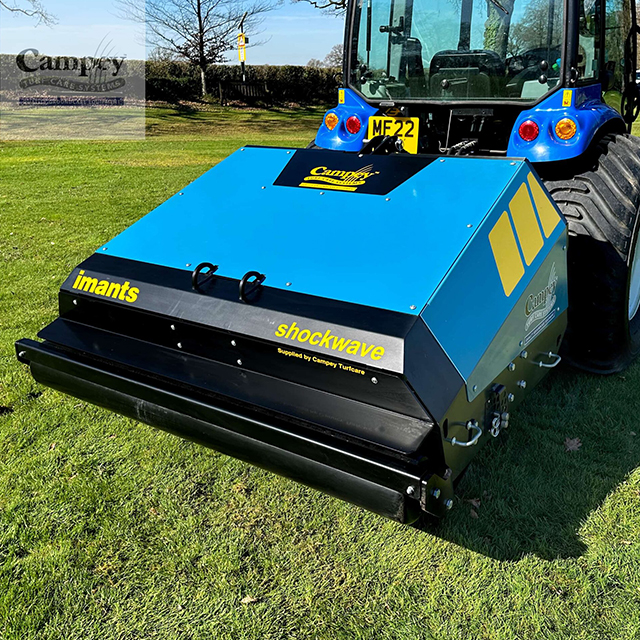

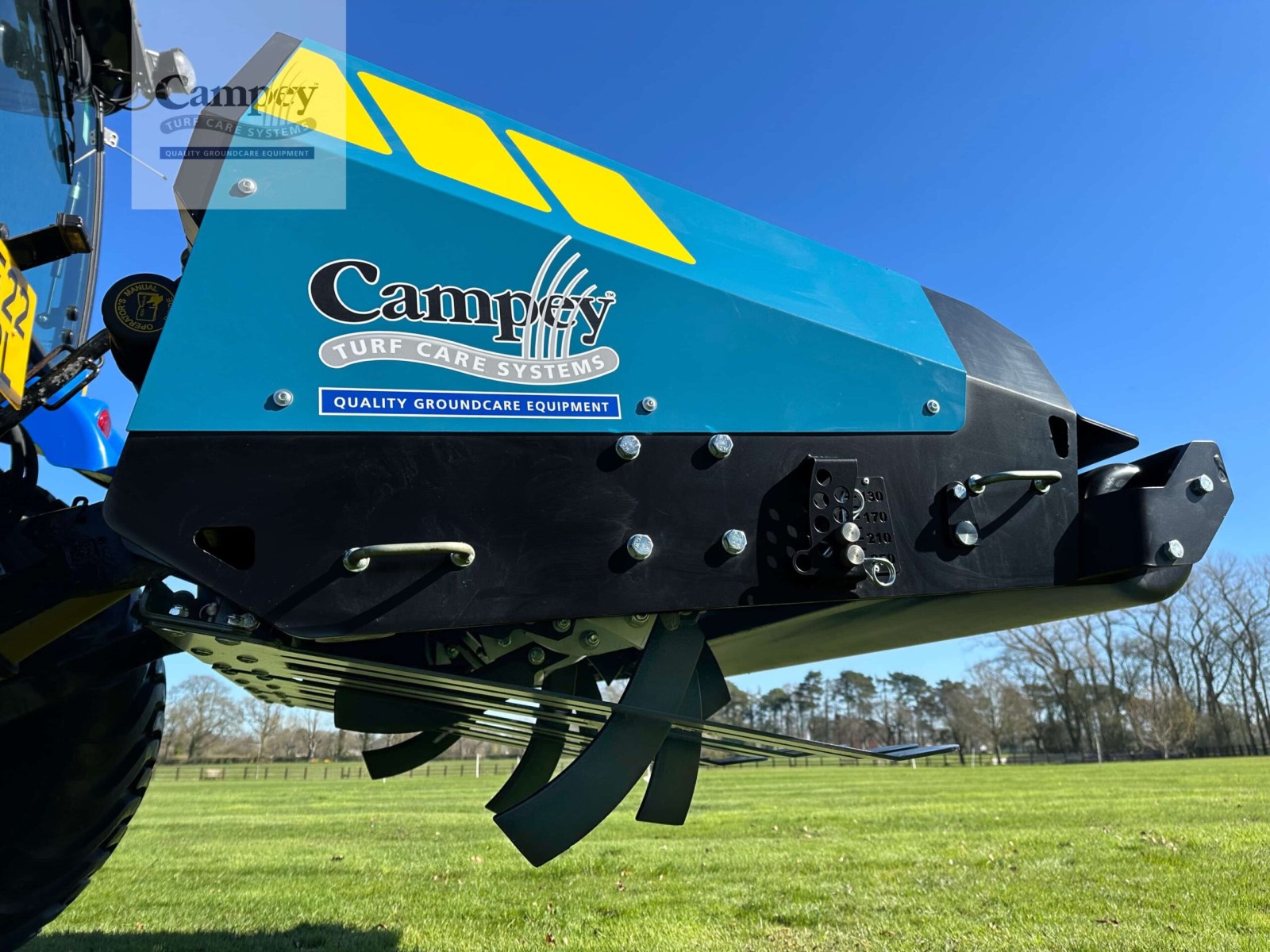

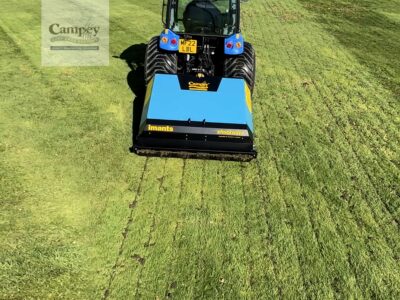

The Imants ShockWave is the perfect linear decompacter for heavily used are as where play can’t stop. This machine is designed to revitalise fine turf and sports fields by relieving soil compaction, improving aeration and removing surface water, all whilst causing minimal surface disruption so play can resume quickly and safely. All ShockWave models feature a no-chains, direct drive design, maintenance free ‘sealed for life’ bearings and no shear bolts

Imants ShockWave 220/275 brings linear decompaction to wide areas, making it the perfect machine for contractors. Using thicker 15mm knives and featuring hydraulic depth adjustment from the tractor, this machine takes the ShockWave’s attributes of relieving soil compaction, improving  aeration and removing surface water and applies them to large turf areas that need to be revitalised and ready for action quickly.

Features

  • Removes surface water
  • Provides maximum decompaction in the rootzone to improve turf quality
  • No-chains direct drive, ‘sealed for life’ bearings and mechanical drive  overload protection
  • Improves drainage and water percolation
  • Minimal surface disruption allows play to continue quickly




Established in 1986 by Richard Campey

Richard Campey detected an untapped market need, he realised that there was a role for a specialist supplier of high quality purpose built equipment that would enable turf managers to meet the increased demands placed on modern sports turf surfaces.

What initially started out as business offering sports turf maintenance work within the North West of the United Kingdom, has now grown to be one of the leading UK’s independent distributors, with machinery available throughout Europe, Asia, Africa and the USA.





Centaur Asia Pacific is the distributor for Campey Turf Care Systems range of products in Hong Kong, Macau, Singapore and Brunei.

Updated on: 17 February 2023

Specification

  eXtreme
  1.0  1.6 2.1 220 275 275 366
Working width 1.00m  1.60m 2.10m  2.20m 2.75m  2.75m  3.66m
Working depth  110mm - 250mm 110mm - 250mm 110mm - 250mm 120mm - 280mm 120mm - 280mm 150mm - 330mm 150mm - 350mm
Number of blades 12 18 24  24 30 30 39
Blade thickness 12mm  12mm  12mm  15mm 15mm 15mm  15mm
Blade spacing 265mm 265mm  265mm  275mm 275mm 275mm  277mm
Machine length  1.38m  1.38m 1.38m  2.20m 2.75m
Machine width 1.20m 1.75m 2.30m  2.50m  3.00m 2.18m - 3m 2.18m - 3.91m
Machine weight (approx.) 525kgs 635kg 750kg  1250kg 1750kg 2100kg 2400kg
Power requirement 41 - 54hp 41 - 54hp 41 - 54hp 80hp + 100hp + 95hp 95hp
Tractor requirements 540 pto. Creep gear or hydrostatic drive required
Operating speed  0.5 - 1.5 mph (0.5 - 2.4kph) 0.5 - 1.9mph 0.5 - 1.9mph
Option: Turf retainer   125kg 166kg
