KORO FTM

KORO Field Top Maker FTM KORO Field Top Maker FTM KORO Field Top Maker FTM

KORO FTM

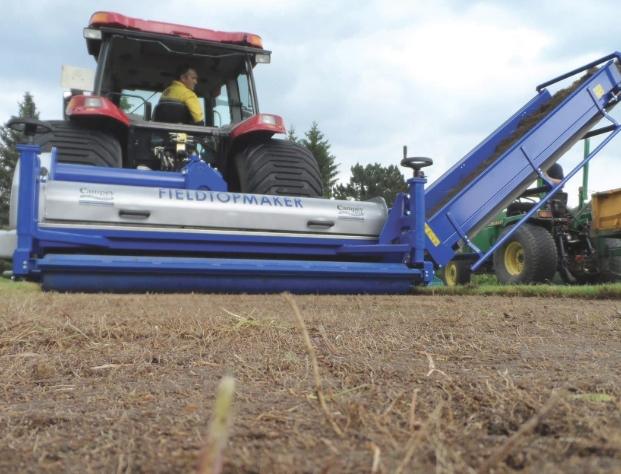

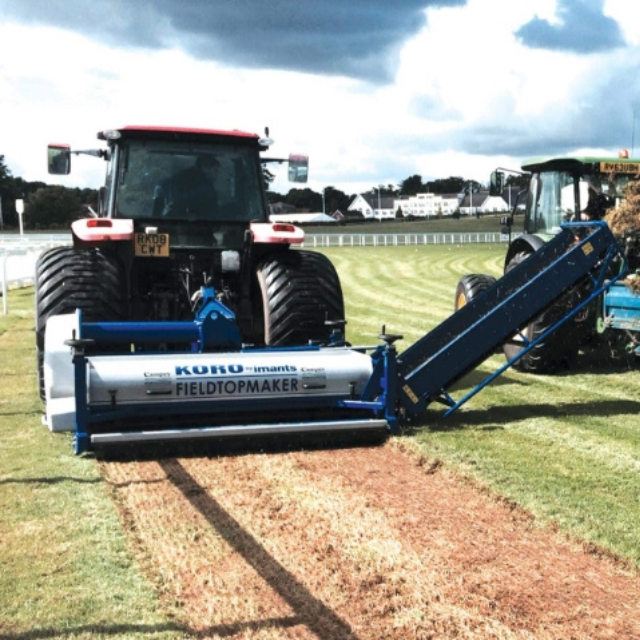

Heavy-duty fraise mower for surface restoration of sports pitches

The undisputable success of the KORO® FIELDTOPMAKER® across all sports surfaces has helped produce healthier turf through greatly improved surface hygiene, and the remastered 1.2m, 1.6m, 2.0m and 2.5m models build on that success. To make the machines more user-friendly for golf the weight and balance have been analysed, resulting in a lighter, steadier experience. Solid locking pins now offer greater consistency and the overall performance is improved due to the re-designed patented UNIVERSE® rotor and angled cross conveyor.

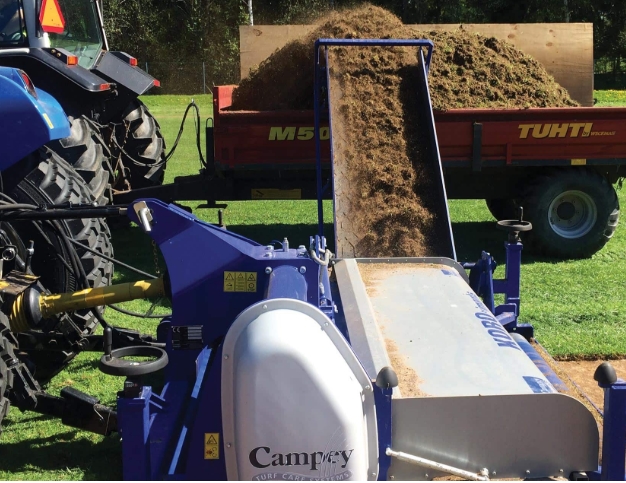

The new angled cross conveyor has been introduced to move material evenly with perfect belt tracking, whilst the weight of the machines has been reduced using a removable 100kg that greatly improves the overall weight balance.

This redistribution of weight means a much smaller tractor can be used to run the KORO® FIELDTOPMAKER®, because the centre of gravity has been shifted towards the tractor making it easier to lift. Even when the weight is removed the machine still has improved balanced against previous models.

Maintaining the new range of KORO® FIELDTOPMAKER®’s has also been enhanced to ensure working reliability. A modular set-up allows the machine to run without belts and the strong state of the art driveline is maintenance free.

All of the range can facilitate the enhanced patented UNIVERSE® rotor which offers improved clean up and greater surface hygiene. Previous rotors will fit on the 2.0m and 2.5m models but not on the 1.2m or 1.6m.

Features

  • Specifically designed for all sports turf and golf OFFICIAL DISTRIBUTOR campeyturfcare.com course maintenance
  • Solid locking pins for consistency
  • Improved clean up due to new re-designed UNIVERSE® rotor and angled cross conveyor
  • Large diameter rollers for stability and super depth control



KORO® TERRAPLANE® Rotor

The Terraplane Rotor® now leads the way in accuracy of cut, blade durability and surface hygiene. Coupled with the KORO® FTM®’s infinitely fine, depth adjustment (accurate to 0.1mm), the Terraplane® Rotor will shave off the precise amount of organic material required, leaving a clean, smooth and even surface. The durability of the tungsten-faced blades prolongs the accuracy of cut, and reduces the down-time associated with changing blades. The unrivalled surface hygiene of the Terraplane® Rotor eliminates any clean-up pass and saves time, labour and fuel costs.

  • Accurate planing of surface down to 50mm deep.
  • Unrivalled surface hygiene for a clean, smooth surface.
  • Tungsten faced blades for increased durability & reduced down-time.
  • Terraplane® rotor N2008947



Campey™ Universe® Rotor

The UNIVERSE® rotor was initially developed for the removal of organic build up from the surface of semi-synthetic natural turf pitches that are now common in professional stadiums around the world.

The UNIVERSE® rotor (fitted with 10mm blades) achieves excellent surface hygiene without damaging the exposed synthetic/hybrid fibres. In one pass the whole annual renovation process to include dressing with 40/50 ton of sand, fertilising and overseeding can be carried out in one day instead of 4/5 days, with the process known as Koro UNIVERSE® Fraize Mowing.

UNIVERSE® Fraize Mowing on natural/hybrid surfaces allows the turf professional to maintain the original quality of the surface.

  • Removing organic debris from semi-synthetic grass pitches
  • Campey™ Universe® Rotor Fraize Mowing on warm and cool season grasses
  • 3 different thicknesses of blades available
  • Tungsten-tipped blades for increased durability
  • Universe® rotor International Publication Number WO2013/027005 WO2014/064407 WO2014/184512

The KORO® Story – A Brief History

The brainchild of Ko Rodenberg, the KORO® FIELDTOPMAKER® (KORO® FTM®) came to market in 1997 as the key machine in a renovation programme designed to improve pitch quality and extend playing hours on natural turf soccer pitches.

The acquisition of the manufacturing rights by Imants in 2009 and the fine-tuning of the “Fraise mowing” renovation practice has led to the design of a new range of rotors. Campey Turf Care Systems has been at the forefront in developing the Imants KORO® FIELDTOPMAKER® into a system that can be used on a wide range of surfaces for a number of different renovation practices. “Koro-ing” is now an established renovation practice worldwide!





Centaur Asia Pacific is the distributor for Campey Turf Care Systems in Hong Kong, Macau, Singapore and Brunei.

Updated on: 19 July 2024

Specifications

KORO FTM 1.2

Working depth 0-50mm deep ( depending on rotor )
No. of Universe® blades (10mm) 121 on every holder
No. of Universe® Finesse blades
(3mm) 121 on every holder*
(5mm) 121 on every holder*
No. of Terraplane® blades 36
Weight 765kgs (fitted with Universe Rotor)
Power requirement 35 – 50hp. Creep speed or hydrostatic drive required.
Tractor requirement 540 pto. 30ltr/min hyd. flow. 2 x double acting spool
Operating speed (approx)
0 – 2.4mph (0-4kph) for Universe® rotor
0 – 3.7mph (0-6kph) with Universe® Finesse blades
0 – 1.2mph (0-2kph) with Terraplane® rotor
Options Mid mounted roller (32kg)

*different configurations are available



KORO FTM 1.6

Working width 1.60m
Overall / transport width 2.88m
Working depth 0-50mm deep ( depending on rotor )
No. of Universe® blades (10mm) 161 on every holder
No. of Universe® Finesse blades
(5mm) 161 on every holder*
(5mm) 161 on every holder*
No. of Terraplane® blades 48
Weight 880kgs (fitted with Universe Rotor)
Power requirement 45 – 65hp. Creep speed or hydrostatic drive required
Tractor requirement 540 pto. 30ltr/min hyd. flow. 2 x double acting spool
Operating speed (approx)
0 – 2.4mph (0-4kph) for Universe® rotor
0 – 3.7mph (0-6kph) with Universe® Finesse blades
0 – 1.2mph (0-2kph) with Terraplane® rotor
Options
Mid mounted roller (42.2kgs)

*different configurations are available



KORO FTM 2.0

Working width 2.00m
Overall / transport width 2.55m
Working depth 0-50mm deep ( depending on rotor )
No. of Universe® blades (10mm) 202 on every holder
No. of Universe® Finesse blades (3mm or 5mm) 202 on every holder (101 in half-set)
No. of Terraplane® blades 60
No. of digging blades 64 (32 x LH, 32 x RH)
No. of scarifying blades 112 (1.5mm thick or 3mm thick)
Scarifying blade spacing 34mm (3mm blades)
Weight 1,330kgs depending on rotor fitted.
Power requirement 70 – 90hp. Creep speed or hydrostatic drive required
Tractor requirement 540 pto. 30ltr/min hyd. flow. 2 x double acting spool
Operating speed (approx)
0 – 2.4mph (0-4kph) for Universe® rotor
0 – 3.7mph (0-6kph) with scarifying blades
0 – 1.2mph (0-2kph) with Terraplane® or Digging rotor
Options
Mid mounted roller (54kg)

* different configurations are available



KORO FTM 2.5

Working width 2.50m
Overall / transport width
3.00m
Working depth 0-50mm deep ( depending on rotor )
No. of Universe® blades (10mm) 252 on every holder
No. of Universe® Finesse blades (3mm or 5mm) 252 on every holder (126 in half-set)
No. of Terraplane® blades 75
No. of digging blades 80 (40 x LH, 40 x RH)
No. of scarifying blades 148 (1.5mm thick or 3mm thick)
Scarifying blade spacing 34mm (3mm blades)
Weight 1,530kgs depending on rotor fitted.
Power requirement 95 – 120hp. Creep speed or hydrostatic drive required
Tractor requirement 540 pto. 30ltr/min hyd. flow. 2 x double acting spool
Operating speed (approx)
0 – 2.4mph (0-4kph) for Universe® rotor
0 – 1.2mph (0-2kph) with Terraplane® or Digging rotor
0 – 3.7mph (0-6kph) with scarifying blades

* different configurations are available



Percentage removed with different blades and configurations
of the Campey™ Universe® Rotor

10mm

  • With the 10mm blades on 4 spiral you remove 100% of the surface
  • With the 10mm blades on 2 spiral you remove 50% of the surface with 10mm gone 10mm still there

5mm

  • With the 5mm blades on 4 spiral you remove 50% of the surface with 5mm gone 5mm still there
  • With the 5mm blades on 2 spiral you remove 25% of the surface with 5mm gone and 15mm still there

3mm

  • With the 3mm blades on 4 spiral you remove 30% of the surface with 3mm gone and 7mm still there
  • With the 3mm blades on 2 spiral you remove 15% of the surface with 3mm gone and 17mm still there
