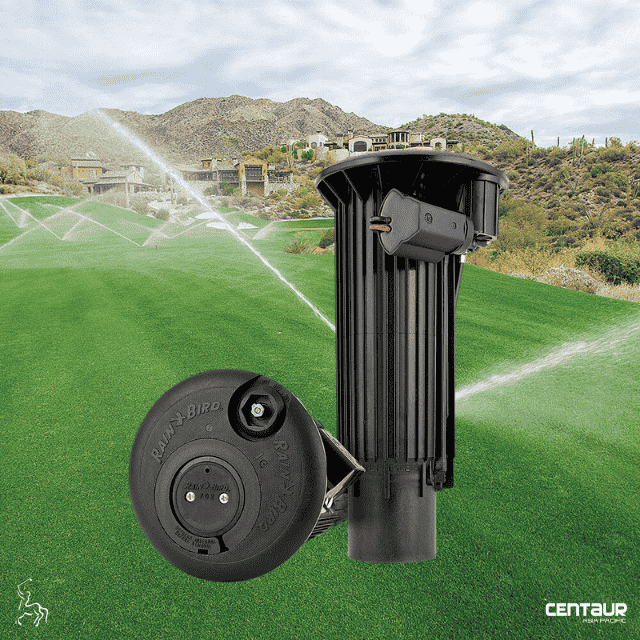

Rain Bird 702/752 Series Rotors

Rain Bird 702/752 Series Rotors

Full Circle/Part Circle Golf Rotors

The NEW Rain Bird 702/752 Series Rotors offer unmatched flexibility, industry-leading uniformity and a consistent rotation speed, the full-circle 702 Series and full/part-circle 752 Series make it easier to maintain flawless turf. Turn-of-a-screw adjustments and top serviceability save you time and labour costs season after season.

Consistent Uniformity of Water Applied

The self-adjusting stator automatically modifies flow to control rotation speed, optimizing performance and providing consistent rotation speed.

Easy Arc Adjustments

Rapid-Adjust Technology allows you to handle arc adjustments with the turn of a screw, while MemoryArc lets you shift between full- and part-circle operation in seconds.

Features

Peace of Mind Today. Continuous Innovation for the Future.

Top Serviceability

  • Pressure regulation and arc adjustments can be made from the top of the rotor, requiring only a common screwdriver.
  • Quick nozzle changes can be completed in the field in just seconds.
  • Internal components can be quickly accessed from the top of the rotor.

Unrivaled Efficiency

  • The 702 Series offers reliable full-circle coverage while the 752 Series delivers ultimate full-circle/part-circle versatility and easy arc adjustments.
  • Self-adjusting stator automatically modifies flow after nozzle changes, saving your crew time.
  • Choose between electric and Integrated Control (IC) models.

Lasting Performance

  • A GBS25 solenoid delivers unrivalled 25kV surge protection and built-in filtration for an extra level of defence from debris.
  • Every model has been exhaustively tested and held to the highest standards in the industry.




About Rain Bird

Rain Bird Corporation is a leading global manufacturer and provider of irrigation products and services headquartered in Azusa, California. The privately held company was founded in 1933 during California’s agricultural boom.  Since the beginning, Rain Bird has produced and offered the industry’s broadest range of irrigation products for farms, golf courses, sports arenas, commercial developments and homes in more than 130 countries around the world.

Our commitment to The Intelligent Use of Water™ shows not only in our high-quality products but also through our expert water management professionals who share their passion for water conservation. They provide education, training, and services for the industry and communities around us, creating long-term, responsible partnerships with our customers, vendors, and the cities in which we live.  These efforts along with our high-quality products have been recognised with numerous awards throughout the years.

The Rain Bird Mission

  • Our mission at Rain Bird is to be the global irrigation industry leader by:
  • Profitably providing defect-free, high-value products and services that promote the intelligent use of water for worldwide irrigation applications.
  • Achieving customer satisfaction by meeting or exceeding expectations.
  • Being a responsible employer respected by employees and the community.
  • Enabling employees to be the best they can be.





Centaur Asia Pacific is the distributor for Rain Bird (Golf) in Singapore.

Updated on: 17 September 2024

Specifications

  • Rain Bird golf rotors are designed specifically for large-scale irrigation installations such as golf courses.  If your irrigation needs are smaller please contact us for the right solution.

Radius

  • Rain Bird 702 Series: 59' to 77' (18.0 m to 23.5 m)
  • Rain Bird 752 Series: 19' to 84' (5.8 m to 25.6 m)

Flow Rate

  • Rain Bird 702 Series: 16.9 to 42.9 gpm (1.06 to 2.70 l/s); (3.83 to 9.73 m³/h)
  • Rain Bird 752 Series: 6.7 to 47.0 gpm (0.42 to 2.97 l/s); (1.51 to 10.68 m³/h)

Arc

  • Rain Bird 702 Series: Full-circle, 360°
  • Rain Bird 752 Series: Full-circle, 360°, Adjustable 30-345°

Maximum Inlet Pressure

  • 150 psi (10.3 bars)

Pressure Regulation Range

  • 60 to 100 psi (4.1 to 6.9 bars)

Factory Pressure Settings

  • Available in 70 and 80 psi (4.8 and 5.5 bar)

Maximum Stream Height

  • Rain Bird 702/752 Series: Standard: 17' (5.2 m), Wind Tolerant: 10' (3.1 m)
  • Rain Bird 752 Series: Low Angle: 12' (3.7 m)

Nozzle Trajectory

  • Rain Bird 702/752 Series: Standard: 25°, Wind Tolerant: 12°
  • Rain Bird 752 Series: #18 & Low Angle Nozzle: 15°

Inlet Threads

  • 1.25" (32 mm) ACME female thread

Rotation Time

  • 180° in ≤ 90 seconds, 80 seconds nominally

Solenoid

  • 24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)
  • 60 cycle: 0.25 amp holding current (6.0 VA)
  • 50 cycle: 0.32 amp holding current (7.7 VA)

Surge Resistance

  • Up to 25KV standard on electric models with the GBS25 solenoid

Top-Serviceable Internal Components

  • Yes

High & Low Flow Valves to Ensure Optimal Performance

  • 752 Series Nozzles 18, 20, 22, 24, and 26 require a low-flow valve which comes preinstalled on rotors during manufacturing.
  • 752 Series Nozzles 28, 32, 36, 40, 44, 48 and 50 require a high-flow valve which comes preinstalled on rotors during manufacturing.

Dimensions

  • Body Height: 12.0" (30.5 cm)
  • Pop-Up Height to Mid-Nozzle: 2.6" (6.6 cm)
  • Top Diameter: 6.25" (15.9 cm)

Model Comparison

E: Electric

IC: Integrated Control
