Rain Bird® IC CONNECT™ lets you extend the reach and effectiveness of your system by enabling you to integrate, automate and interact with various sensors and field equipment.
Easy Expansion
- Add components anywhere there is MAXI™ Wire
- Manage field equipment
- Connect to multiple sensors

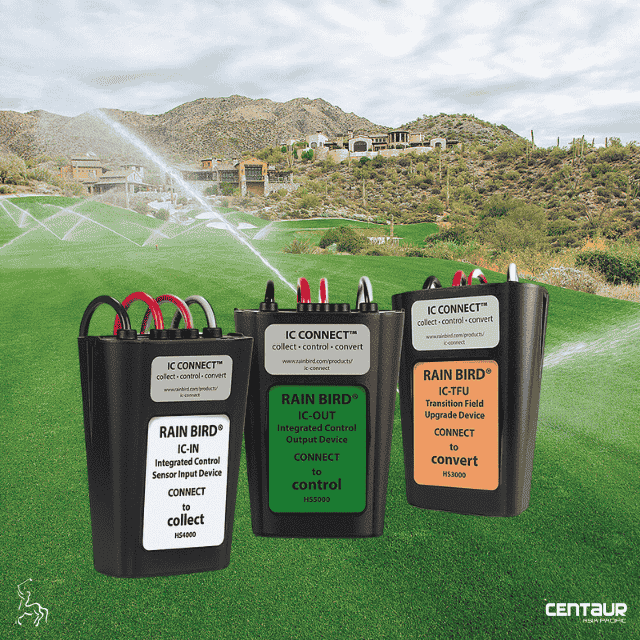

IC-IN Input Device
Collect information from multiple field sensors across your course:
- Rain cans
- Flow sensors
- Lake level sensors
IC-OUT Output Device
Centralize ON and OFF control of non-irrigation products around the property:
- Transfer pumps
- Greens fans
- Fountains and water features
- Lighting
IC-TFU Device
Control DC Latching solenoids with the proven IC System
Features
IC-IN Integrated Control Sensor Input Device
- The Rain Bird® IC-IN Integrated Control Sensor Input Device (IC-IN) is an interface device for the Rain Bird® IC System™ that receives readings from sensor devices with output types of: 0-10VDC voltage, 4-20mA DC Current, contact closure, or pulse output (counting, rate). The IC-IN translates sensor readings into the IC system protocol and communicates the sensor readings to the Central Control computer on a MAXI™ wire path; further enhancing the industry leading capability of the Rain Bird IC System.
IC-OUT Integrated Control Output Device
- The Rain Bird® IC-OUT Integrated Control Output Device (IC-OUT) is an output device for the Rain Bird IC System that enables activation of external equipment. The IC-OUT provides a pulse output similar to the ICM which can be used to activate DC latching solenoids or a DC Latching Relay for activation of high power devices. IC-OUT employs two-way communication using the IC system protocol on a MAXI™ wire path to receive commands from the Rain Bird central control computer to turn on/off external devices; further enhancing the industry-leading capability of the Rain Bird IC System.
Diverse Applications
- Integrated with Rain Bird’s innovative Central Control software IC-IN can be used to view and respond to Smart Sensors™, flow (Flo-Watch™), rain (Rain Watch™), pressure, temperature, wind speed, reservoir levels and more. IC-OUT can be used to control external devices including pumps, fans, gates, fountains, lights, motorized valves, DC latching solenoids and more.
- Simple and Elegant Design
- IC-IN and IC-OUT can be connected to any IC System MAXI™ wire path (wire path can be shared with multiple ICM, IC-OUT or IC-IN devices).
Design Flexibility
- When connected to an ICI interface, IC-IN and IC-OUT can be used in a hybrid design configuration with Satellite field controllers and/or decoders.
Diagnostics
- In all sensor configurations, IC-IN status can be polled from the central software to confirm communication. IC-OUT supports the familiar status, voltage, on/off, and quick check diagnostics from the central software.
About IC System™
You can’t be everywhere at once. The Rain Bird® Integrated Control System (IC System) changed the remote irrigation game and continues to offer intelligent benefits other systems can’t match. Connect your Central Control directly to rotors and valves to streamline installations, check diagnostics and troubleshoot from anywhere via smartphone, tablet or computer. Make the smarter choice with IC System for powerful, precise property management.
Intelligent Communication
- In an easy-to-use design, IC CONNECT™ simplifies course management. Collect crucial data from the field and centralize control of greens fans, lighting, fountains and water features.
Intuitive Connection
- Your Central Control directly connects to your rotors and valves and minimizes complexities, simplifies troubleshooting, saves on labor costs and improves aesthetics by eliminating satellites and hubs from your course.
Instant Confidence
- Advanced two-way communication from the field to your Central Control catches issues before they become problems and provides assurance your system is working–so you can focus on success.
About Rain Bird
Rain Bird Corporation is a leading global manufacturer and provider of irrigation products and services headquartered in Azusa, California. The privately held company was founded in 1933 during California’s agricultural boom. Since the beginning, Rain Bird has produced and offered the industry’s broadest range of irrigation products for farms, golf courses, sports arenas, commercial developments and homes in more than 130 countries around the world.
Over the past eight decades, Rain Bird has been awarded more than 450 patents worldwide, including the first in 1935 for the original horizontal action impact drive sprinkler (U.S. Patent #1,997,901), which revolutionized the food production industry and ushered in a new era in irrigation. In fact, the original impact sprinkler was designated a historic landmark in 1990 by the American Society of Agricultural Engineers.
Rain Bird’s engineering, marketing, manufacturing, and sales teams have worked together to develop innovative water-conserving products that include irrigation sprinklers, dripline, pumps, and timers/controllers. Today, we offer over 4,000 water-saving irrigation products and services with offices and manufacturing facilities in Arizona, Alabama, Mexico, France, and elsewhere around the world.
Our commitment to The Intelligent Use of Water™ shows not only in our high-quality products but also through our expert water management professionals who share their passion for water conservation. They provide education, training, and services for the industry and communities around us, creating long-term, responsible partnerships with our customers, vendors, and the cities in which we live. These efforts along with our high-quality products have been recognized with numerous awards throughout the years.
The Rain Bird Mission
- Our mission at Rain Bird is to be the global irrigation industry leader by:
- Profitably providing defect-free, high-value products and services that promote the intelligent use of water for worldwide irrigation applications.
- Achieving customer satisfaction by meeting or exceeding expectations.
- Being a responsible employer respected by employees and the community.
- Enabling employees to be the best they can be.
Centaur Asia Pacific is the distributor for Rain Bird in Singapore.
