Redexim Double Disc Overseeder 1430A

Redexim Double Disc Overseeder 1430A

The Redexim Double Disc Overseeder has two rows of discs to cut grooves 30mm apart in the soil, seed is accurately delivered into the groove before the roller closes the groove to protect seed. With a single hopper & easy seed rate adjustment, the DD range is an obvious choice for operators.

  • Excellent ground coverage
  • Suitable for a range of seed types

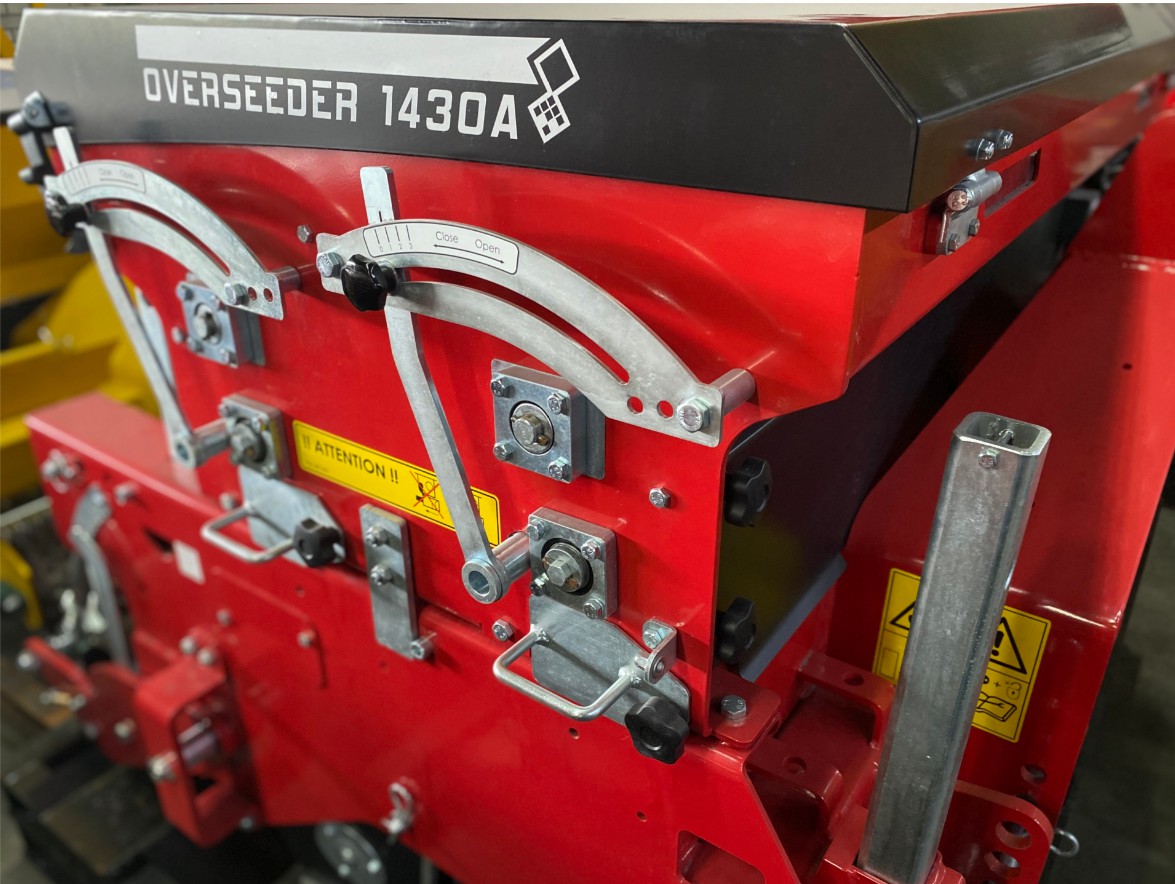

  • Easy to adjust application rate
  • Utilise the optional bogie wheel kit for tractors without sufficient lift capacity



Standard components

  • Toolbox and manual x 1




Disc Seeding

Disc Overseeders open the soil and drop the seed accurately in a groove before the roller closes the groove to protect the seed and germination to start. This way you can make sure your precious seed is safe from birds and out of the way of the wind thus guaranteeing a good germination rate.

Are the high wear areas of your turf suffering from bare spots?

During the season-high traffic areas such as entry and exit points, the center of football, rugby fields, soccer, lacrosse goals, golf greens, and outfield areas of baseball diamonds can get worn out. In such cases overseeding these areas as the grass thins can help avoid the formation of bare spots. The process of adding seed to or over existing turf can be accomplished in a variety of ways. Overseeding can be carried out prior to the playing season commencing or to address problem areas that emerge throughout the season. The two basic seeding methods to create a seedbed within the existing turf are disc seeding and dimple/ spike seeding.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 28 March 2022

Specifications

SKU 122.140.002
Working width (m) 1.41
Working width (inch) 55.5
Max. Working depth (mm) 30
Max. Working depth (inch) 19 - 1.18
Max. Working speed (km h) 12
Working speed (mph) 7.5
Weight (kg) 1340
Weight (lbs) 2954
Disc spacing (mm) 30
Disc spacing (inch) 1.18
Hopper capacity (ltr) 260
Hopper capacity (cu.ft.) 9.18
Number of seeding elements 47
Min. Tractor HP required 40
Min. lifting capacity (kg) 1340
Max. capacity ( m² hr) 16920
Max. capacity (ft² hr) 182125
Three-point hitch 3-point CAT 1-2
Lubricant EP2
Min. lifting capacity (lbs) 2954



Options

Description Quantity Article number
Bogey Wheel Kit 1430 1 222.140.002
Outside weigth kit os 1430A 352kg 1 222.140.004
Inside weight kit os 1430A 192 KG 1 222.140.006
