Redexim Easy-Core 104

Redexim Easy-Core 104

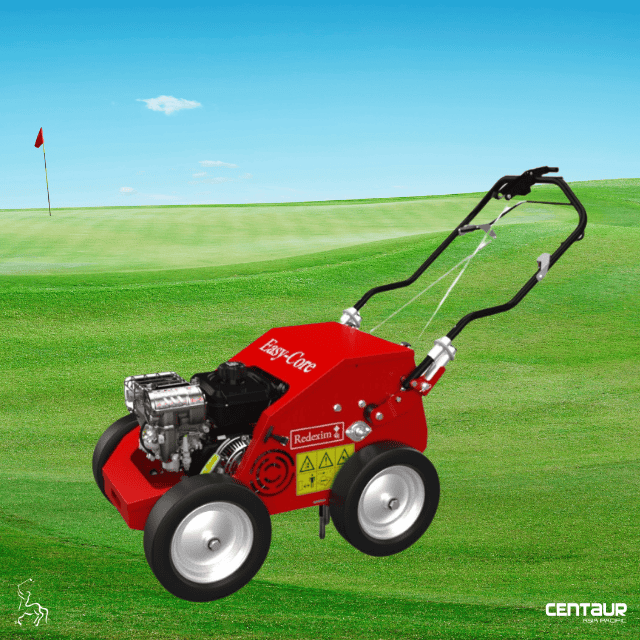

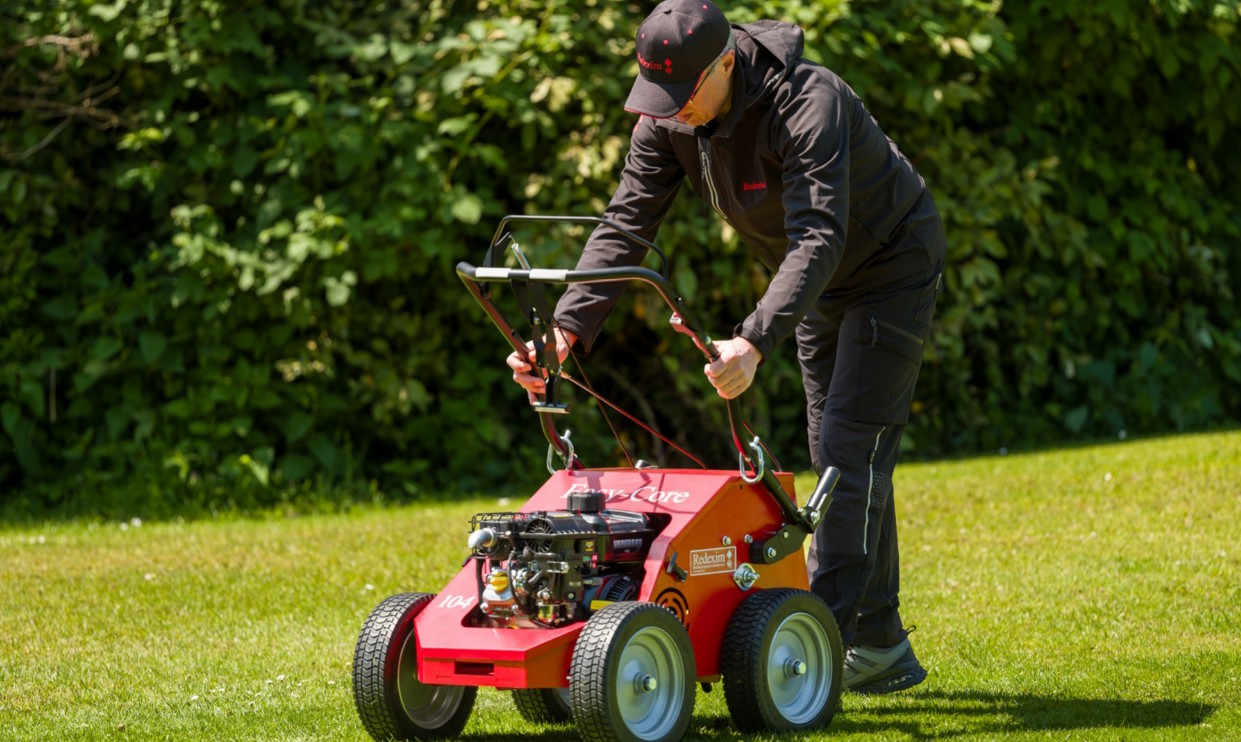

The Easy-Core is a pedestrian punch-action aerator suited to small areas and places with restricted access. The coring tines rapidly remove soil to aid de-compaction while optional solid tines can be fitted should soil conditions require. The Easy-Core’s handles can be folded to aid transport.

  • Great in small areas
  • Quick to cover the ground
  • Very manoeuvrable
  • Consider a tractor mounted aerator should you require increased working depth



Standard components

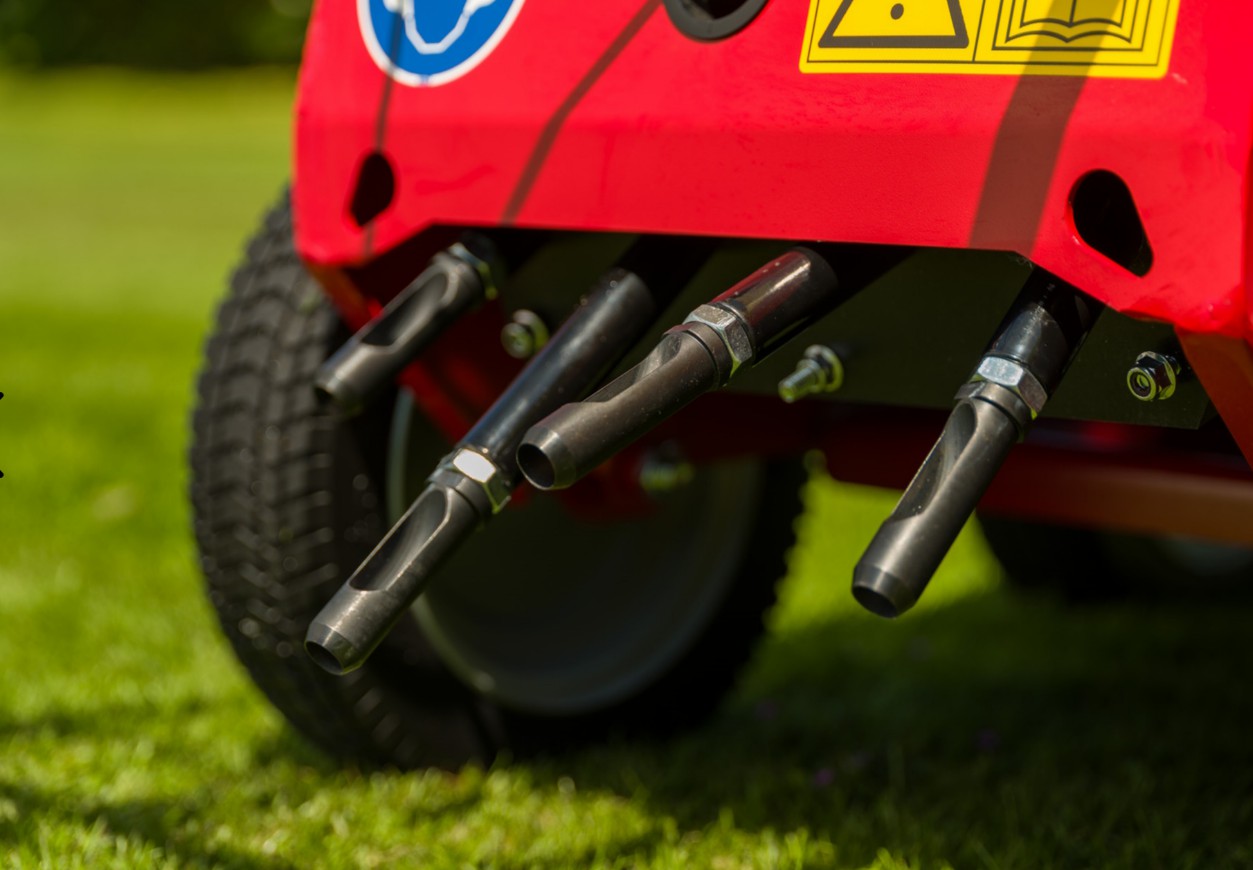

  • Hollow Tine 22/16 x 70mm E91.909.597 x 4




Core Aeration

The process of core aeration uses a hollow or coring tine to remove soil and thatch from the surface, the extracted material can be redistributed across the turf surface with a Speed-Brush or Top-Brush; alternatively, the cores can be removed from the surface with the Core-Collector. The holes can also be back-filled with sand by a Topdresser as part of a soil exchange program and to retain surface drainage channels.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 15 March 2022

Specifications

SKU 117.010.400
Engine B&S 5.5 HP
Working width (inch) 14.2
Max. Working depth (mm) 70
Max. Working depth (inch) 2.75
Weight (kg) 118
Weight (lbs) 260
Hole spacing distance driving direction (mm) 90 x 150
Hole spacing distance driving direction (inch) 3 5/8 x 6
Max diameter solid tine (mm) 22 x 70
Max diameter solid tine (inch) 7/8 x 2 3/4
Max diameter hollow tine (mm) 22 x 16 x 70
Max diameter hollow tine (inch) 5/8 x 3/8 x 2 3/4
Number of tines 4
Max. capacity ( m² hr) 2043
Max. capacity (ft² hr) 21990
Engine Oil SAE 30



Options

Description Quantity Article number
Solid Tine 22x70mm 4 E91.919.499
Hollow Tine 16/9.5 x 90mm 4 E91.919.590
Solid Tine 9.5x70mm 4 E91.919.591
