Redexim Level-Spike 2200

Redexim Level-Spike 2200

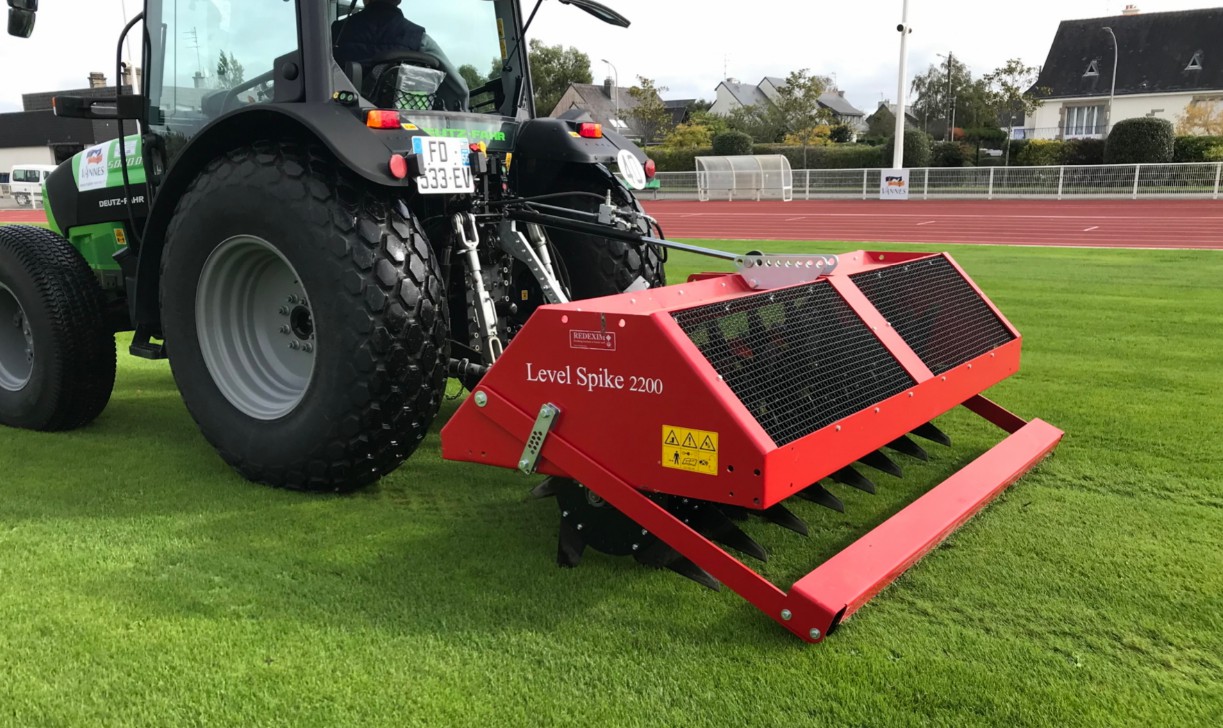

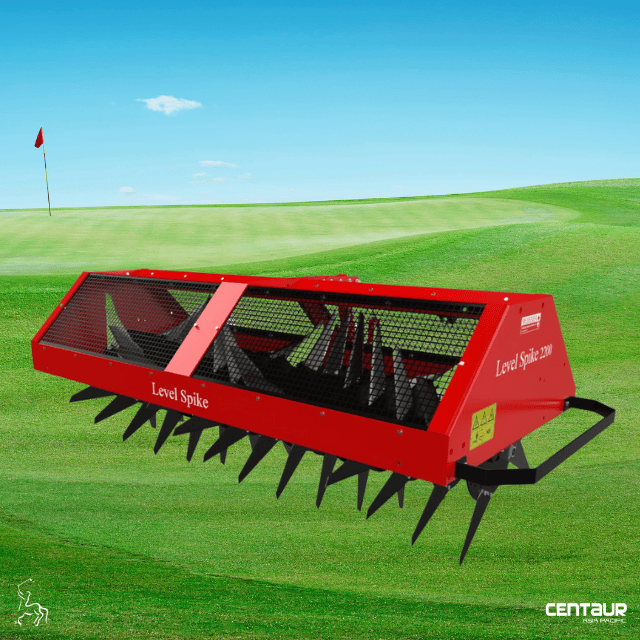

The Level-Spike is a fast and proven machine for the creation of aeration slits to aid drainage and allow air into turf surfaces. The Level-Spike can achieve a maximum depth of 25cm / 10” and as a range of optional knives to alter the slit pattern including hollow tines to pull cores

  • Simple and effective
  • Optional weight transfer kit for tough conditions
  • Many blade options
  • Consider the Level-Spike 1700 for a smaller areas



Standard components

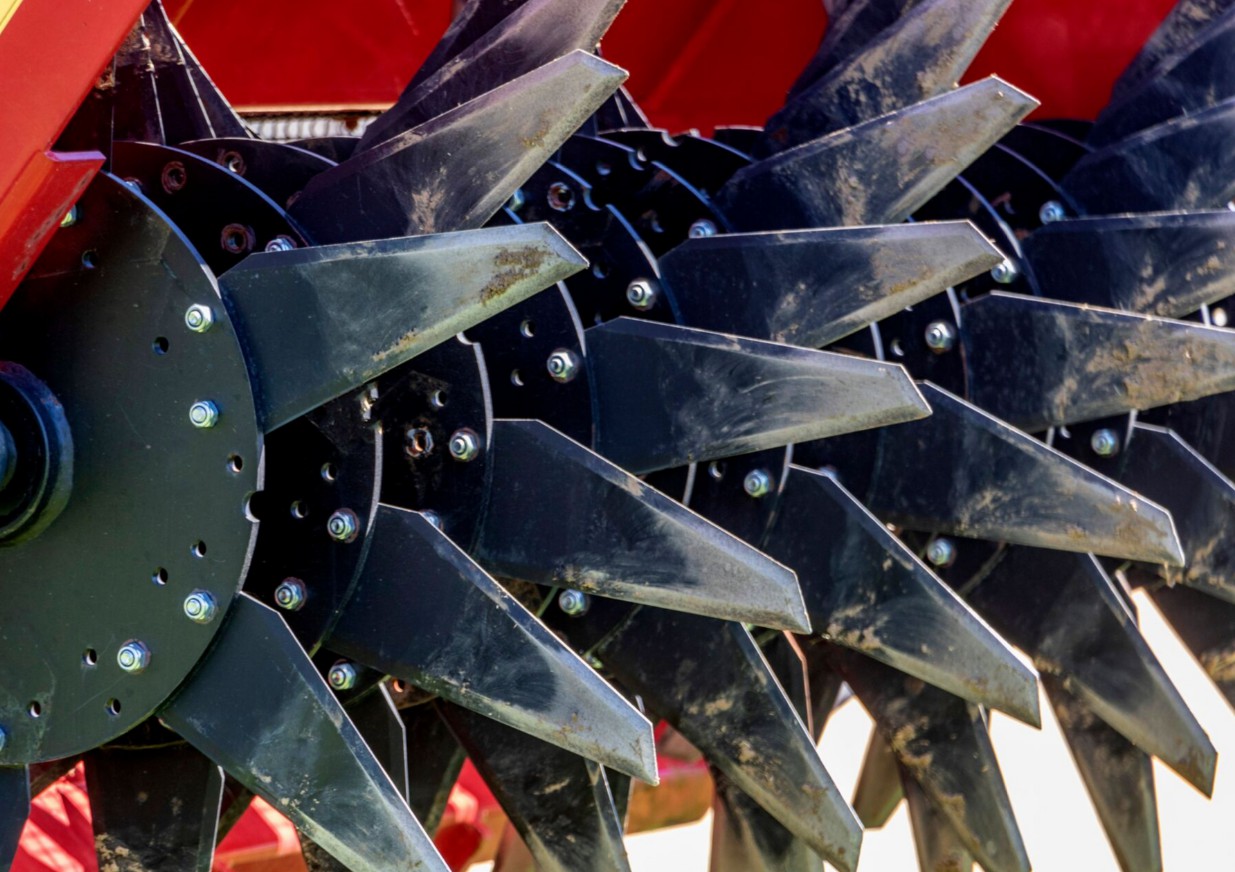

  • Deep slit knife kit 213.220.010 x 64
  • Toolbox and manual x 1




Spike Aeration

Spike or slit aeration is a passive process to create air and drainage channels at the top of the soil structure. The blades on the slitter enter the ground to create a void before being extracted cleanly leaving little surface disruption, this method of aeration is fast and adaptable to different soil and climate types. The Redexim range of slitters has multiple blade options to suit a range of requirements.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 17 March 2022

Specifications

SKU 113.220.000
Working width (m) 2.4
Working width (inch) 96
Max. Working depth (mm) 250
Max. Working depth (inch) 10
Weight (kg) 495
Weight (lbs) 1090
Slit distance between the knives (mm) 150
Slit distance between the knives (inch) 6
Hole spacing distance driving direction (mm) 330
Hole spacing distance driving direction (inch) 13
Min. Tractor HP required 45
Min. lifting capacity (kg) 600
Min. lifting capacity (LBS) 1300
Max. capacity ( m² hr) 12000
Max. capacity (ft² hr) 108000
Three-point hitch 3-point CAT 1-2
Lubricant EP 2



Options

Description Quantity Article number
Rear roller kit 1 213.220.002
Truckster knife kit 64 213.220.004
Additional truckster knife kit 32 213.220.006
Fine slit knife kit 360 213.220.008
Additional Deep Slit Knife Kit 32 213.220.012
Hollow tine kit 96 213.220.014
Weight Transfer Kit (Can Be Used Without Wheel Kit 1 213.220.016
Twist deep slit knife kit 64 213.220.018
Additional twist deep slit knife kit 32 213.220.020
