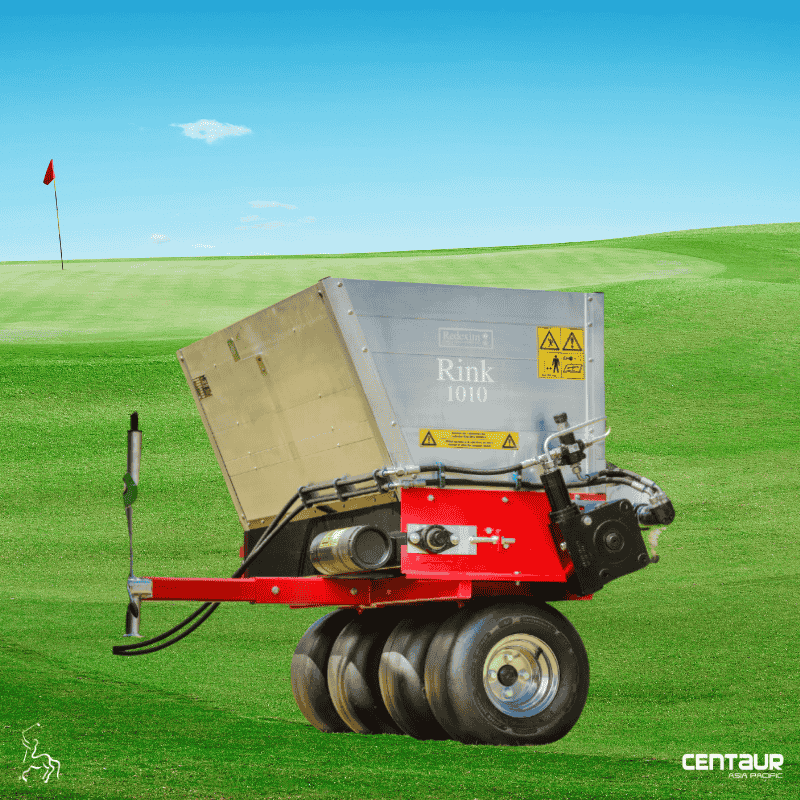

Redexim Rink 1010

Redexim Rink 1010

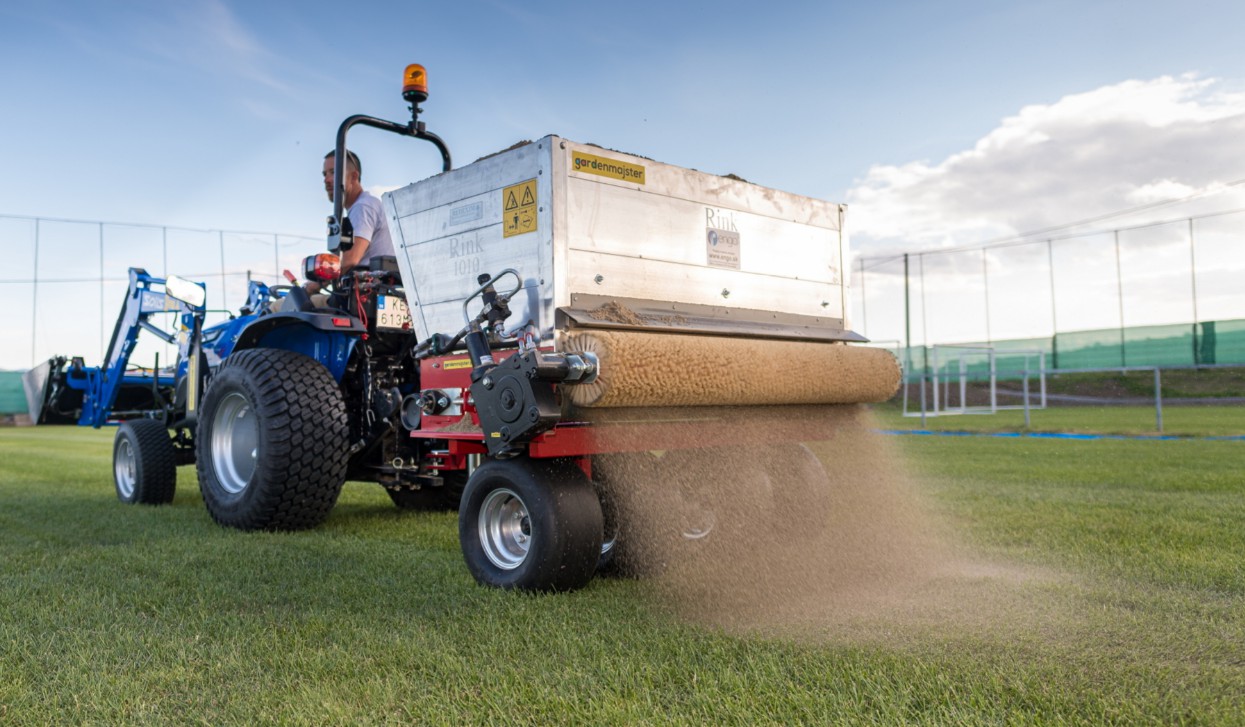

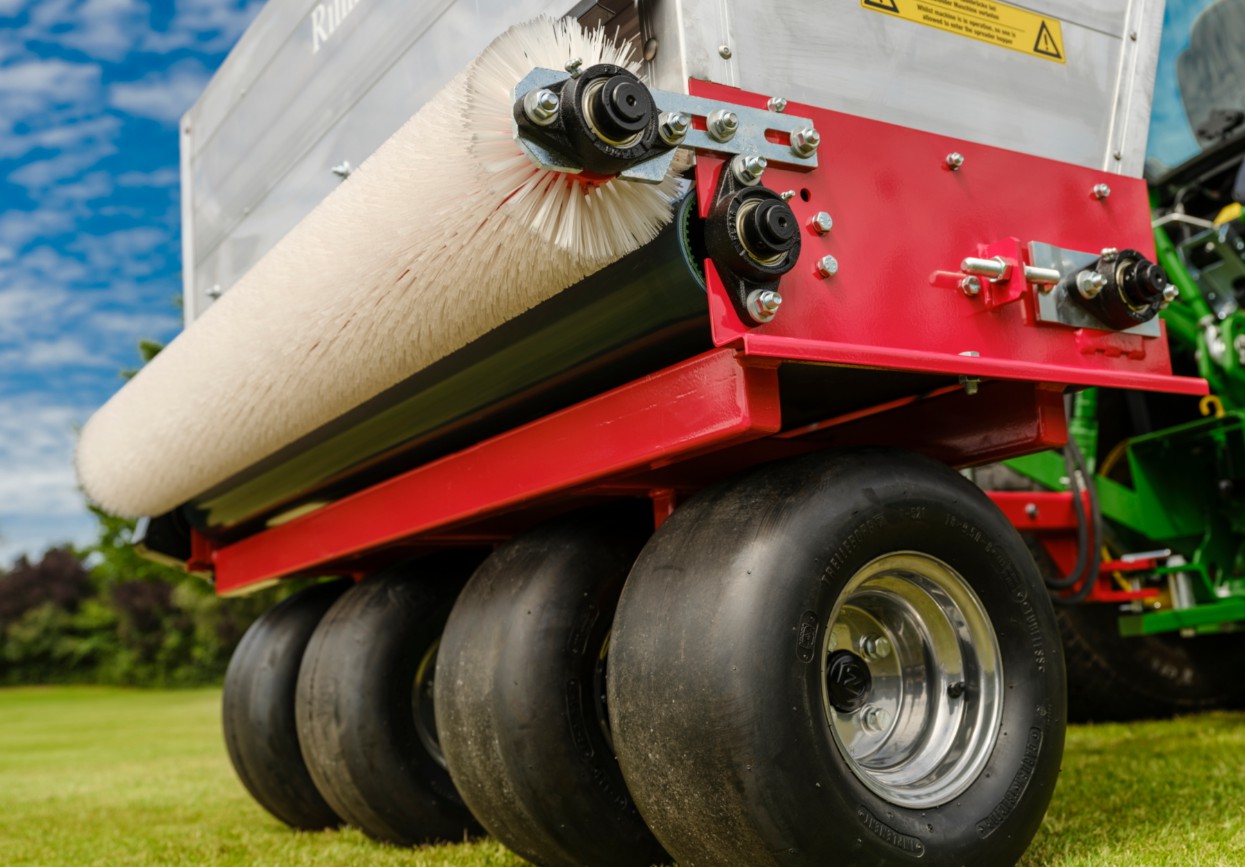

The Rink 1010 brush top dresser accurately distributes wet or dry materials. The rotating brush on the rear of the unit sprays the material evenly breaking up any clumps in the process. With a 150cm (59″) working width, the 1010 is well suited to smaller chassis tractors and smaller areas.

  • 4 Wheels to reduce ground pressure
  • Large range of options
  • Works with tractors as small as 20HP
  • See the Rink 1210 for a larger unit



Standard components

  • Toolbox with combi tool and manual x 1




About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 30 March 2022

Specifications

SKU 133.101.000
Operation Towed version
Working width (m) 1.5
Working width (inch) 59
Hopper capacity (FT3) 26.5
Max. Working speed (km h) 30
Working speed (mph) 18.64
Weight (kg) 270
Weight (lbs) 595
Min. Tractor HP required 20
Min. Oil supply of tractor (l min) 20
Min. Oil supply of tractor (US Gal min) 5.28
Min. Pressure (bar) 140
Min. Pressure (psi) 2030.52
Required connections 1x Double-acting hydraulic valve



Options

Description Quantity Article number
Seal plate for dry material 1 233.100.004
External oil supply unit incl. tank, pump and oil 1 233.100.002
Aluminium Hopper Extension kit, to 1,27m3, for (ru 1 233.100.016
Twistable draw bar 1 233.100.110
Synthetic Turf Infill kit (rake, brush and custom 1 233.100.010
