Redexim Rink DS1200

Redexim Rink DS1200

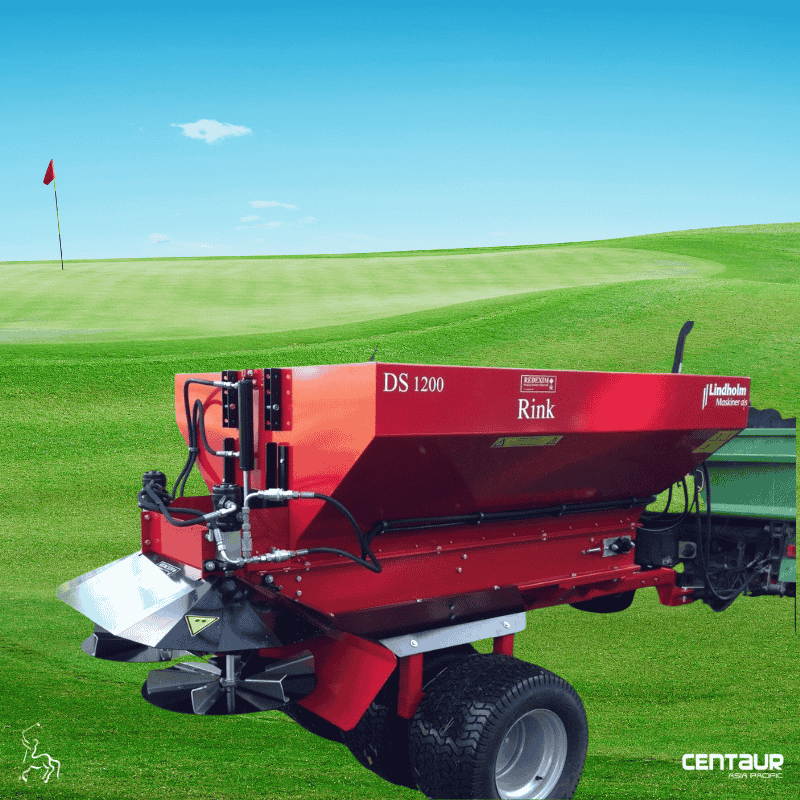

The Rink DS1200 disc top dresser has an internal conveyor belt which moves wet or dry material to the rear of the hopper where it is dropped onto the discs for spreading up to 12m (40′). The automatic rear gate opens & closes to prevent material being dropped when in transport ensuring no mess.

  • Four wheels on pivoting axles for stability and minimal ground disruption
  • Optional Electronic Control Panel
  • Steep hopper sides to prevent bridging of material
  • See the Rink DS800 Trailed for a smaller option



Standard components

  • Toolbox with combi tool and manual x 1




About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 30 March 2022



Specifications

SKU 133.120.000
Operation Towed version
Spreading width (mm) Up to 12000
Spreading width (inch) Up to 472
Hopper capacity (m3) 1.2
Hopper capacity (FT3) 42.4
Max. Working speed (km h) 25
Working speed (mph) 16
Weight (kg) 490
Weight (lbs) 1080
Min. Tractor HP required 25
Min. Oil supply of tractor (l min) 25
Min. Oil supply of tractor (US Gal min) 6.6
Min. Pressure (bar) 140
Min. Pressure (psi) 2030.52
Required connections 1x Double-acting hydraulic valve



Options

Description Quantity Article number
Dry sand cover plate 1 233.120.046
Cross conveyor belt 1 233.120.037
Electric control panel & connections to operate fr 1 233.120.040
Single side Disc Spreader kit 1 233.120.044
External oil kit 1 233.120.018
