Redexim Verti-Drain 1513

Redexim Verti-Drain 1513

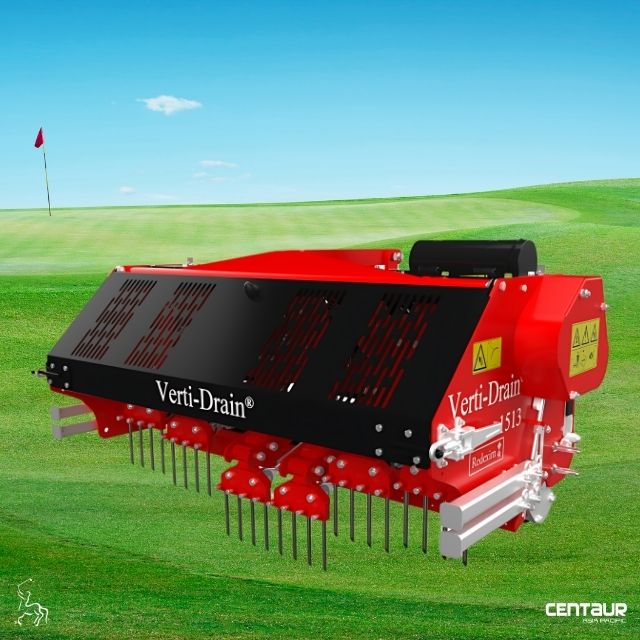

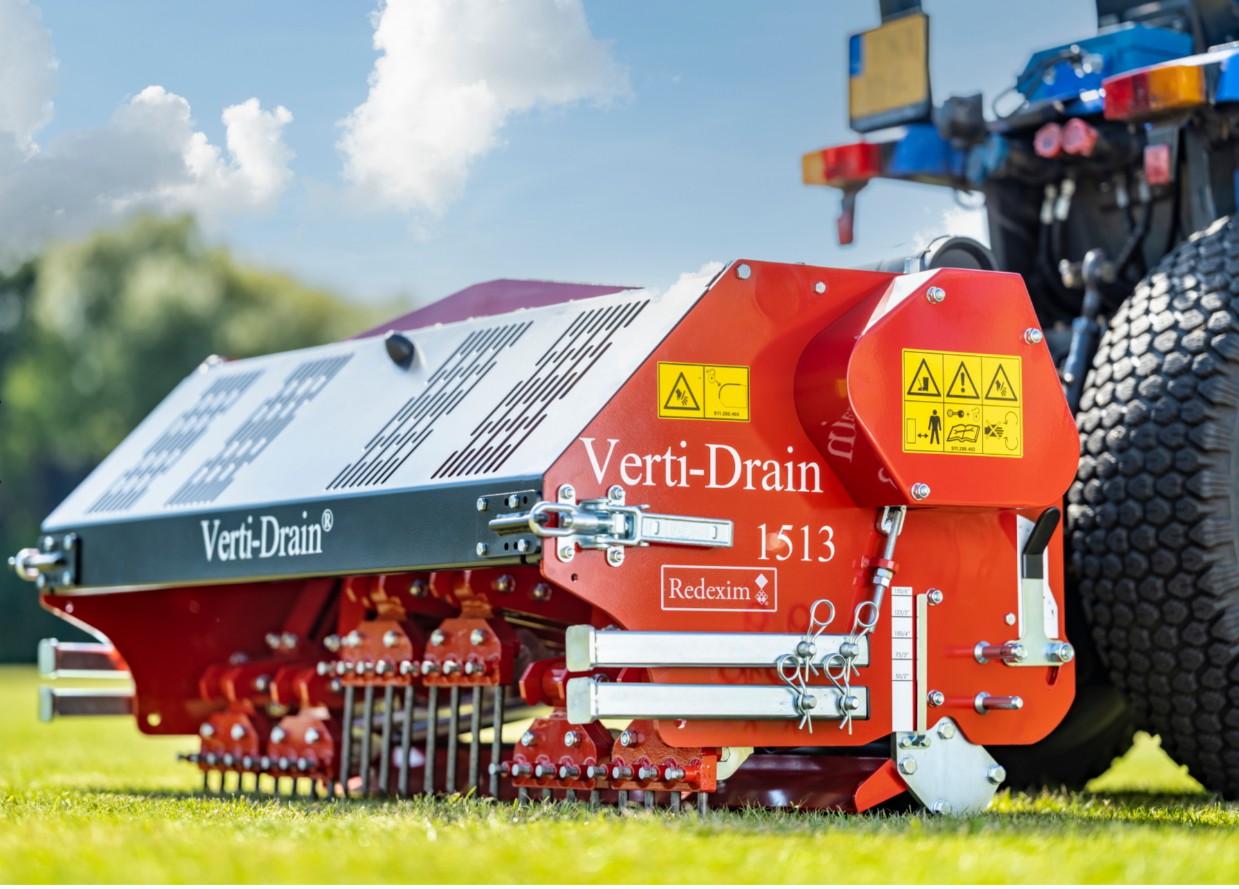

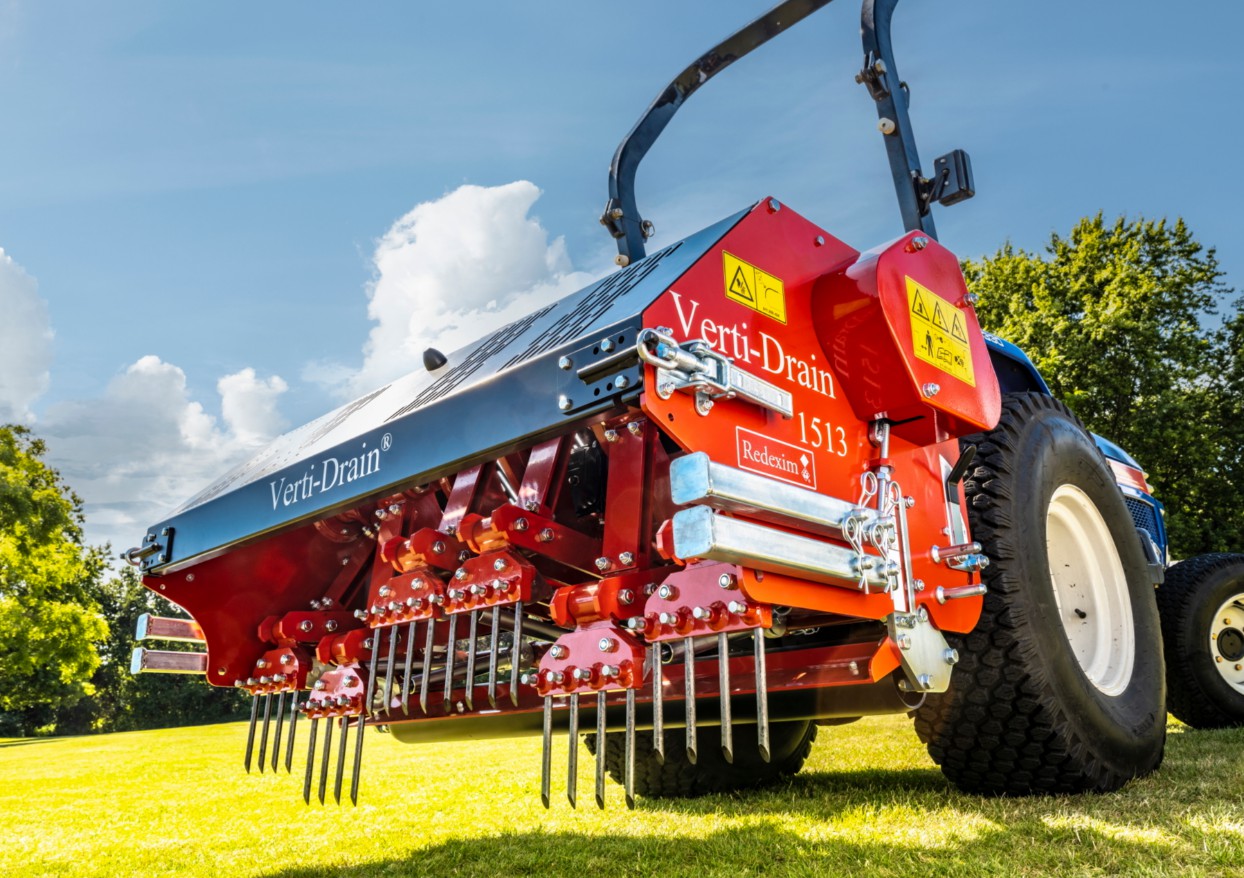

The lightweight Verti-Drain® 1513 can work to a depth of 6” / 150mm and is well suited to sensitive turf surfaces. The belt driven machine operates a high speed while giving a neat and consistent hole pattern. An optional rear roller can be added to smooth the surface and leave a neat finish

  • High-speed machine
  • Lightweight machine with low HP requirements
  • Integrated parking stands for ease of operation
  • If additional working depth is required, consider the 22 Series Verti-Drain



Standard components

  • Solid Tine 12x150mm (1/2x6") 311.112.150 x 24
  • Toolbox with combi tool and manual x 1
  • PTO Shaft x 1
  • Storage Legs x 1




Deep-Tine Aeration with Verti-Drain

An aeration method uses solid tines to create deep holes into the turf without removing any soil. The Verti-Drain insert a tine that kicks to gently lift and shatter the soil in a uniform manner to further break up compaction and create space in the soil profile for air, water, and grass plant roots.

The world-renowned Verti-Drain aerator was invented by Redexim more than 40 years ago. It has changed the method of soil aeration across the world, becoming the ‘must use’ for turf managers in their battle to aid turf growth in challenging environments.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 18 March 2022

Specifications

SKU 111.215.013
Working width (m) 1.32
Working width (inch) 52
Max. Working depth (mm) 150
Max. Working depth (inch) 6
Working speed at hole spacing 65 mm 2.12
Working speed at hole spacing 2-1 2 inch (mph) 1.3
Weight (kg) 448
Weight (lbs) 985
Hole distance with 12 mm tines (mm) 55
Hole distance with 1 2 x 6 inch tines (inch) 2.17
Hole spacing distance driving direction (mm) 25 - 125
Hole spacing distance driving direction (inch) 1-7.5
Max diameter solid tine (mm) 12 x 150
Max diameter solid tine (inch) 1/2 x 6
Max diameter hollow tine (mm) 19 x 150
Max diameter hollow tine (inch) 3/4 x 6
Min. Tractor HP required 25
Min. lifting capacity (kg) 650
Min. lifting capacity (LBS) 1450
Max. capacity with spacing 65 mm (m² hr) 2822
Max. capacity with spacing 2-1 2 inch (ft² hr) 30374
Three-point hitch 3-point CAT 1
Rpm Max. 540
Gearbox oil 80W90 - 0.9L
Lubricant EP 2
Dimensions (width mm) 970
Dimensions (height mm) 780
Dimensions (length mm) 1610
Dimensions (width inch) 38.2
Dimensions (height inch) 30.7
Dimensions (length inch) 63.4



Options

Description Quantity Article number
Windrow Kit for 15 Series 1 211.215.006
Rear Roller Kit for Verti-Drain 1513 1 211.215.004
Turf Hold Down Kit for 12mm tines 1 211.215.000
Turf Hold Down Kit for MTH 1 211.215.008
Solid Tine 5x125mm (3/16x5") - Requires Adapter 5mm tines (3/16") 314.205.043 x 24 24 311.105.125
Solid Tine 8x95 (5/16x 3 13/16") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.108.095
Solid Tine 8x95 (5/16x 3 13/16") - Requires MTH Block complete 1513/1517 211.215.002 x 6 48 311.108.095
Solid Tine 8x150mm (5/16x6") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.108.150
Solid Tine 8x150mm (5/16x6") - Requires MTH Block complete 1513/1517 211.215.002 x 6 48 311.108.150
Solid Tine 10x100mm (3/8x4") - Requires Multi Coring Tine Head w/o tines 211.215.022 x 6 24 39200-447
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.210.080
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires MTH Block complete 1513/1517 211.215.002 x6 48 311.210.080
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.210.127
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires MTH Block complete 1513/1517 211.215.002 x 6 48 311.210.127
Hollow Tine 16/10x150mm (5/8x3/8x6") MD:12mm 24 311.216.150
Hollow Tine 19/12x150mm (5/8x3/8x6") MD:12mm 24 311.219.150
Hollow Tine 16/7x110mm (5/8x1/4x4 3/8") MD:19 ((top ejecting)) - Requires Multi Coring Tine Head w/o tines 211.215.022 x 6 24 311.219.138
Hollow Tine 21x12x125mm (13/16x1/2x5") - Requires Multi Coring Tine Head w/o tines 211.215.022 x 6 24 9990075
Hollow Tine 19x10x110mm (3/4x3/8x4 3/8") MD:19mm (top ejecting) - Requires Multi Coring Tine Head w/o tines 211.215.022 x 6 24 311.219.158
Hollow Tine 19x10x125mm (3/4x3/8x5") MD:19mm - Requires Multi Coring Tine Head w/o tines 211.215.022 x 6 24 311.219.159
Hollow Tine 19/12x150mm (5/8x3/8x6") MD:12mm - Requires Multi Coring Tine Head w/o tines 211.215.022 x 6 24 311.219.150
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires MTH Block complete 1513/1517 211.215.002 x 6 48 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD:12mm 24 311.812.090
Cross Tine 19x120mm (3/4x5") MD:12mm 24 9990021
Chisel Tine 4.8x19x120mm (3/16x3/4x4 3/4") MD:12mm 24 311.619.120
Chisel Tine 4.8x19x175mm (3/16x3/4x7") MD:12mm 24 311.619.175
Chisel Tine 5x30x90mm (3/16x1 3/16x3 1/2") MD:19mm - Requires Multi Coring Tine Head w/o tines 211.215.022 x 6 24 311.619.127
