Redexim Verti-Drain 2216

Redexim Verti-Drain 2216

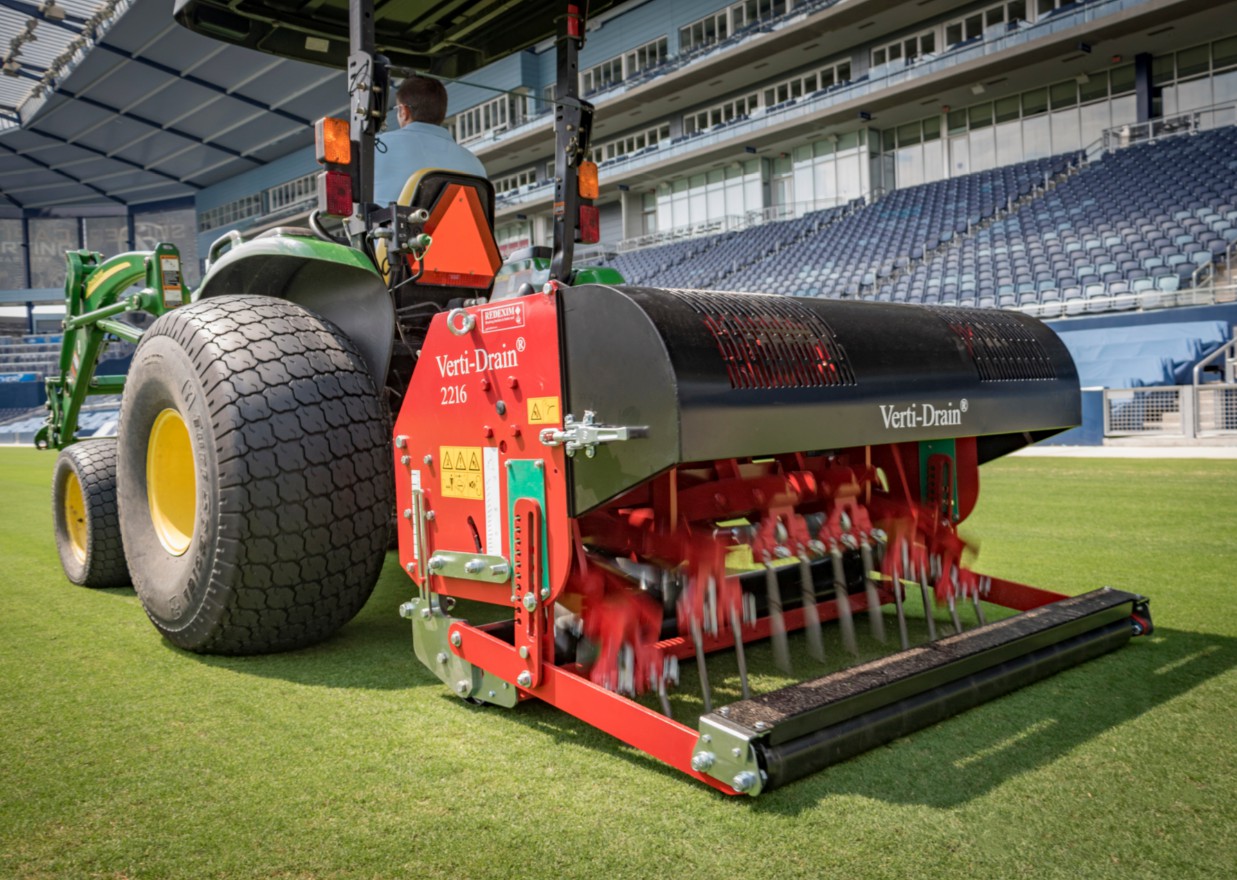

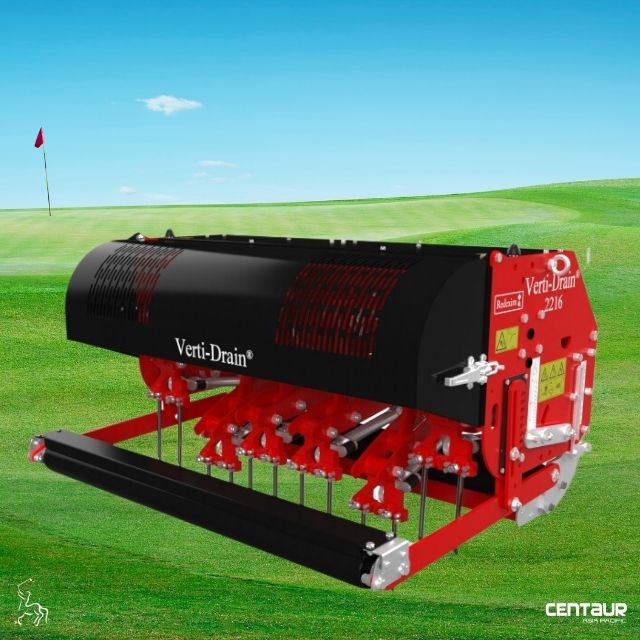

The robust Verti-Drain® 2216 is a high-speed unit, capable of handling a 24mm / 1” diameter tine and working to depths of 22cm / 9”. Thanks to its heavy-duty construction, the 2216 is ideal for a range of creation applications where durability and speed is key.

  • Heavy-duty
  • High-speed aerator
  • Multiple tine options
  • Consider the Verti-Drain® 2220 for larger areas



Standard components

  • Solid Tine 18x250mm (3/4x10") 2381841 x 12
  • Toolbox with combi tool and manual x 1
  • PTO Shaft x 1




Deep-Tine Aeration with Verti-Drain

An aeration method uses solid tines to create deep holes into the turf without removing any soil. The Verti-Drain insert a tine that kicks to gently lift and shatter the soil in a uniform manner to further break up compaction and create space in the soil profile for air, water, and grass plant roots.

The world-renowned Verti-Drain aerator was invented by Redexim more than 40 years ago. It has changed the method of soil aeration across the world, becoming the ‘must use’ for turf managers in their battle to aid turf growth in challenging environments.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 22 March 2022

Specification

SKU 111.122.016
Working width (m) 1.6
Working width (inch) 63
Max. Working depth (mm) 225
Max. Working depth (inch) 9
Working speed at hole spacing 65 mm 1.79
Working speed at hole spacing 2-1 2 inch (mph) 1.1
Weight (kg) 952
Weight (lbs) 2094
Hole distance with 12 mm tines (mm) 65
Hole distance with 1 2 x 6 inch tines (inch) 2.5
Hole distance with 18 mm tines (mm) 130
Hole distance with 3 4 x 9 inch tines (inch) 5.11
Hole spacing distance driving direction (mm) 25 - 195
Hole spacing distance driving direction (inch) 1 - 7.5
Max diameter solid tine (mm) 24 x 225
Max diameter solid tine (inch) 1 x 9
Max diameter hollow tine (mm) 25 x 225
Max diameter hollow tine (inch) 1 x 9
Min. Tractor HP required 45
Min. lifting capacity (kg) 1050
Min. lifting capacity (LBS) 2314
Max. capacity with spacing 65 mm (m² hr) 2796
Max. capacity with spacing 2-1 2 inch (ft² hr) 30096
Three-point hitch 3-Point CAT 1/2
Rpm Max. 540
Gearbox oil 80W90 5.5 Liter
Lubricant EP 2
Dimensions (width mm) 1700
Dimensions (height mm) 900
Dimensions (length mm) 1210
Dimensions (width inch) 66.9
Dimensions (height inch) 35.4
Dimensions (length inch) 47.6
Slip clutch setting 550 NM (4868 lbf-in)



Options

Description Quantity Article number
Anti-vibration system 22 serie 1 211.700.501
Windrow Kit for 2216 1 211.116.008
Hydraulic Depth Control System for 2216 1 211.116.006
Turf Hold Down Kit for 12mm tines - 2216 1 211.116.004
Turf Hold Down Kit for 24mm tines - 2216 1 211.116.002
Solid Tine 8x150mm (5/16x6") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.108.150
Solid Tine 8x150mm (5/16x6") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 6 48 311.108.150
Solid Tine 8x175mm (5/16x7") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 9990056
Solid Tine 8x175mm (5/16x7") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 6 48 9990056
Solid Tine 8x250mm (5/16x10") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 9990059
Solid Tine 12x150mm (1/2x6") 24 311.112.150
Solid Tine 12x200mm (1/2x8") 24 311.112.200
Solid Tine 12x250mm (1/2x10") 24 2381837
Solid Tine 18x200mm (3/4x8") - Requires Adapter 18mm tines (3/4") 2451800 x 12 12 311.118.200
Solid Tine 24x225mm 12 311.124.225
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.210.080
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 6 48 311.210.080
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.210.127
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 6 48 311.210.127
Hollow Tine 16/10x150mm (5/8x3/8x6") MD:12mm 24 311.216.150
Hollow Tine 16/10x175mm (5/8x3/8x7") MD:12mm 24 9990022
Hollow Tine 19/12x150mm (5/8x3/8x6") MD:12mm 24 311.219.150
Hollow Tine 19/12x200mm (3/4x1/2x8") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 12 12 311.219.200
Hollow Tine 19/12x200mm (3/4x1/2x8")MD: 12mm 24 311.219.201
Hollow Tine 19/12x225mm (3/4x1/2x9") MD: 12mm - Requires Adapter 18mm tines (3/4") 2451800 x 12 12 311.219.225
Hollow Tine 19/12x225mm (3/4x1/2x9") MD:12mm 24 311.219.226
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:18mm - Requires Adapter 18mm tines (3/4") 2451800 x 12 12 9990023
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:12mm 24 9990040
Hollow Tine 25/16x200mm (1x5/8x10") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 12 12 311.225.200
Hollow Tine 25/16x225mm (1x5/8x9") MD:18mm - Requires Adapter 18mm tines (3/4") 2451800 x 12 12 311.225.225
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 6 48 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD:12mm 24 311.812.090
Cross Tine 19x120mm (3/4x5") MD:12mm 24 9990021
Chisel Tine 4.8x19x120mm (3/16x3/4x4 3/4") MD:12mm 24 311.619.120
Chisel Tine 4.8x19x175mm (3/16x3/4x7") MD:12mm 24 311.619.175
