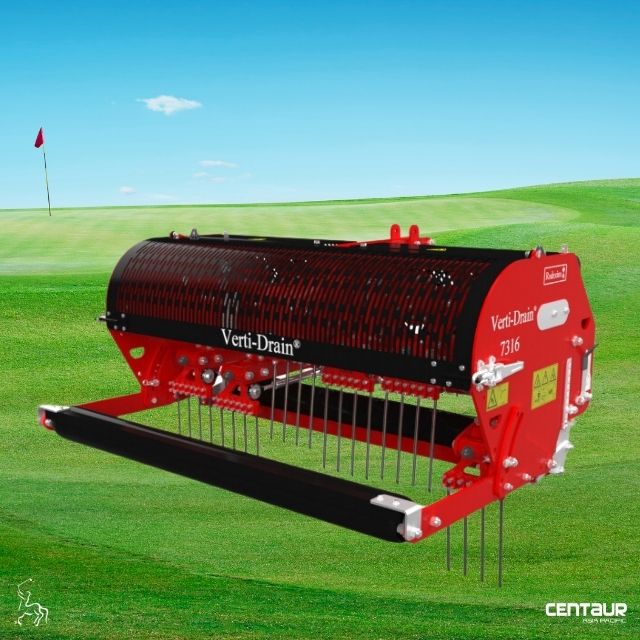

Redexim Verti-Drain 7316

Redexim Verti-Drain 7316

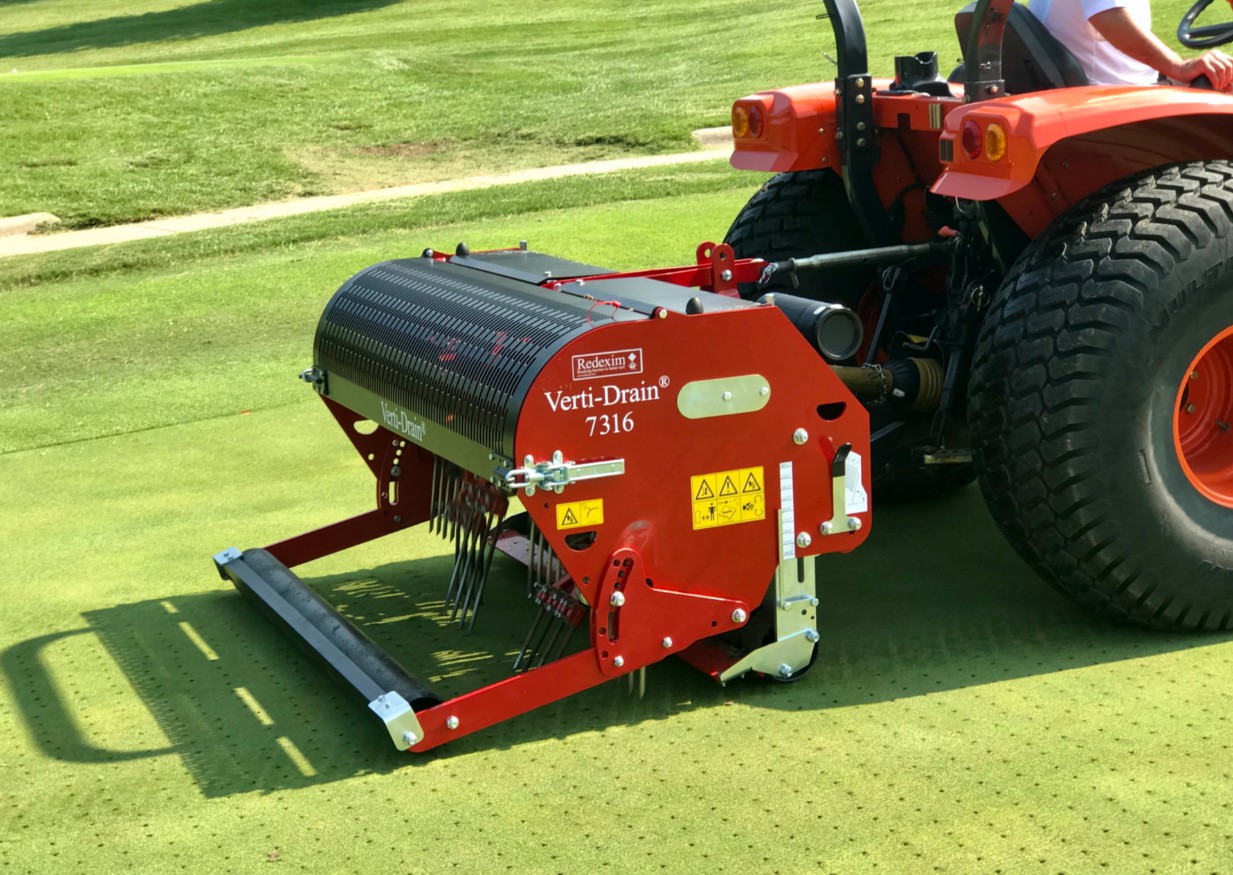

The Verti-Drain® 7316 is a highly versatile machine, popular in sports fields, golf & municipality settings, it can handle the tougher conditions while remaining suitable for smaller chassis tractors. The three-speed gearbox makes it easy to further adjust the working speed for a perfect finish

  • Ideal for a range of turf types
  • Multiple options such as Windrow Kit and Wheel Kit
  • Broad range of tine options
  • See the Verti-Drain® 1513 or Verti-Drain® 1517 for a high speed option



Standard components

  • Solid Tine 12x300mm 2381838 x 24
  • Toolbox with combi tool and manual x 1
  • PTO Shaft x 1




Deep-Tine Aeration with Verti-Drain

An aeration method uses solid tines to create deep holes into the turf without removing any soil. The Verti-Drain insert a tine that kicks to gently lift and shatter the soil in a uniform manner to further break up compaction and create space in the soil profile for air, water, and grass plant roots.

The world-renowned Verti-Drain aerator was invented by Redexim more than 40 years ago. It has changed the method of soil aeration across the world, becoming the ‘must use’ for turf managers in their battle to aid turf growth in challenging environments.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 17 March 2022

Specifications

SKU 7316
Working width (m) 1.6
Working width (inch) 63
Max. Working depth (mm) 300
Max. Working depth (inch) 12
Weight (kg) 670
Weight (lbs) 1480
Hole distance with 12 mm tines (mm) 65
Hole distance with 1 2 x 6 inch tines (inch) 2.5
Hole distance with 18 mm tines (mm) 130
Hole distance with 3 4 x 9 inch tines (inch) 5
Hole spacing distance driving direction (mm) 25 - 195
Hole spacing distance driving direction (inch) 1 - 7-1/2
Max diameter solid tine (mm) 18 x 300
Max diameter solid tine (inch) 3/4 x 12
Max diameter hollow tine (mm) 25 x 250
Max diameter hollow tine (inch) 1 x 10
Min. Tractor HP required 28
Min. lifting capacity (kg) 825
Min. lifting capacity (LBS) 1815
Max. capacity with spacing 65 mm (m² hr) 1360
Max. capacity with spacing 2-1 2 inch (ft² hr) 12300
Three-point hitch 3-point CAT 1
Rpm Max. 500
Gear case oil 80W90 - 5
Lubricant EP 2
Slip clutch setting 500 Nm



Options

Description Quantity Article number
Turf Hold Down Kit for 12mm tines - 7316 1 211.731.006
Turf Hold Down Kit for 18mm tines - 7316 1 211.731.008
Windrow Kit for 71/73/74/75 Series 1 211.731.010
Core Collector for 7316/7416/7516 1 9200080
Wheel Kit for 73 Series 1 9200100
Rotating Brush for 73 Series 1 211.731.600
Solid Tine 5x125mm (3/16x5") - Requires Adapter 5mm tines (3/16") 314.205.043 x 24 24 311.105.125
Solid Tine 5x125mm (3/16x5") - Requires MTH Block for (21) tines 5mm (3/16") 9990214 x 6 144 311.105.125
Solid Tine 8x150mm (5/16x6") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.108.150
Solid Tine 8x150mm (5/16x6") - Requires MTH Block for (8) tines 8mm (5/16") 9990208 x 6 48 311.108.150
Solid Tine 8x175mm (5/16x7") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 9990056
Solid Tine 8x175mm (5/16x7") - Requires MTH Block for (8) tines 8mm (5/16") 9990208 x 6 48 9990056
Solid Tine 8x250mm (5/16x10") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 9990059
Solid Tine 12x150mm (1/2x6") 24 311.112.150
Solid Tine 12x200mm (1/2x8") 24 311.112.200
Solid Tine 12x250mm (1/2x10") 24 2381837
Solid Tine 18x200mm (3/4x8") 12 311.118.200
Solid Tine 18x250mm (3/4x10") 12 2381841
Solid Tine 18x300mm 12 2382638
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.210.080
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires MTH Block for (8) tines 8mm (5/16") 9990208 x 6 48 311.210.080
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 311.210.127
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990208 x 6 48 311.210.127
Hollow Tine 16/10x150mm (5/8x3/8x6") MD:12mm 24 311.216.150
Hollow Tine 16/10x175mm (5/8x3/8x7") MD:12mm 24 9990022
Hollow Tine 19/12x150mm (5/8x3/8x6") MD:12mm 24 311.219.150
Hollow Tine 19/12x200mm (3/4x1/2x8") MD: 18mm 12 311.219.200
Hollow Tine 19/12x200mm (3/4x1/2x8")MD: 12mm 24 311.219.201
Hollow Tine 19/12x225mm (3/4x1/2x9") MD: 12mm 12 311.219.225
Hollow Tine 19/12x225mm (3/4x1/2x9") MD:12mm 24 311.219.226
Hollow Tine 25/16x200mm (1x5/8x10") MD: 18mm 12 311.225.200
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:18mm 12 9990023
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:12mm 24 9990040
Hollow Tine 25/16x225mm (1x5/8x9") MD:18mm 12 311.225.225
Hollow Tine 25/17x250mm (1x5/8x10") MD: 18mm 12 9990024
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 24 24 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990208 x 6 48 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD:12mm 24 311.812.090
Cross Tine 19x120mm (3/4x5") MD:12mm 24 9990021
Chisel Tine 4.8x19x175mm (3/16x3/4x7") MD:12mm 24 311.619.175
Chisel Tine 4.8x19x120mm (3/16x3/4x4 3/4") MD:12mm 24 311.619.120
