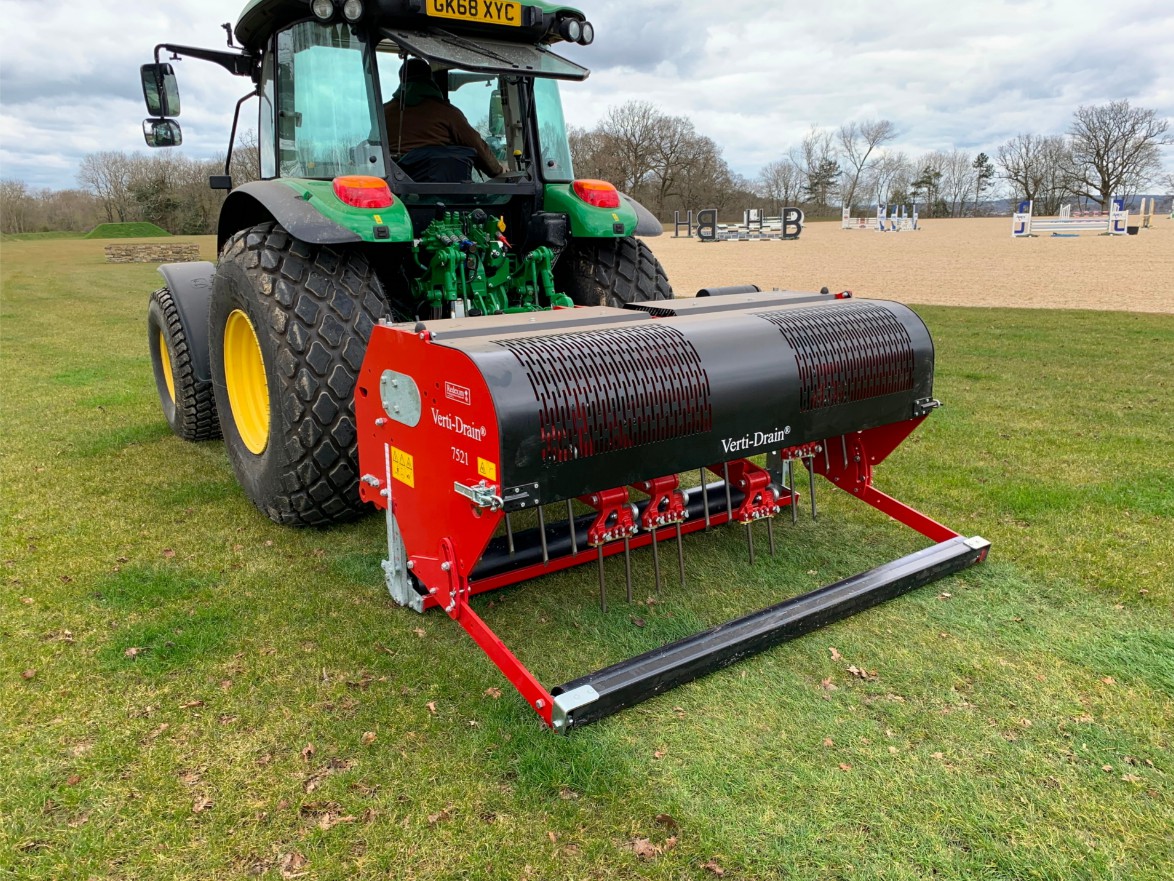

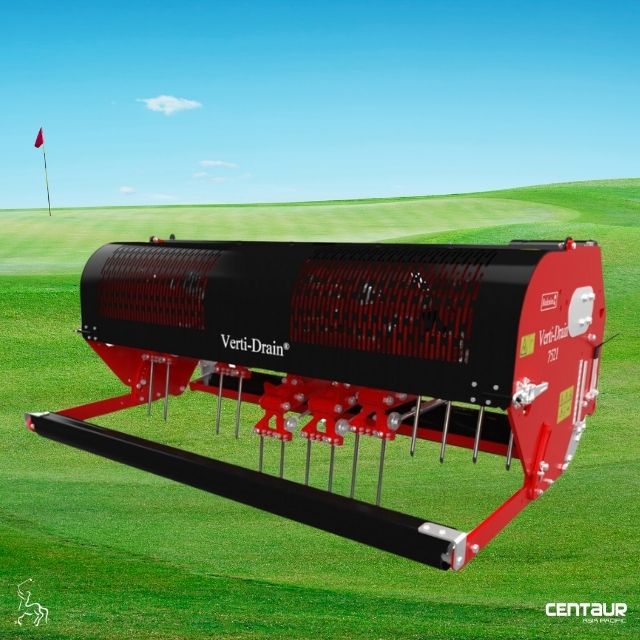

Redexim Verti-Drain 7521

Redexim Verti-Drain 7521

The Verti-Drain® 7521 offers robust functionality and depth in one machine, it has the ability to work to 16” / 400mm deep. The 7521 is popular with contractors and golf clubs in part due to its ability to accept a large range of tines for different applications.

  • Large range of tines
  • Ideal for covering wheel width of mid-size chassis tractors
  • Need to work in tough soils, consider the Verti-Drain® 7626 Verti-Drain



Standard components

  • Solid Tine 18x300mm 2382638 x 16
  • Toolbox with combi tool and manual x 1
  • PTO Shaft x 1




Deep-Tine Aeration with Verti-Drain

An aeration method uses solid tines to create deep holes into the turf without removing any soil. The Verti-Drain insert a tine that kicks to gently lift and shatter the soil in a uniform manner to further break up compaction and create space in the soil profile for air, water, and grass plant roots.

The world-renowned Verti-Drain aerator was invented by Redexim more than 40 years ago. It has changed the method of soil aeration across the world, becoming the ‘must use’ for turf managers in their battle to aid turf growth in challenging environments.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 22 March 2022

Specifications

SKU 7521
Working width (m) 2.1
Working width (inch) 83
Max. Working depth (mm) 400
Max. Working depth (inch) 16
Weight (kg) 1375
Weight (lbs) 3025
Hole distance with 12 mm tines (mm) 65
Hole distance with 1 2 x 6 inch tines (inch) 2.5
Hole distance with 24 mm tines (mm) 129
Hole distance with 1 x 16 inch tines (inch) 5
Hole spacing distance driving direction (mm) 50-195
Hole spacing distance driving direction (inch) 2 - 7-1/2
Max diameter solid tine (mm) 24 x 400
Max diameter solid tine (inch) 1 x 16
Max diameter hollow tine (mm) 32 x 300
Max diameter hollow tine (inch) 1-1/4 x 12
Min. Tractor HP required 55
Min. lifting capacity (kg) 1650
Min. lifting capacity (LBS) 3600
Max. capacity with spacing 65 mm (m² hr) 1470
Max. capacity with spacing 2-1 2 inch (ft² hr) 13400
Three-point hitch 3-point CAT 2
Rpm Max. 500
Gear case oil 80W90 - 5.8
Lubricant EP2
Slip clutch setting 800 Nm



Options

Description Quantity Article number
Turf Hold Down Kit for 12mm tines - 7521 1 211.752.007
Turf Hold Down Kit for 24mm tines - 7521 1 211.752.006
Wheel Kit for 7521 1 211.752.104
Auxiliary Spring kit 8 211.752.004
Anti-vibration system 1 211.700.500
Rotating Brush for 7521 / 7621 1 211.752.100
Solid Tine 5x125mm (3/16x5") - Requires Adapter 5mm tines (3/16") 314.205.043 x 32 32 311.105.125
Solid Tine 8x150mm (5/16x6") - Requires Adapter 8mm tines (5/16") 314.208.043 x 32 32 311.108.150
Solid Tine 8x150mm (5/16x6") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 8 64 311.108.150
Solid Tine 8x175mm (5/16x7") - Requires Adapter 8mm tines (5/16") 314.208.043 x 32 32 9990056
Solid Tine 8x175mm (5/16x7") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 8 64 9990056
Solid Tine 8x250mm (5/16x10") - Requires Adapter 8mm tines (5/16") 314.208.043 x 32 32 9990059
Solid Tine 12x150mm (1/2x6") 32 311.112.150
Solid Tine 12x200mm (1/2x8") 32 311.112.200
Solid Tine 12x250mm (1/2x10") 32 2381837
Solid Tine 12x300mm 32 2381838
Solid Tine 18x200mm (3/4x8") - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 311.118.200
Solid Tine 18x250mm (3/4x10") - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 2381841
Solid Tine 18x350mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 311.118.350
Solid Tine 18x400mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 2382639
Solid Tine 24x225mm 16 311.124.225
Solid Tine 24x350mm 16 311.124.350
Solid Tine 24x400mm 16 2382640
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires Adapter 8mm tines (5/16") 314.208.043 x 32 32 311.210.080
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 8 64 311.210.080
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 32 32 311.210.127
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 8 64 311.210.127
Hollow Tine 16/10x150mm (5/8x3/8x6") MD:12mm 32 311.216.150
Hollow Tine 16/10x175mm (5/8x3/8x7") MD:12mm 32 9990022
Hollow Tine 19/12x150mm (5/8x3/8x6") MD:12mm 32 311.219.150
Hollow Tine 19/12x200mm (3/4x1/2x8") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 311.219.200
Hollow Tine 19/12x200mm (3/4x1/2x8")MD: 12mm 32 311.219.201
Hollow Tine 19/12x225mm (3/4x1/2x9") MD: 12mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 311.219.225
Hollow Tine 19/12x225mm (3/4x1/2x9") MD:12mm 32 311.219.226
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:12mm 32 9990040
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:18mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 9990023
Hollow Tine 25/16x200mm (1x5/8x10") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 311.225.200
Hollow Tine 25/16x225mm (1x5/8x9") MD:18mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 311.225.225
Hollow Tine 25/17x250mm (1x5/8x10") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 9990024
Hollow Tine 32/21 x 300mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 9990066
Hollow Tine 32x21x300mm (1 1/4x13/16x12)") MD: 24mm 16 9990034
Hollow Tine 32x21x300mm (1 1/4x13/16x12)") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 16 16 9990041
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 32 32 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 8 64 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD:12mm 32 311.812.090
Cross Tine 19x120mm (3/4x5") MD:12mm 32 9990021
Chisel Tine 4.8x19x175mm (3/16x3/4x7") MD:12mm 32 311.619.175
Chisel Tine 4.8x19x120mm (3/16x3/4x4 3/4") MD:12mm 32 311.619.120
