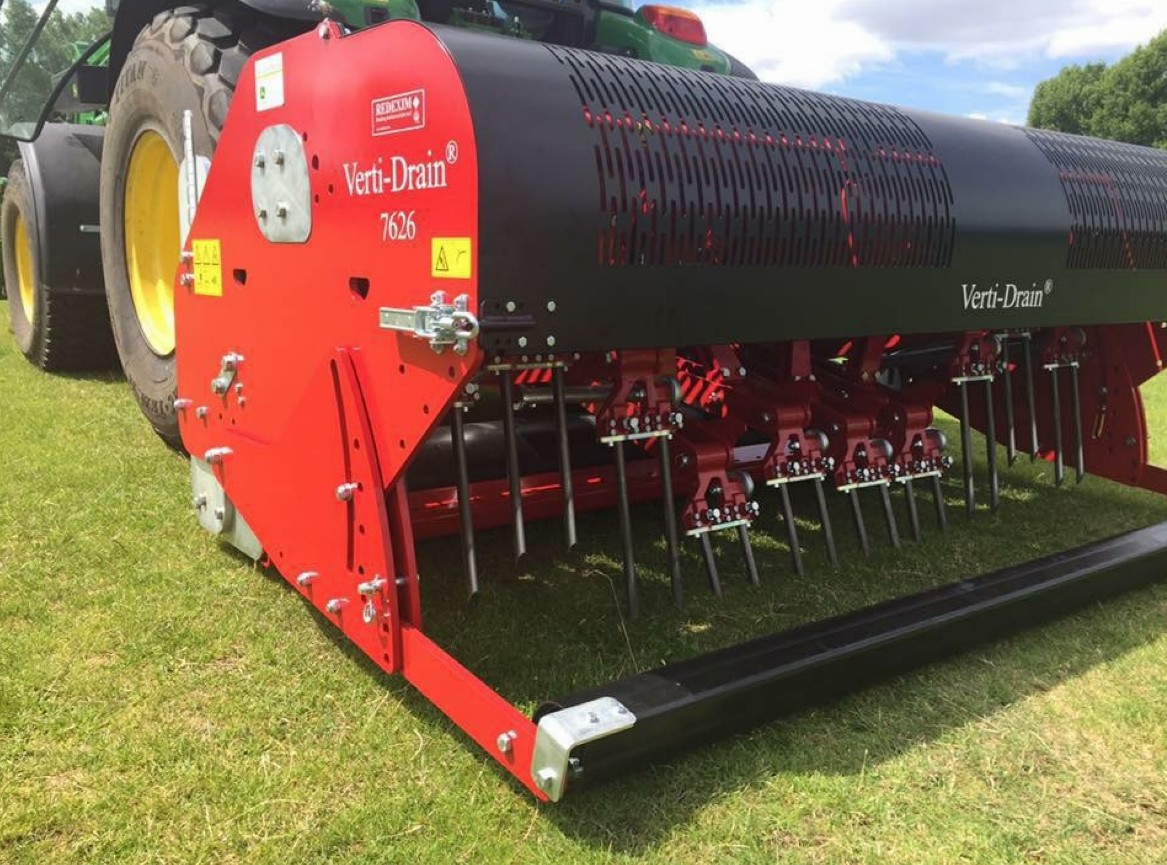

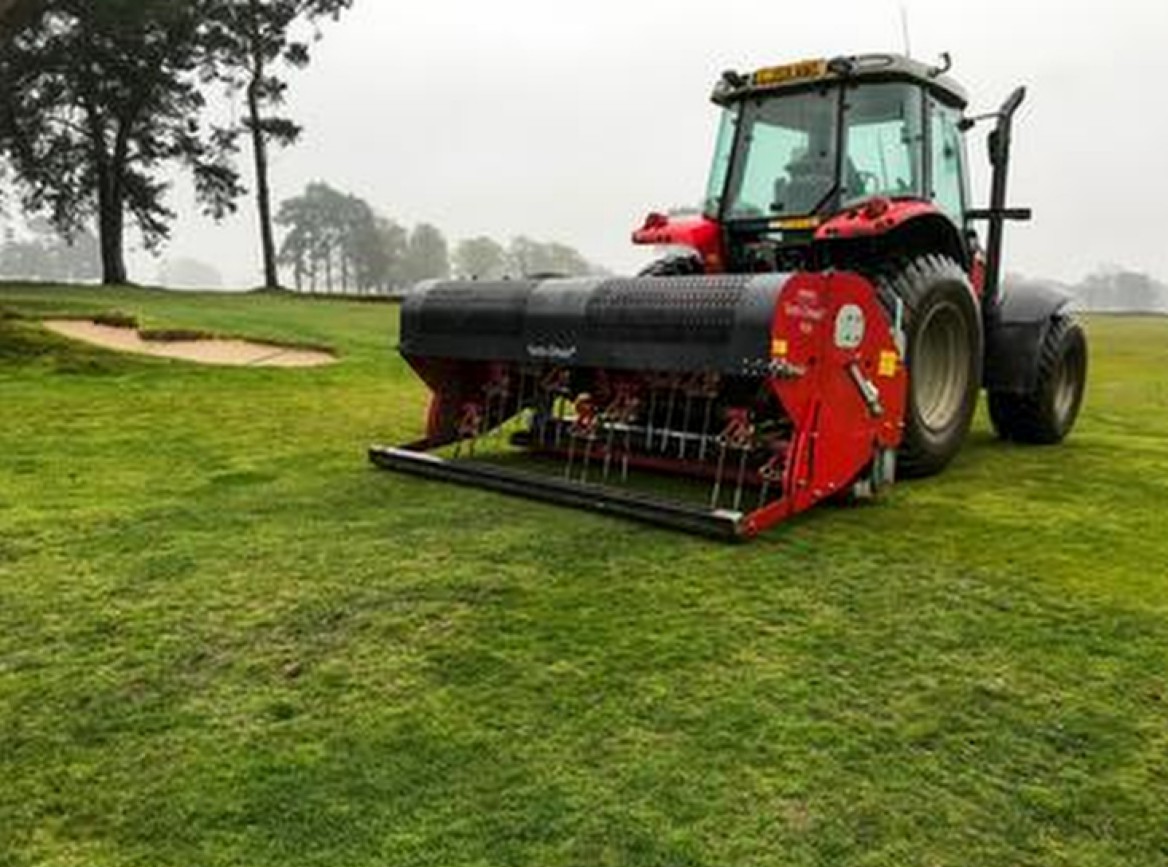

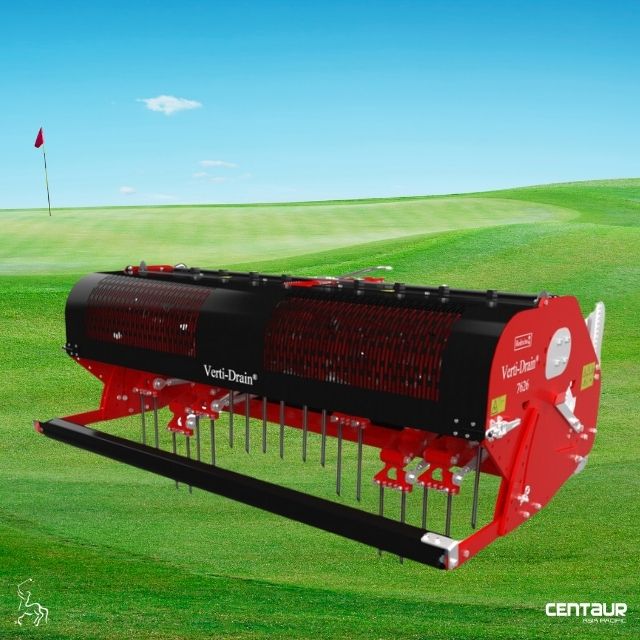

Redexim Verti-Drain 7626

Redexim Verti-Drain 7626

The 7626 is the largest Verti-Drain in the range, with a heavy-duty gearbox & hydraulic depth control to allow for working depth changes on the move. It is well suited to the toughest of soil conditions, with a 260cm / 102” working width it has the ability to cover large areas with ease.

  • Heavy duty tool for tough conditions
  • Large range of tine options
  • Hydraulic depth control as standard
  • Consider the Verti-Drain® 7526 for lighter option



Standard components

  • Solid Tine 24x400mm 2382640 x 20
  • Toolbox with combi tool and manual x 1
  • PTO Shaft x 1
  • Hydraulic Depth Control System for 76 Series x 1




Deep-Tine Aeration with Verti-Drain

An aeration method uses solid tines to create deep holes into the turf without removing any soil. The Verti-Drain insert a tine that kicks to gently lift and shatter the soil in a uniform manner to further break up compaction and create space in the soil profile for air, water, and grass plant roots.

The world-renowned Verti-Drain aerator was invented by Redexim more than 40 years ago. It has changed the method of soil aeration across the world, becoming the ‘must use’ for turf managers in their battle to aid turf growth in challenging environments.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 22 March 2022

Specifications

SKU 7626
Working width (m) 2.6
Working width (inch) 102
Max. Working depth (mm) 400
Max. Working depth (inch) 16
Weight (kg) 1930
Weight (lbs) 4254
Hole distance with 12 mm tines (mm) 65
Hole distance with 1 2 x 6 inch tines (inch) 2.5
Hole distance with 24 mm tines (mm) 129
Hole distance with 1 x 16 inch tines (inch) 5
Hole spacing distance driving direction (mm) 50-195
Hole spacing distance driving direction (inch) 2 - 7-1/2
Max diameter solid tine (mm) 24 x 400
Max diameter solid tine (inch) 1 x 16
Max diameter hollow tine (mm) 32 x 300
Max diameter hollow tine (inch) 1-1/4 x 12
Min. Tractor HP required 65
Min. lifting capacity (kg) 2300
Min. lifting capacity (LBS) 5070
Max. capacity with spacing 65 mm (m² hr) 1950
Max. capacity with spacing 2-1 2 inch (ft² hr) 20989
Three-point hitch 3-point CAT 2
Rpm Max. 500
Gear case oil 80W90 - 6.5
Lubricant EP2
Slip clutch setting 1100 Nm



Options

Description Quantity Article number
Turf Hold Down Kit for 12mm tines - 7626 1 211.762.002
Turf Hold Down Kit for 24mm tines - 7626 1 211.762.004
Anti-vibration sytem 76 serie 1 211.700.502
Wheel Kit for 7626 1 211.762.006
Rotating Brush for 7526 / 7626 1 211.762.106
Solid Tine 5x125mm (3/16x5") - Requires Adapter 5mm tines (3/16") 314.205.043 x 40 40 311.105.125
Solid Tine 8x150mm (5/16x6") - Requires Adapter 8mm tines (5/16") 314.208.043 x 40 40 311.108.150
Solid Tine 8x150mm (5/16x6") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 10 80 311.108.150
Solid Tine 8x175mm (5/16x7") - Requires Adapter 8mm tines (5/16") 314.208.043 x 40 40 9990056
Solid Tine 8x175mm (5/16x7") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 10 80 9990056
Solid Tine 8x250mm (5/16x10") - Requires Adapter 8mm tines (5/16") 314.208.043 x 40 40 9990059
Solid Tine 12x150mm (1/2x6") -  40 311.112.150
Solid Tine 12x200mm (1/2x8") 40 311.112.200
Solid Tine 12x250mm (1/2x10") 40 2381837
Solid Tine 12x300mm 40 2381838
Solid Tine 18x200mm (3/4x8") - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 311.118.200
Solid Tine 18x250mm (3/4x10") - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 2381841
Solid Tine 18x300mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 2382638
Solid Tine 18x350mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 311.118.350
Solid Tine 18x400mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 2382639
Solid Tine 24x225mm 20 311.124.225
Solid Tine 24x350mm 20 311.124.350
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires Adapter 8mm tines (5/16") 314.208.043 x 40 40 311.210.080
Hollow Tine 10x6x80mm (3/8x1/4x3") - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 10 80 311.210.080
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 40 40 311.210.127
Hollow Tine 10x6x125mm (3/8x1/4 x 5") MD:8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 8 80 311.210.127
Hollow Tine 16/10x150mm (5/8x3/8x6") MD:12mm 40 311.216.150
Hollow Tine 16/10x175mm (5/8x3/8x7") MD:12mm 40 9990022
Hollow Tine 19/12x150mm (5/8x3/8x6") MD:12mm 40 311.219.150
Hollow Tine 19/12x200mm (3/4x1/2x8") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 311.219.200
Hollow Tine 19/12x200mm (3/4x1/2x8")MD: 12mm 40 311.219.201
Hollow Tine 19/12x225mm (3/4x1/2x9") MD: 12mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 311.219.225
Hollow Tine 19/12x225mm (3/4x1/2x9") MD:12mm 40 311.219.226
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:12mm 40 9990040
Hollow Tine 19/12x250mm (3/4x1/2x10") MD:18mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 9990023
Hollow Tine 25/16x200mm (1x5/8x10") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 311.225.200
Hollow Tine 25/16x225mm (1x5/8x9") MD:18mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 311.225.225
Hollow Tine 25/17x250mm (1x5/8x10") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 9990024
Hollow Tine 32/21 x 300mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 9990066
Hollow Tine 32x21x300mm (1 1/4x13/16x12)") MD: 24mm 20 9990034
Hollow Tine 32x21x300mm (1 1/4x13/16x12)") MD: 18mm - Requires Adapter 18mm tines (3/4") 2451800 x 20 20 9990041
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires Adapter 8mm tines (5/16") 314.208.043 x 40 40 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD: 8mm - Requires MTH Block for (8) tines 8mm (5/16") 9990211 x 10 80 9990020
Cross Tine 12x90mm (1/2x3 1/2") MD:12mm 40 311.812.090
Cross Tine 19x120mm (3/4x5") MD:12mm 40 9990021
Chisel Tine 4.8x19x175mm (3/16x3/4x7") MD:12mm 40 311.619.175
Chisel Tine 4.8x19x120mm (3/16x3/4x4 3/4") MD:12mm 40 311.619.120
