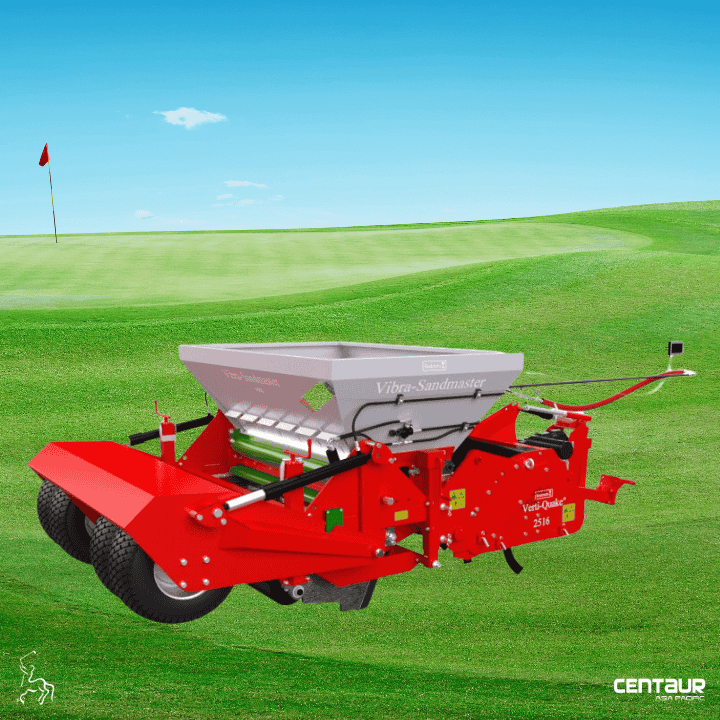

Redexim Vibra-Sandmaster with Verti-Quake (Drainage & Sand Injection)

Redexim Vibra-Sandmaster with Verti-Quake (Drainage & Sand Injection)

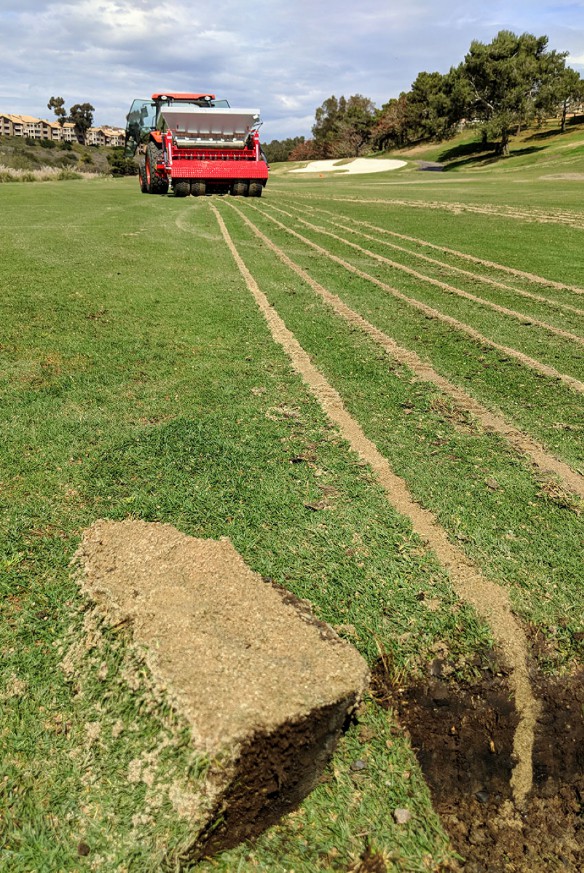

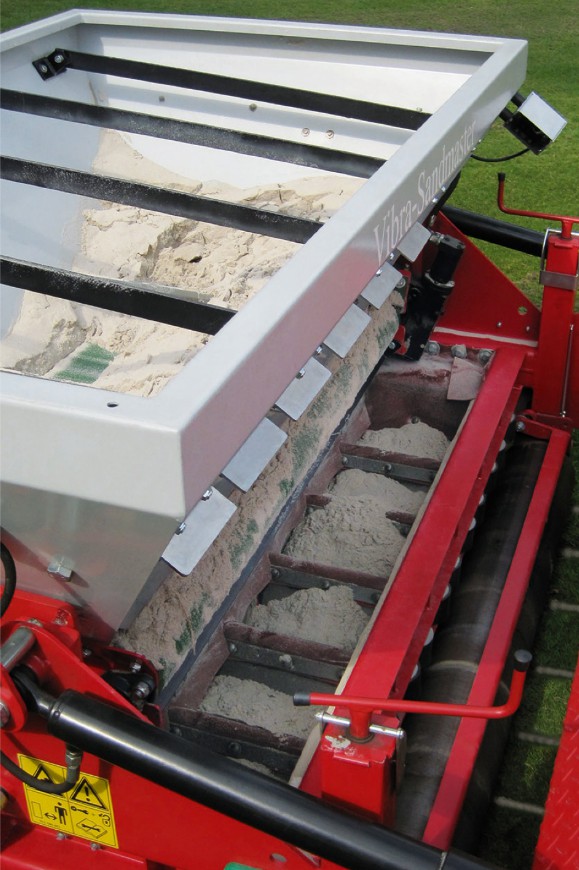

The Vibra-Sandmaster de-compacts & adds surface drainage to the soil profile all in one pass. Integrated within the Vibra-Sandmaster is the Verti-Quake® 2516, this de-compacts and opens the soil to depth of 250mm. Vibrating coulters fill the slits with sand to leave minimal surface disruption.

  • Immediate results
  • One pass opperation
  • Ideal contractors tools
  • The Rink DS3100 CB is an ideal companion to fill the Vibra-Sandmaster



Standard components

  • 20mm Verti-Quake Blade 311.320.421 x 18
  • Funnel blade sandmaster 311.325.598 x 6
  • Toolbox with combi tool and manual x 1
  • Storage Legs x 1
  • PTO Shaft x 1




About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 1 April 2022

Specifications

SKU 115.251.502
Working width (m) 1.56
Working width (inch) 61.4
Max. Working depth (mm) 125-200
Max. Working depth (inch) 4.9 - 7.9
Hopper capacity (m3) 1.5
Hopper capacity (FT3) 53
Weight (kg) 2650
Weight (lbs) 5842
Number of filling coulters 6
Distance between filling coulters (mm) 260
Distance between filling coulters (inch) 10,236
Thickness of filling coulters (mm) 25
Min. Tractor HP required 65-90 with four-wheel drive
Max. capacity ( m² hr) 1000
Max. capacity (ft² hr) 10800
Min. Oil supply of tractor (l min) 30
Min. Oil supply of tractor (US Gal min) 7.9
Required connections 1 x Double-acting valve (elevating the machine) 2 x Double-acting valves (conveyor drive)
Rpm Max. 540
Lubricant EP2 + High grade grease HT Q9
