RELiON Battery RB24V

RELiON Battery RB24V20 RELiON Battery RB24V40 RELiON Battery RB24V52 RELiON Battery RB24V100 RELiON Battery RB24V200

RELiON Battery RB24V

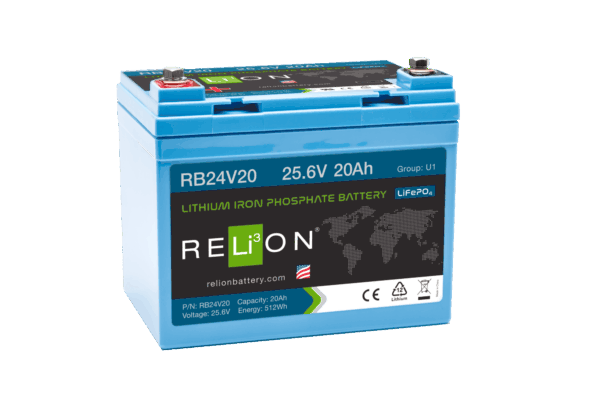

RB24V20

24V 20Ah LiFePO4 Battery

This 24V 20Ah lithium iron phosphate battery is perfect in many applications, including solar energy systems. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RB24V20 battery meets UL, CE and IEC certifications.



APPLICATIONS
  • Solar

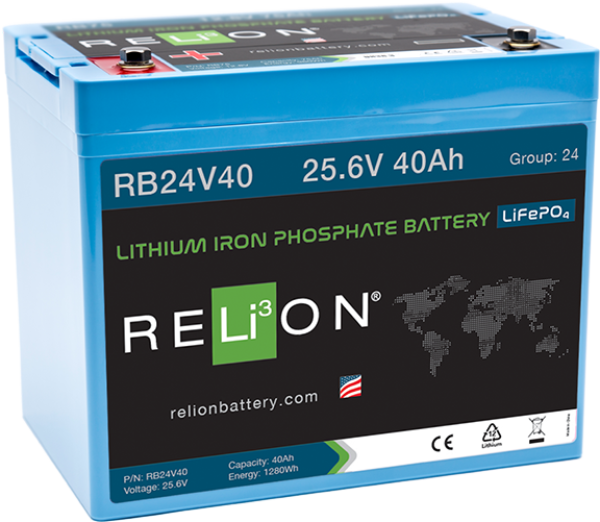

RB24V40

This 24V 40Ah lithium iron phosphate battery is perfect in many renewable energy applications. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RB24V40 lithium solar battery meets UL, CE and IEC certifications.



APPLICATIONS
  • Solar

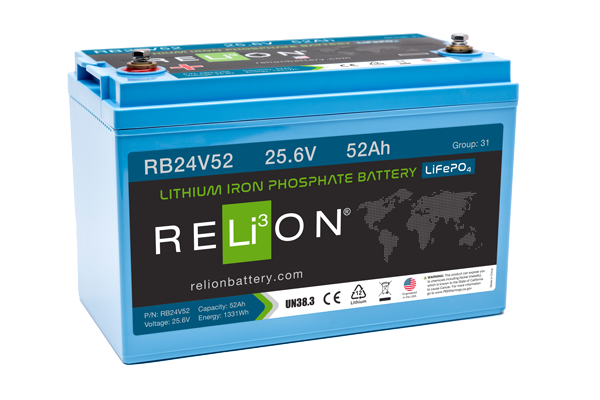

RB24V52

24V 52Ah LiFePO4 Battery

This 24V 52Ah lithium iron phosphate battery is perfect in many applications, including marine and electric vehicles. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RB24V52 battery meets UL, CE and IEC certifications.



APPLICATIONS
  • AWP
  • Floor Machines
  • Marine
  • Solar

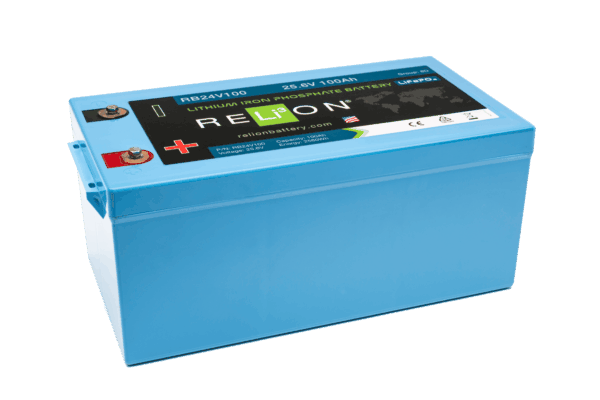

RB24V100

24V 100Ah LiFePO4 Battery

This 24V 100Ah lithium iron phosphate battery is perfect in many applications, including marine and electric vehicles. It maintains consistent power and is equipped with an M8 terminal type and built-in overcharge protection.



APPLICATIONS
  • AWP
  • Marine
  • Solar

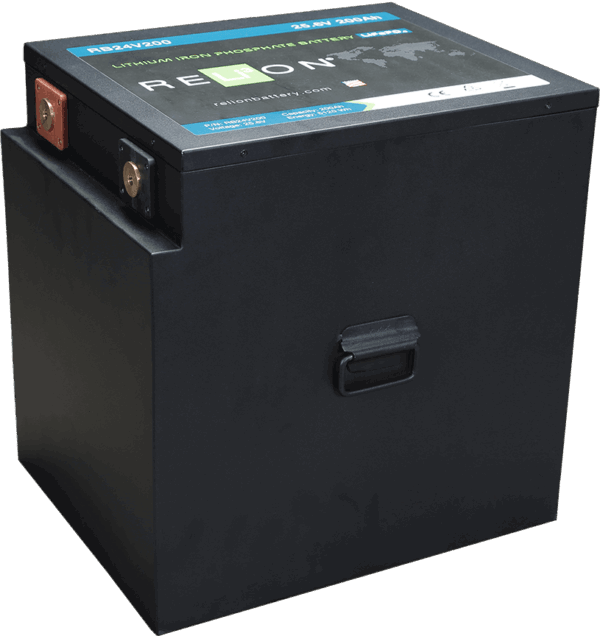

RB24V200

24V 200Ah LiFePO4 Battery

This 24V 200Ah lithium iron phosphate battery is perfect in many solar applications. It maintains consistent power and is equipped with an M10 terminal type and a built-in battery management system (BMS). The RB24V200 battery meets UL, CE and IEC certifications.



APPLICATIONS
  • Solar



All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.









Centaur Asia Pacific is the distributor for Relion Battery range of products in Hong Kong, Macau, Singapore, Malaysia, Indonesia, Vietnam, Thailand and Cambodia.

Updated on: 10 November 2021

RB24V20

PRODUCT SPECIFICATIONS
  • Voltage: 25.6V
  • Amp Hours: 20Ah



DIMENSIONS & WEIGHT
  • Length: 7.7 in (195 mm)
  • Width: 5.2 in (131 mm)
  • Height: 6.7 in (171 mm)
  • Weight: 11.9 lbs (5.4 kg)

RB24V40

PRODUCT SPECIFICATIONS
  • Voltage: 25.6V
  • Amp Hours: 40Ah



DIMENSIONS & WEIGHT
  • Length: 10.2 in (260 mm)
  • Width: 6.6 in (168 mm)
  • Height: 8.3 in (210 mm)
  • Weight: 29.1 lbs (13.2 kg)

RB24V52

PRODUCT SPECIFICATIONS
  • Voltage: 25.6V
  • Amp Hours: 52Ah



DIMENSIONS & WEIGHT
  • Length: 13 in (329 mm)
  • Width: 6.8 in (172 mm)
  • Height: 8.4 in (214 mm)
  • Weight: 29.1 lbs (13.2 kg)

RB24V100

PRODUCT SPECIFICATIONS
  • Voltage: 25.6V
  • Amp Hours: 100Ah



DIMENSIONS & WEIGHT
  • Length: 20.6 in (522 mm)
  • Width: 10.5 in (267 mm)
  • Height: 8.7 in (220 mm)
  • Weight: 61.1 lbs (27.7 kg)

RB24V100

PRODUCT SPECIFICATIONS
  • Voltage: 25.6V
  • Amp Hours: 200Ah



DIMENSIONS & WEIGHT
  • Length: 16.1 in (410 mm)
  • Width: 14.4 in (367 mm)
  • Height: 16.4 in (417 mm)
  • Weight: 110.2 lbs (50 kg)

How to Read RELiON's Data Sheets

We know that Data Sheets can sometimes be confusing, overwhelming, or difficult to decipher. In this week’s From the Tech Team, one of our experts breaks down how to easily read our Data Sheets. Watch the video to learn more.
