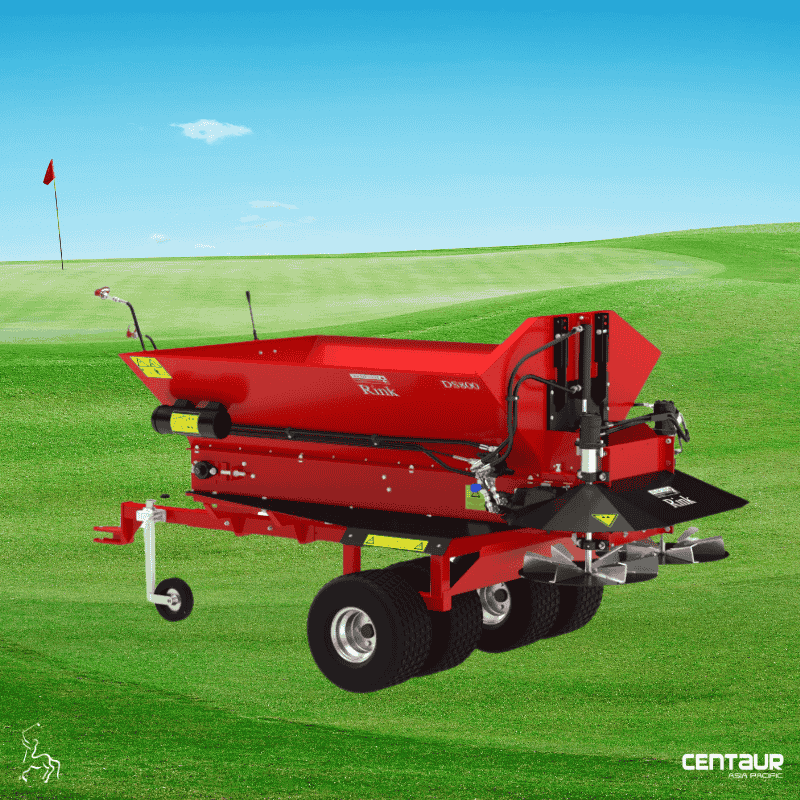

Redexim Rink DS800 Trailed

Redexim Rink DS800 Trailed

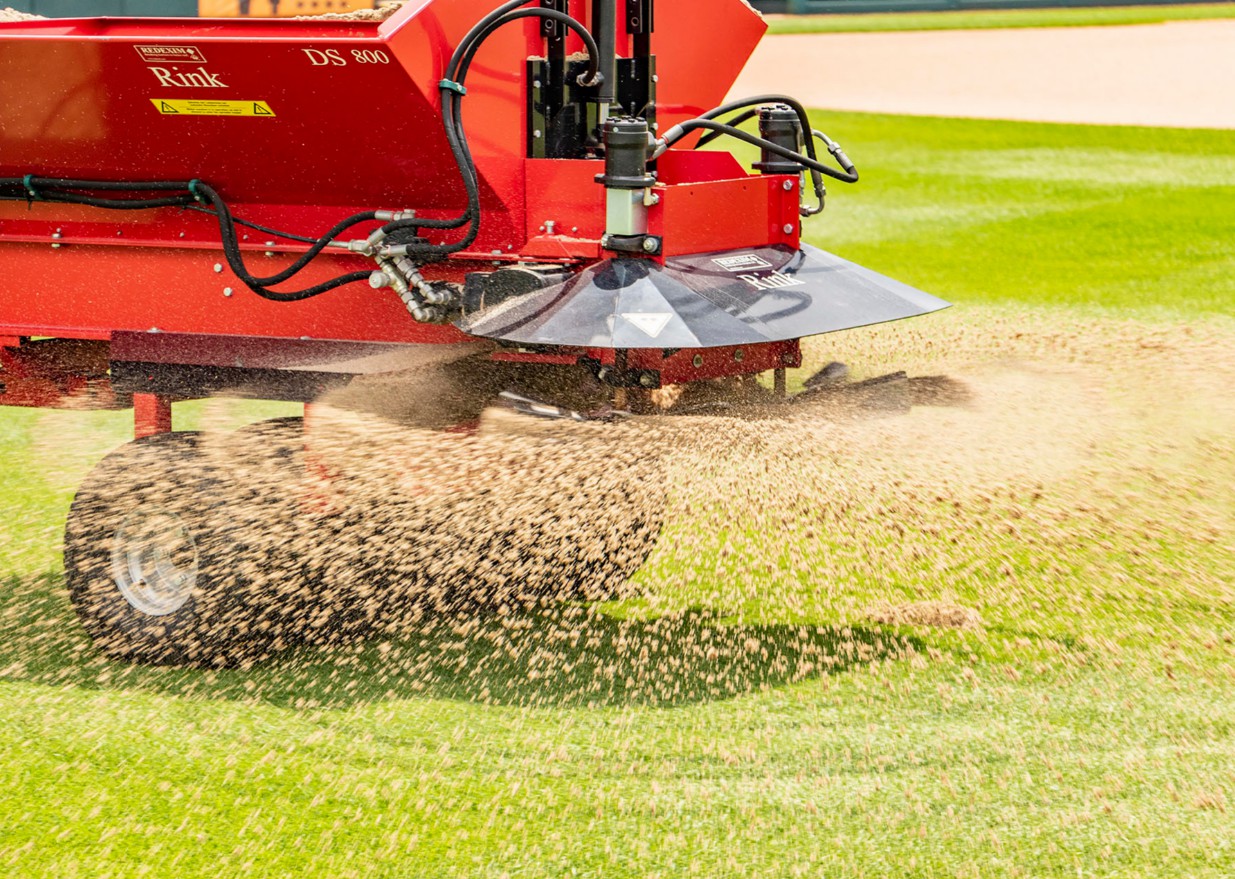

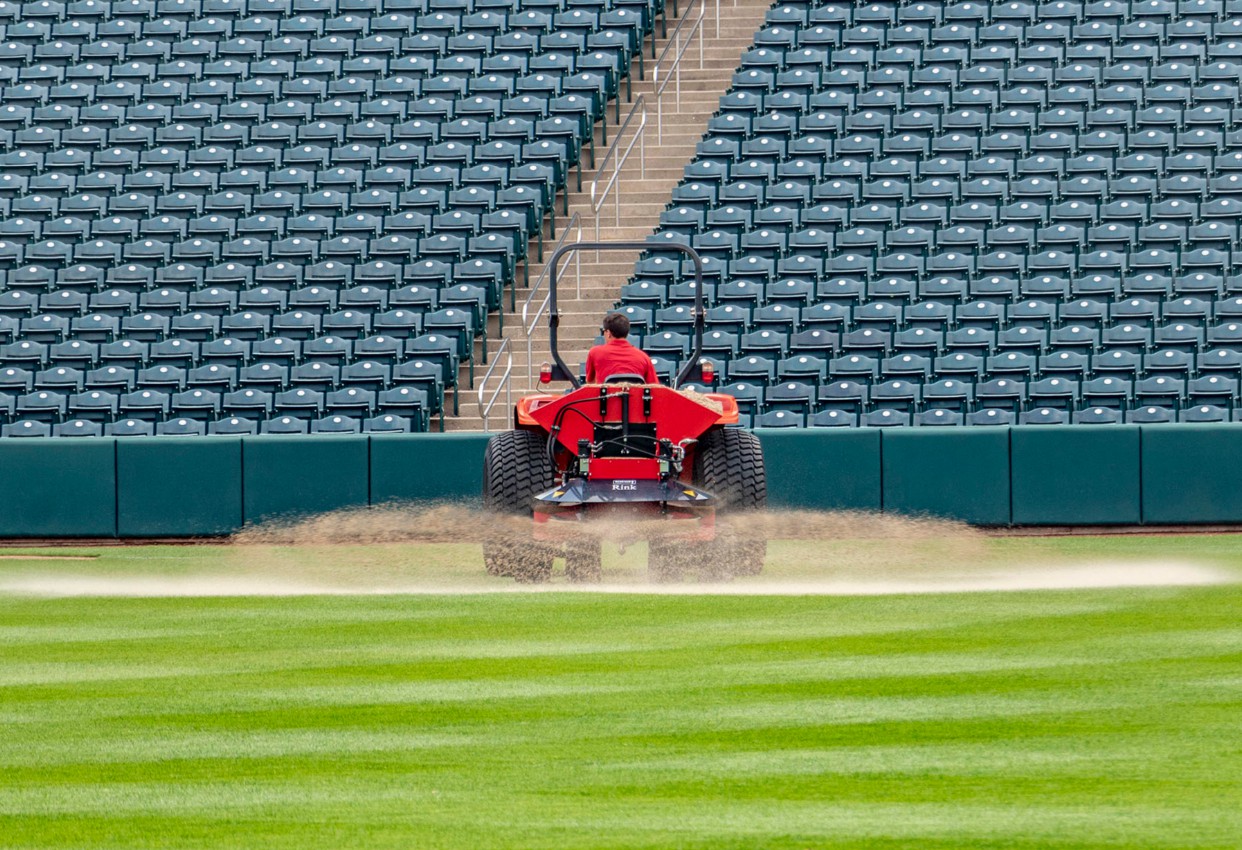

The Rink DS800 disc spreader distributes a range of material, the integrated transport belt moves wet or dry material to the rear of the machine to be spread by the twin discs. The spreading width & thickness can easily be adjusted. The rear door closes to prevent material spillage in transport.

  • Hydraulic rear door prevents spillage
  • Pivoting axles ensure stability on undulating ground
  • Wide hopper makes for easy loading.
  • Available as a Rink DS800 Mounted version for popular utility vehicles.



Standard components

  • Toolbox and manual x 1




About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 31 March 2022

Specifications

SKU 133.080.002
Operation Towed version
Spreading width (mm) Up to 12000
Spreading width (inch) Up to 472
Hopper capacity (FT3) 28.3
Max. Working speed (km h) 25
Working speed (mph) 16
Weight (kg) 475
Weight (lbs) 1047
Min. Tractor HP required 25
Min. Oil supply of tractor (l min) 25
Min. Oil supply of tractor (US Gal min) 6.6
Min. Pressure (bar) 140
Min. Pressure (psi) 2030.52
Required connections 1x Double-acting hydraulic valve



Options

Description Quantity Article number
External oil kit 1 233.120.018
Tyres 24x13-12 1 233.120.028
Cross conveyor belt 1 233.120.037
Electric control panel & connections to operate fr 1 233.120.040
