True-Surface Greens Care Collection

True-Surface Greens Care Collection

ALL INCLUSIVE TURF MAINTENANCE EQUIPMENT.

True-Surface® presents turf maintenance equipment that finally works for your budget and your greens. The Greens Care Collection is designed to make your greens care program fast and easy while still keeping your budget fat.



FAST AND EASY GREENS CARE

Become more energy efficient with the collection that is fast and easy to use.

  • Sturdy Frame Design – Unlike other interchangeable systems, True-Surface® is not compromised by a flimsy clam-shell design. The Greens Care Collection frame is designed to withstand golf course conditions, such as weather, shop floors, and chemicals.

  • Easy-to-use Depth of Cut Site Gauge – No more counting “clicks” and turns; the True-Surface® Depth of Cut Adjuster has a Site Gauge that allows you to quickly adjust your settings by simply choosing your mark.

  • Time Saver – Change out your inserts without detaching the Greens Care Collection from your greens mower.

  • Interchangeable Inserts – The True-Surface® Greens Care Collection will do what would normally take multiple types of equipment to perform. Stop buying expensive equipment – just start your collection of greens care inserts!



ALL-IN-ONE

There is no need to buy a bunch of expensive tools to perform the same tasks that the Greens Care Collection does itself! Save time and money by investing in True-Surface®.

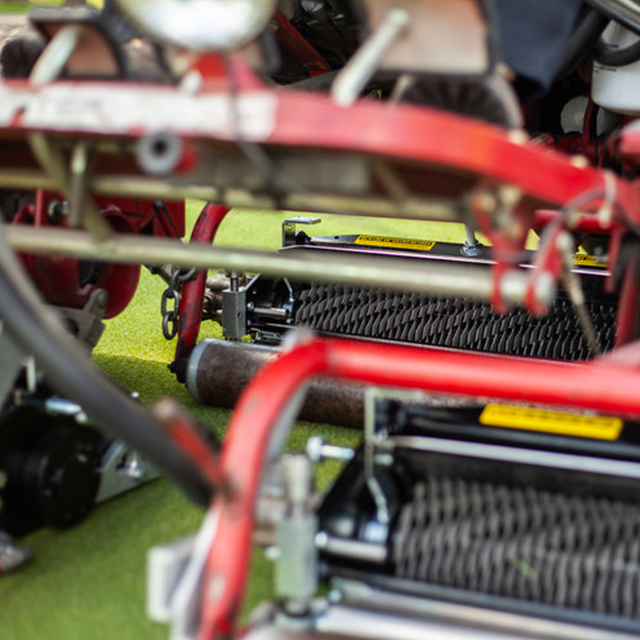

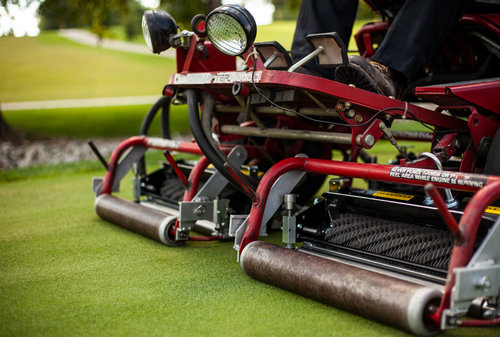

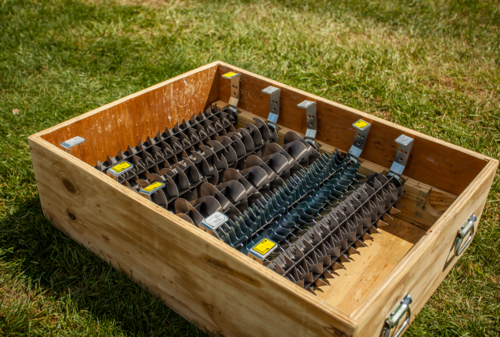

The Greens Care Collection (GCC) consists of three frames that attach directly to your existing triplex greens mower. Each frame has the ability to switch out from 13 different inserts. Each insert represents a different greens maintenance tool – making the GCC an all-inclusive product.



TRANSFORMING TURF MAINTENANCE

With 13 interchangeable inserts, the Greens Care Collection will transform from a de-thatching machine, to a turf sweeper, and then again to a greens aerator or even a turf groomer. Easily switch from 13 different tasks!

The Greens Care Collection provides 12 different greens care cultural practices – why wouldn’t you want one on your course?



What customers are saying:

“Versatility is key on a golf course, so True-Surface® is right up our alley. We primarily use the groomers and verticutters and once in awhile the broom heads. Anyone that knows me knows that I have a passion to renovate turf, so verticutting and grooming are critical practices at Merion. We own 7 aerators, 4 slicers. 3 seeders, but just 1 set of True-Surface® (GCC’s) does all our functions.”

— Matt Schaffer, Superintendent, Merion Golf Club




About True-Surface

A growing idea to a growing company

True-Surface's® story is one of pure American will and opportunity. While working for a local Toro distributor, John Humphrey, CEO, realized golf course greens rolling is a logical agronomic practice that he could sell. In 1984 Humphrey went out on his own under the name of Turfline, Inc., as a turf distributor working out of his home while developing the idea for the world’s first vibratory greens roller that would attach directly to a triplex greens mower.

His hard work soon paid off, and he was awarded the patent for the True-Surface® Vibratory Greens Rollers in 1992. That same year True-Surface® was used in preparation for the PGA tournament held at Bellerive Country Club in St. Louis, Missouri.





Centaur Asia Pacific is the distributor for True-Surface range of products in Hong Kong and Macau.

Updated on: 31 May 2022

Interchangeable Inserts

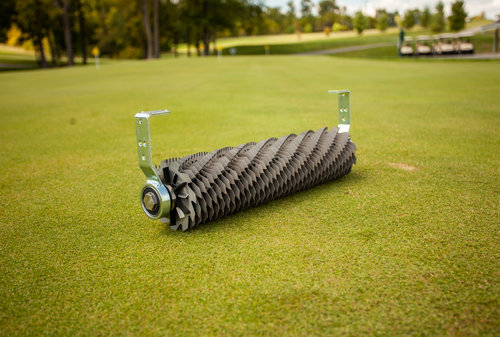

Vacu-Cutter™

The Vacu-Cutter™ insert is the ultimate de-thatching machine that removes and vacuums up 20 times more material than standard OEM verticutters. Its vacuum-power system shoots the material directly into the grass basket without additional clean-up. Three models are available — a standard 45-blade, an aggressive 87-blade, and a less aggressive 32-blade. The 87-blade provides half the spacing as the 45-blade and The 32-blade provides more spacing between each blade, and has a lighter option for verticutting.

Usual Working Depth: 0-1/8” (0-3mm)

Maximum Working Depth: ¼” (6mm)

45-Blade Spacing: 3/8” (10mm)

32-Blade Spacing: 3/5” (15mm)

87-Blade Spacing: 1.89/10” (4.8mm)

Blade Types: steel blades with 11 tungsten carbide tips on each.

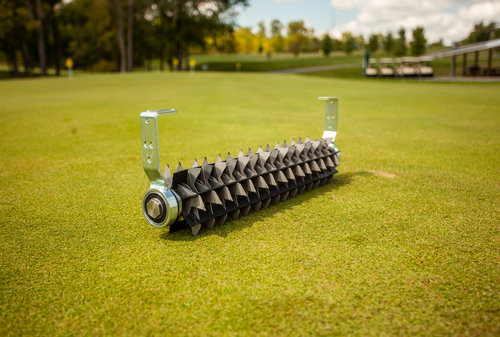

Vacu-Groomer™

Everyone wants a nice even cut when they mow their greens. We suggest using the Vacu-Groomer™ insert to stand up the grass prior to mowing to get the most even cut possible. Additionally, the Vacu-Groomer™ is an effective tool for removing poa annua seedheads.

Usual Working Depth: 0 – 3/32” (0-2mm)

Maximum Working Depth: 3/32” (2mm)

Blade Spacing: 3/8” (10mm)

Blade Type: 45 steel blades with 2 tungsten carbide tips on each. Blade tips are offset so they can cut at ¼” (5mm).

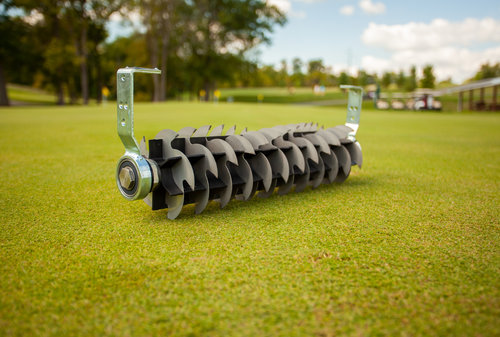

Vacu-Scarifier™

For times when you need to cut in a little deeper you will need to utilize the Vacu-Scarifier™ Insert. The True-Surface® Vacu-Scarifier™ is a useful supplement to regular use of the Vacu-Cutter™. It removes large amounts of thatch and opens the surface for entry of air, sand topdressing, water, and pesticides – not only leaving your greens healthy, but also immediately ready for play.

Usual Working Depth: 5/16 – 3/8” (8-10mm)

Maximum Working Depth: 3/32” (2mm)

Blade Spacing: 1 ½” (40mm)

Blade Type: 12 steel blades with 5 tungsten carbide tips on each.

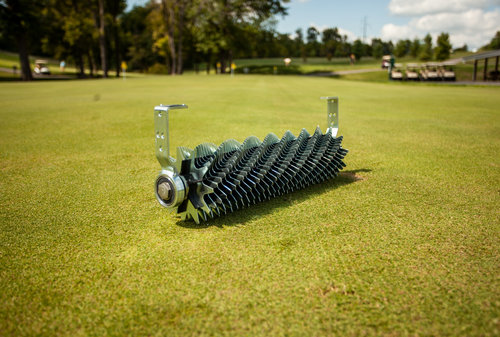

Vertical Mower

The NEWEST addition to the GCC is the Vertical Mower insert! It is equipped with a revolutionary blade that is especially useful with ultradwarf bermuda grasses. The True-Surface® Vertical Mower will thin out horizontal growth by cutting perpendicular to the solid surface. Insert is available with either 23-Blades or 44-Blades.

Usual Working Depth: 0-1/8” (0-3mm)

Maximum Working Depth: ¼” (6mm)

Blade Spacing: 1/2” (13mm)

Blade Type: 11-tip vertical cutting blade. Each Insert consists of 23 or 44 non-carbide tip blades, with a Rockwell C hardness of 55.

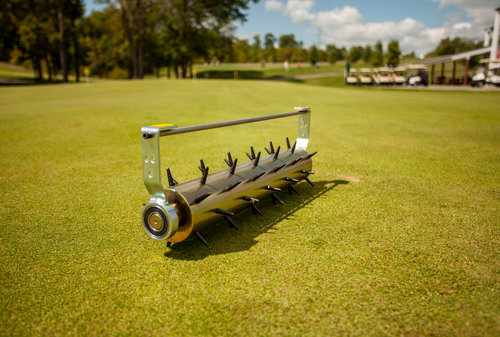

Greens Spiker

Preparation is an important aspect to any turf maintenance program. With the Greens Spiker you are able to prep your greens for overseeding with only two or three passes – saving you time! The Greens Spiker uses its spikes to penetrate through the greens’ surface to allow air and water entry – also making it a great tool for venting during high humidity months!

Usual Working Depth: ¾” (20mm)

Maximum Working Depth: ½-1” (12-25mm) if ground conditions are soft enough

Spike Spacing: 2 3/8” (60mm) producing 344 holes per square yard or 400 holes per square meter

Spike Type: 55 hardened steel spikes 1 ¼” long

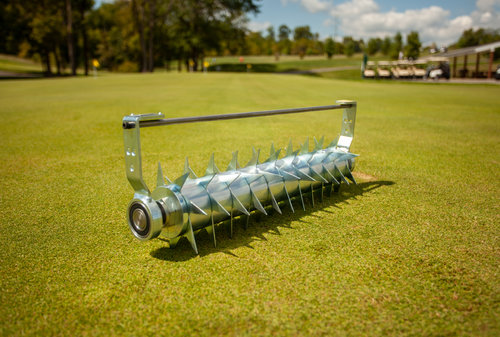

Star Slitter

The Star Slitter is used as a turf aerator tool. Use the Star Slitter Insert for a fast and easy way to aerate the surface of the green without disrupting it. It will leave the surface smooth and ready for play.

Usual Working Depth: ½ – ¾” (13-20mm)

Maximum Working Depth: ¾” (20mm)

Blade Spacing: 1 ½” (40mm)

Blade Type: 11 7-point spring steel blades

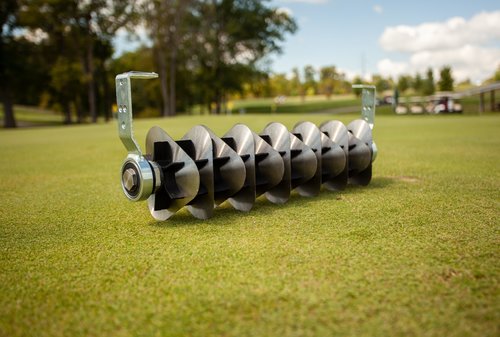

Deep Slicer

Open your greens surface without removing any material! Use the Deep Slicer insert to create deep, continuous slits in the green to allow gas exchange, water penetration and stimulate root growth. The blades are designed to open the turf without removing material – leaving your greens immediately ready for play.

Usual Working Depth: ¾” (20mm)

Maximum Working Depth: ¾” (20mm)

Blade Spacing: 1 ½” (40mm)

Blade Type: 12 round cornered triangular blades with sharpened edges; .03” (.7mm) thick

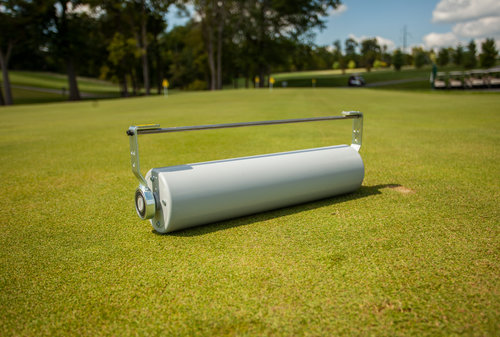

Non-Vibratory Roller

Use the True-Surface® NV Roller insert as a non-vibratory option to greens rolling at a lower cost. Greens rolling will help you gain green speeds, smooth the turf, and raise your mowing height of cut.

Roller Type: Non-vibratory greens roller

Roller Size: 5” (127mm) diameter; 1” (25.4mm) steel wall tube; 3” (76.2mm) diameter removable weight bar

Weight: 74 lbs (33.6 kg) per roller; additional 38 lbs (17.2 kg) removable weight bar

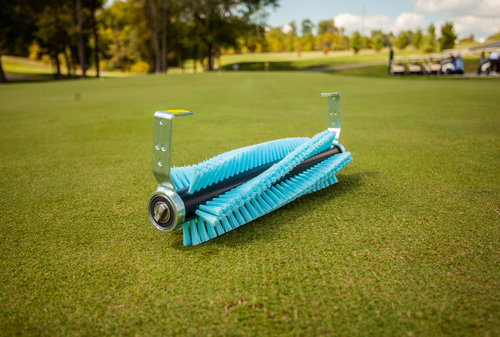

Firm Vacu-Brush™

We like to provide options for our customers, so we now have three types of Vacu-Brushes™ available for different applications. Use our firm brush to groom the turf, collect large debris, and remove poa annua seeds along with excess topdressing. To incorporate sand topdressing, remove your mower’s grass baskets and use the Vacu-Brush™ to work the sand into the canopy.

Usual Working Depth: 0 – Bristles should just lightly skim the top of the turf.

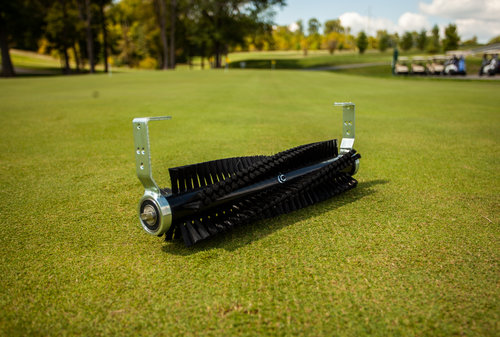

Soft Vacu-Brush™

We like to provide options for our customers, so we now have three types of Vacu-Brushes™ available for different applications. Use the soft or the super soft brushes to remove dew, surface debris, and worm castings.

Usual Working Depth: 0 – Bristles should just lightly skim the top of the turf.

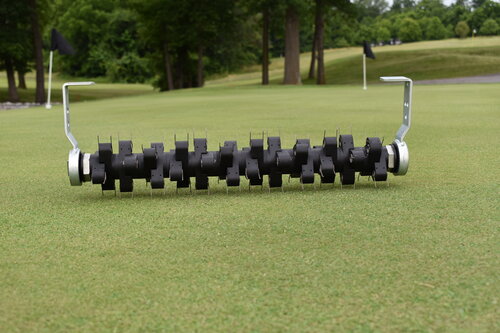

Dethatcher Spring Rake

The Dethatcher Spring Rake is an excellent tool to remove thatch and dead organic material that can result in various diseases that are detrimental to quality turf conditions. The Spring Rake is also excellent for lifting turf to a standing condition for removal when followed by a mower. The Spring Rake is used if you are wanting to remove any debris such as leaves, acorns, pine needles, buckeyes, etc.

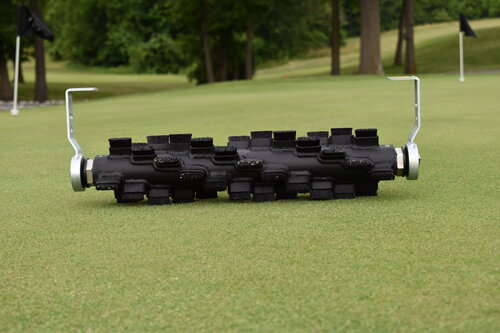

Badger Turf Brush

The Badger Turf Brush is a versatile insert that can be used to serve many functions. Its primary function is used for fraze mowing but its tough construction also makes it perfect for destroying cores and earthworm castings.
