Redexim Verti-Drain 2519

Redexim Verti-Drain 2519

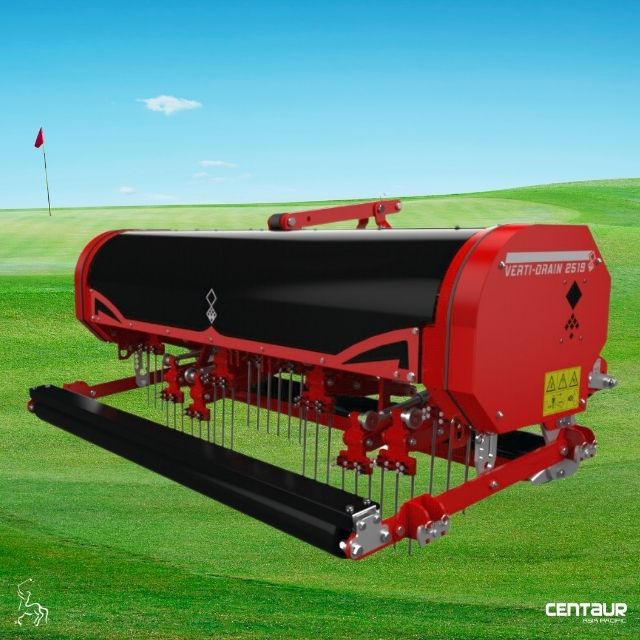

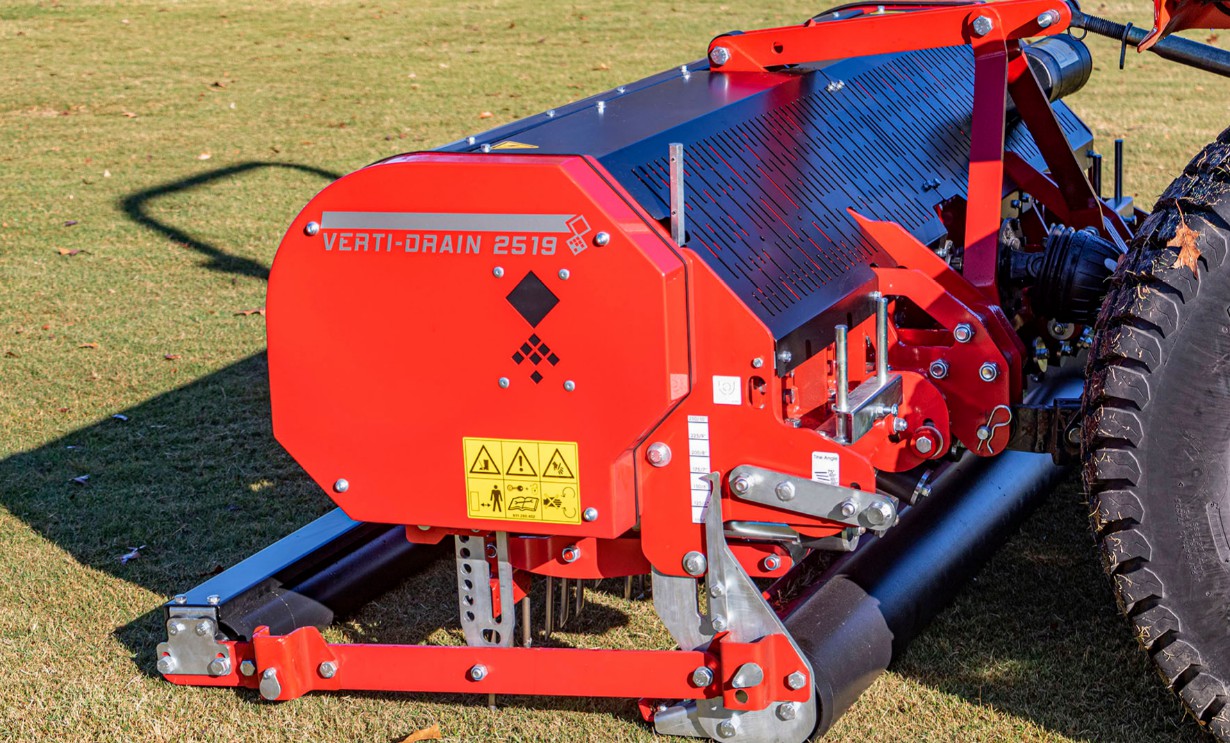

The all-new 2519 Verti-Drain combines robustness with versatility. This high-speed model can achieve a maximum working depth of 10”/250mm with a range of tines, while offering unrivalled productivity; this makes the 2519 the obvious choice for applications where agility and productivity are key.

  • High-speed
  • Suitable for a range of surface types
  • Hollow or solid tines
  • Do you require penetration of heavy soils? If so, consider the 75 or 76 Series Verti-Drain



Standard components

  • Solid Tine 12x250mm (1/2x10") 2381837 x 30
  • Toolbox with combi tool and manual x 1
  • PTO Shaft x 1
  • Storage Legs x 1




Deep-Tine Aeration with Verti-Drain

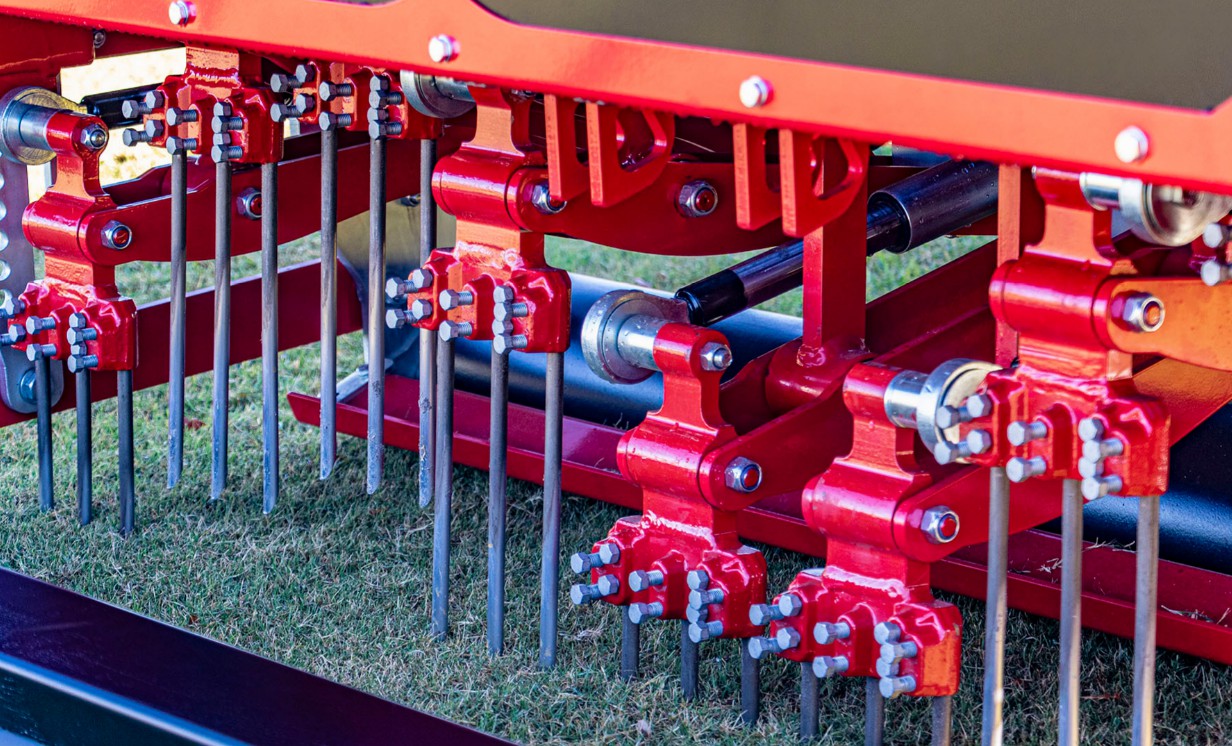

An aeration method uses solid tines to create deep holes into the turf without removing any soil. The Verti-Drain insert a tine that kicks to gently lift and shatter the soil in a uniform manner to further break up compaction and create space in the soil profile for air, water, and grass plant roots.

The world-renowned Verti-Drain aerator was invented by Redexim more than 40 years ago. It has changed the method of soil aeration across the world, becoming the ‘must use’ for turf managers in their battle to aid turf growth in challenging environments.



About Redexim

At Redexim, we believe in developing strong long-term relationships with our customers. Trust and respect are therefore core values, as well as our commitment to guarantee and live up to our value promise. It is our mission to not only meet customer expectations but to exceed them. This has made Redexim, a world leader in turf maintenance equipment.





Centaur Asia Pacific is the distributor for Redexim range of products in Hong Kong, Macau, and Malaysia (Johor).

Updated on: 17 March 2022

Specifications

SKU 111.251.904
Working width (m) 1.95
Working width (inch) 76.7
Max. Working depth (mm) 250
Max. Working depth (inch) 10
Working speed at hole spacing 65 mm 1.79
Working speed at hole spacing 2-1 2 inch (mph) 1.1
Weight (kg) 943
Weight (lbs) 2074
Max diameter solid tine (mm) 18 x 250
Max diameter solid tine (inch) 3/4 x 10
Max diameter hollow tine (mm) 25 x 250
Max diameter hollow tine (inch) 1 x 10
Min. Tractor HP required 60
Max. capacity with spacing 65 mm (m² hr) 3490
Max. capacity with spacing 2-1 2 inch (ft² hr) 37566
Three-point hitch 3-Point CAT 1/2
Rpm Max. 540
Gearbox oil 80W90 - 1.2 (0.31 gallon)
Lubricant EP 2
Dimensions (width mm) 2314
Dimensions (height mm) 963
Dimensions (length mm) 1250
Dimensions (width inch) 91.1
Dimensions (height inch) 37.9
Dimensions (length inch) 49.2
Slip clutch setting 550 Nm (4868 lbf-in)
Min. lifting capacity 610mm behind the lifting eyes (kg) 920
Min. lifting capacity 610mm behind the lifting eyes (lbs) 2028.25



Options

Description Quantity Article number
Windrow Kit for 2519 1 211.251.908
Turf Hold Down Kit for 12mm tines - 2519 1 211.251.902
Turf Hold Down Kit for 18mm tines - 2519 1 211.251.904
Anti-vibration system 22 serie 1 211.700.501
Solid Tine 5x125mm (3/16x5") - Requires Adapter 5mm tines (3/16") 314.205.043 x 30 30 311.105.125
Solid Tine 5x125mm (3/16x5") - Requires MTH Block for (21) tines 5mm (3/16") 314.425.170 x 10 210 311.105.125
Solid Tine 8x150mm (5/16x6") - Requires Adapter 8mm tines (5/16") 314.208.043 x 30 30 311.108.150
