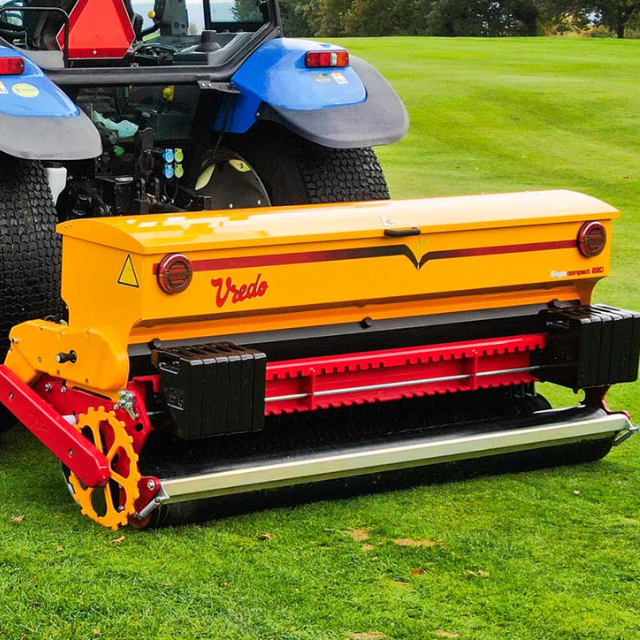

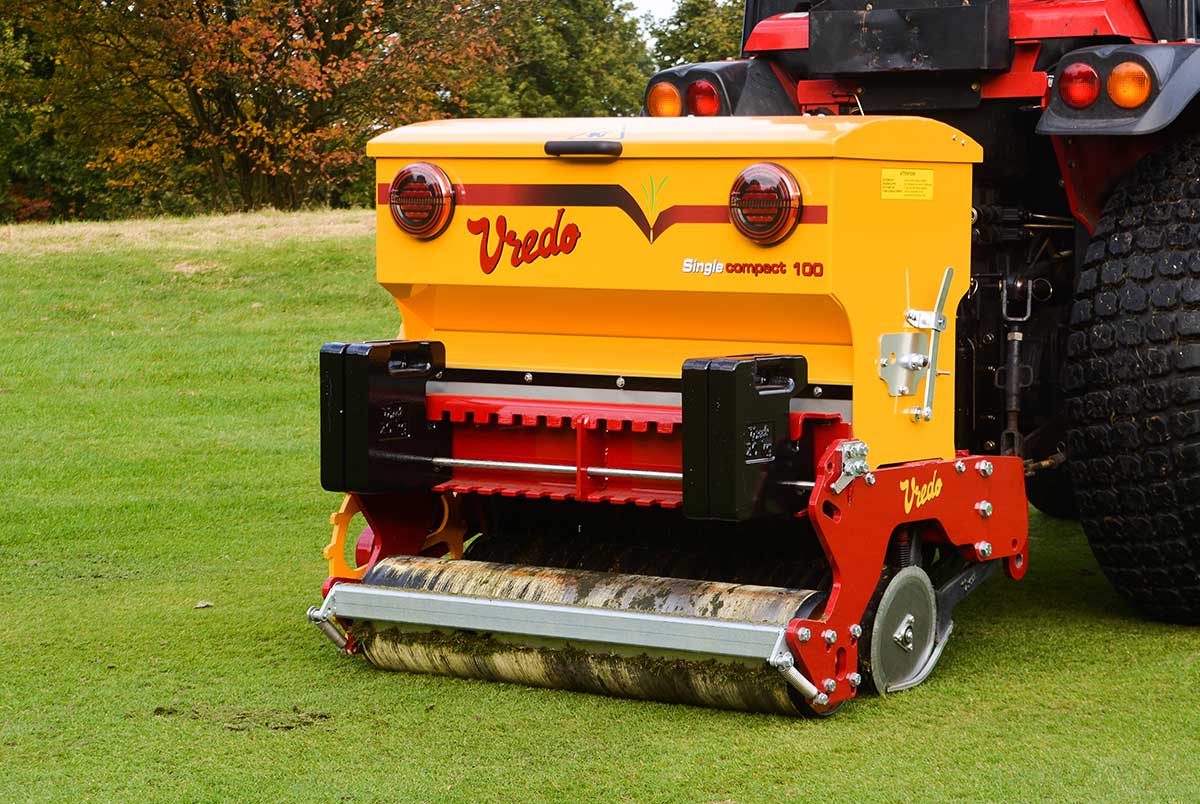

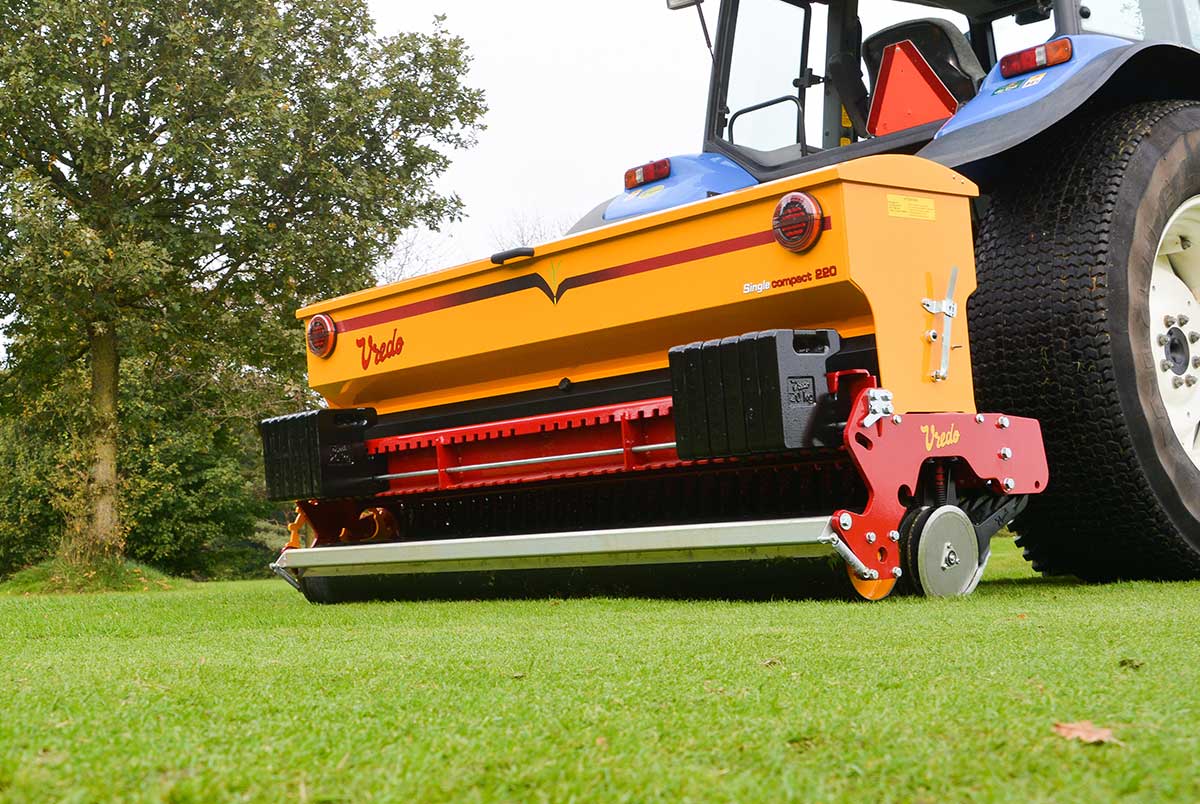

Vredo Single Compact

Vredo Single Compact

Seed is placed in a V-shaped slit directly in contact with the soil for maximum germination rate

The Vredo Single Compact Series is an accurate and efficient range of disc seeders designed for overseeding golf greens and tees, sports pitches and other amenity grass. Seed is placed in a V-shaped slit at a pre-set depth of between 5mm and 25mm deep, directly in contact with the soil for maximum germination rate. The slits are then closed by a compaction roller and a level surface is re-established.

There are 4 different widths available to suit tractor overlap, all 3-point mounted behind compact tractors.

Available Models

  • DZ5 100(T)
  • DZ5 140(T)
  • DZ5 180(T)
  • DZ5 220(T)

Your fields, our passion

Vredo contributes to the sustainability of agriculture, livestock farming, and lawn maintenance, maximizing results through fertilization and seeding solutions. Our self-propelled vehicles, sod fertilizers, and overseeders for both the agricultural sector and green maintenance are renowned for their outstanding performance, durable quality, and effectiveness. Not only operational but also the resulting outcome.

Thanks to optimal technology, manure is injected into the soil with the greatest precision, ensuring optimal seeding and overseeding of pastures, sports fields, golf courses, and playgrounds, with the correct amounts of grass, clover, and herb mixtures. Sustainable, cost-effective, and with maximum yields.

This inspires us every day to collaborate with farmers, contractors, greenkeepers, and landscapers, supporting each other and working together towards a better future for everyone.





Centaur Asia Pacific is the distributor for Campey Turf Care Systems range of products in Hong Kong, Macau, Singapore and Brunei.

Updated on: 23 July 2024

Specifications

Model DZ5 100(T)

GPS working width 94.5cm
Transport width 115cm
Row spacing 0.35cm
Volume of seed hopper 165 litre
Weight 540kg
Recommended 20kg weights 10 (740)
Tractor power 30HP
Depth adjustment Top link / drawbar
Dimensions lxwxh (cm) 123.4 x 115.0 x 108.4
Seed dosage Stepless 3 to 190 kg/ha
Disc diameter Ø 250 mm
Element Progressively sprung 0-20 mm sowing depth
Turf guard Adjustable
Pressure roller Ø 220 mm with self-adjusting scraper
Calibrating Calibration table newly improved calibration tray section



Model DZ5 140(T)

GPS working width 140cm
Transport width 157cm
Row spacing 0.35cm
Volume of seed hopper 235 litre
Weight 693kg
Recommended 20kg weights 14 (973)
Tractor power 30/40HP
Depth adjustment Top link / drawbar
Dimensions lxwxh (cm) 123.4 x 157.0 x 108.4
Seed dosage Stepless 3 to 190 kg/ha
Disc diameter Ø 250 mm
Element Progressively sprung 0-20 mm sowing depth
Turf guard Adjustable
Pressure roller Ø 220 mm with self-adjusting scraper
Calibrating Calibration table newly improved calibration tray section



Model DZ5 180(T)

GPS working width 182cm
Transport width 199cm
Row spacing 0.35cm
Volume of seed hopper 303 litre
Weight 846kg
Recommended 20kg weights 18 (1,206)
Tractor power 40/50HP
Depth adjustment Top link / drawbar
Dimensions lxwxh (cm) 123.4 x 199.0 x 108.4
Seed dosage Stepless 3 to 190 kg/ha
Disc diameter Ø 250 mm
Element Progressively sprung 0-20 mm sowing depth
Turf guard Adjustable
Pressure roller Ø 220 mm with self-adjusting scraper
Calibrating Calibration table newly improved calibration tray section



Model DZ5 220(T)

GPS working width 220cm
Transport width 241cm
Row spacing 0.70cm
Volume of seed hopper 375 litre
Weight 710kg
Recommended 20kg weights 12 (850)
Tractor power 50HP
Depth adjustment Top link / drawbar
Dimensions lxwxh (cm) 105.5 x 241.0 x 108.5
Seed dosage Stepless 3 to 190 kg/ha
Disc diameter Ø 250 mm
Element Progressively sprung 0-20 mm sowing depth
Turf guard Adjustable
Pressure roller Ø 220 mm with self-adjusting scraper
Calibrating Calibration table newly improved calibration tray section
