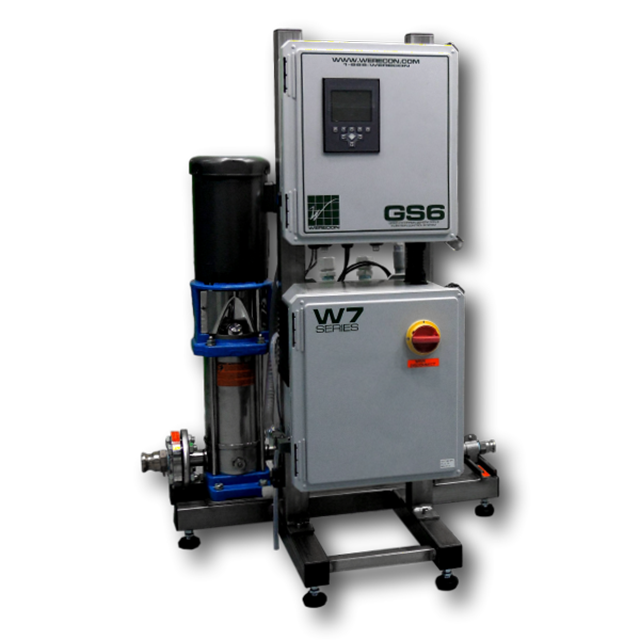

Werecon W7 Acid Injection System

Werecon W7 Acid Injection System

The W7 Series pH systems offer a safe reliable way of adjusting the pH of irrigation water. The systems are available in many different models with or without fertigation capability. With the capability of utilizing virtually any type of pH control agent, including sulfuric, N-phuric, etc., the W7 series offers excellent flexibility. Due to the fact that the concentrated product is never under pressure, the W7 Series has inherently better safety and reliability than competing systems incorporating pressurized injection techniques.



Features

  • Incorporates WERECON Adaptive Auto Adjust™ system for superior accuracy
  • Redundant pH sensors ensure accuracy and reliability
  • Rugged Stainless Steel Chassis

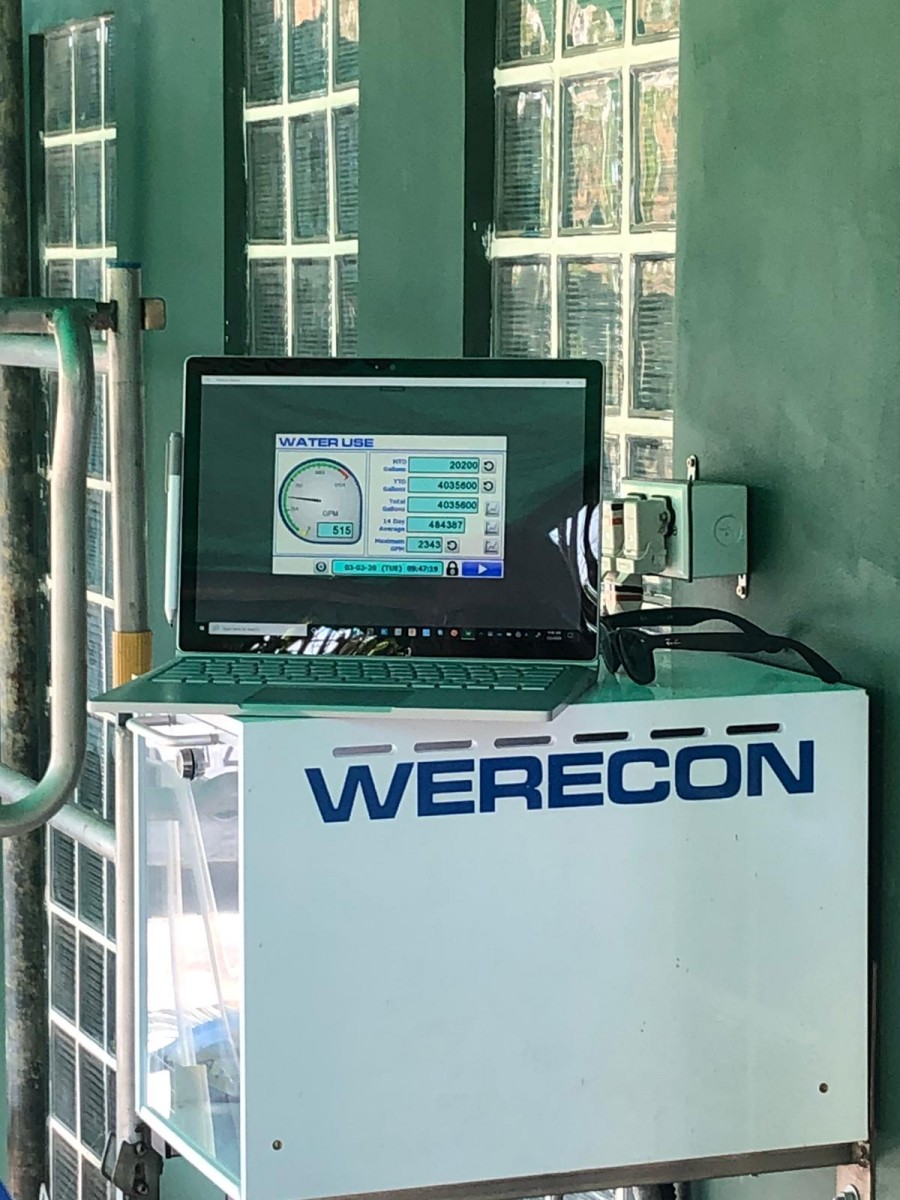

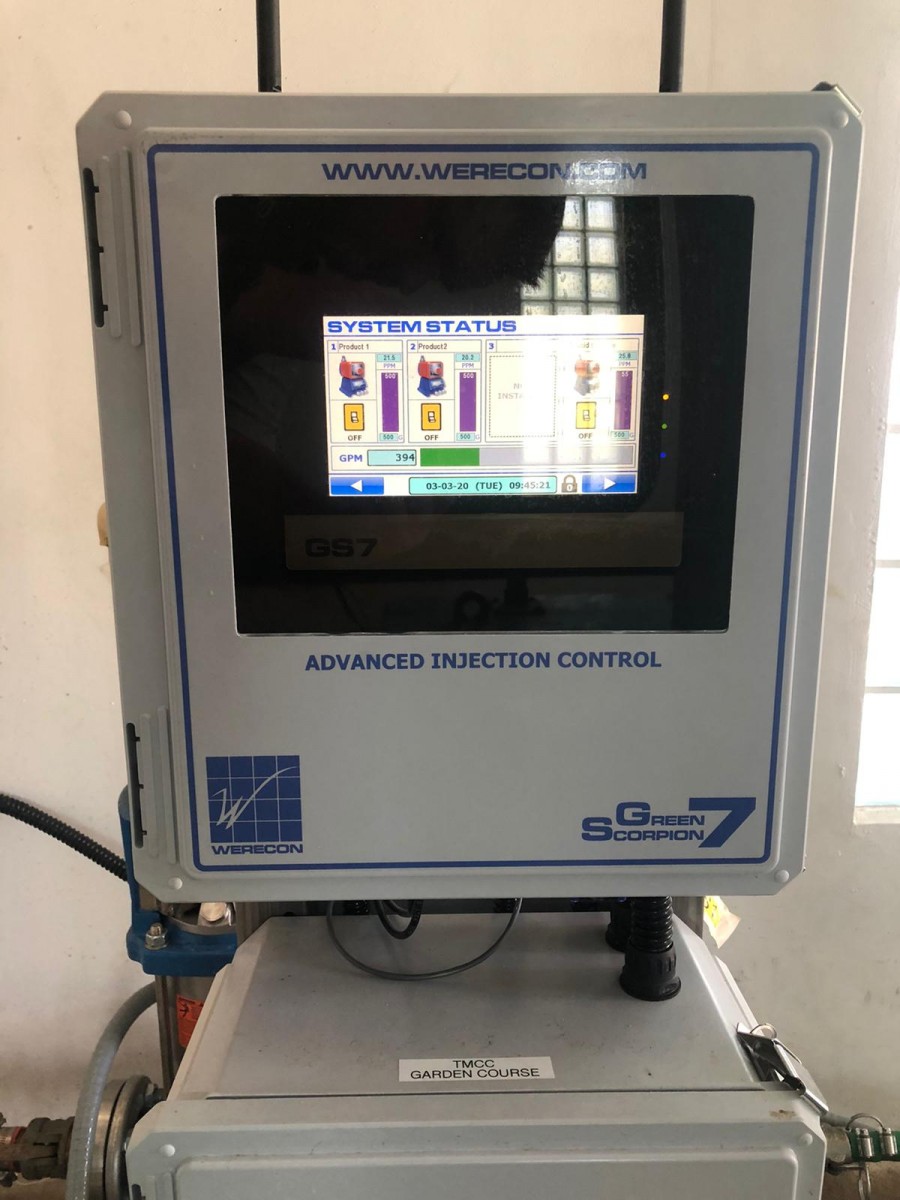

  • Displays Current and Historical pH and Water Flow Data
  • Multiple Mechanical and Electrical Safeties
  • Expandable (More Pumps, PC Control, etc.)
  • Built-In Ethernet Connectivity using our Watcher™ Software




About Werecon

WERECON Inc. was incorporated in 1990 in Scottsdale, AZ. Making us 26 years old this year!

Our primary focus is the manufacture of water conditioning equipment with an emphasis on control systems.
We produce a broad range of products that are designed to meet the water treatment needs of the agricultural, golf/sports turf, nurseries, as well as large residences and residential developments.

Unlike some other companies in our industry, we actually make a large portion of our equipment from scratch.
Operating from our 10,000 square foot facility in Phoenix, we have the capability to manufacture our own electronics, and do our own metal and plastic fabrication.
We also have a complete CNC machine shop.





Centaur Asia Pacific is the distributor for Werecon range of products in Hong Kong, Macau, Singapore, Malaysia, Indonesia, Vietnam, Thailand, China, Guam and other parts of Asia.

Updated on: 3 June 2022

Specifications

Dimensions 36" X 24" X 38"
Input Power  120V 1ø at 20A or 480 3ø at 7A
Electrical Rating Nema 4 for outdoor use
Weight   150 pounds US
Max Pressure 150PSI
Ambient Temperature 120 ºF
Frame Construction 304 Stainless Steel



Materials

Chemical Handling FEP, FPR, Polypropylene, 316SS, PVDF, and XLPE
Water Handling Brass, 304SS, PVC and Synthetic Rubber



Intake 1-1/4” NPT
Discharge 3/4” NPT
Required Flow Sensor Data Industrial Model 220 or Equivalent
